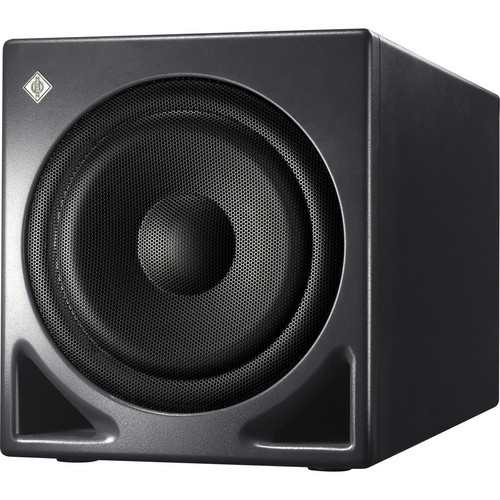

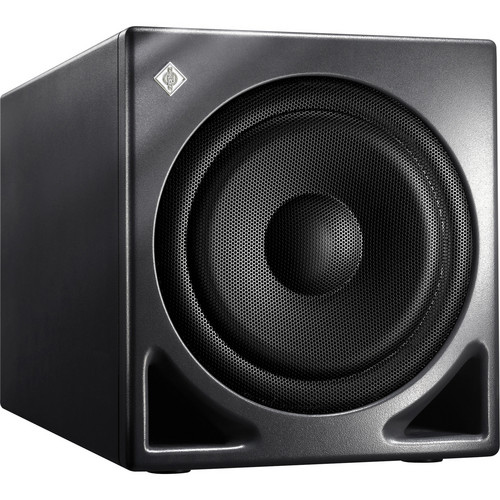

Neumann KH 810 10" Active Studio Subwoofer
Neumann KH 810 10" Active Studio Subwoofer - Image 2
Neumann KH 810 10" Active Studio Subwoofer - Image 3

Neumann KH 810 10″ Active Studio Subwoofer

R67,575.50 (incl. VAT)

Found this product at a lower price?
  Check Stock & Price

Active subwoofer with 7.1 High Definition Bass Management, 10″ driver

SKU: NEM-503951 Categories: ,
Description

The KH 810 10″ Active Studio Subwoofer from Neumann is a professional-grade subwoofer, ideal for tracking, mixing, and mastering applications in music, broadcast, and post production facilities. The sub has a 7.1 HD Bass Manager that is compatible with all standard consumer formats from mono all the way up to more recent 7.1 high-def systems. The subwoofer supports 8 channels of analog audio via XLR connectors for wide compatibility and flexibility in modern studios.

The sub has a sturdy cabinet with a 10″ front-firing woofer. Front-panel bass ports extend low frequency response while reducing compression and turbulence. Because the ports are on the front, you can also position the sub next to a wall or flush mounted into a wall without reducing performance. The sub can be used on its own, daisy-chained with other subwoofers to make a larger system, or used with Neumann full-range monitors for a full multichannel system.

The subwoofer has an integrated 8-channel system volume control and has an RS-232 port for use with an optional remote control. The electronics can be remotely turned on with 2 modes of operation. Using a remote allows centralized system control regardless of the source, and the electronics can be remotely located to reduce cabling. Other features include a bypassable 4th order 80Hz active crossover and 4-mode LFE processing, as well as an electronic limiter to protect the sub’s amplifier and driver.

10″ Driver
The 10″ front-firing driver delivers bass frequencies as low as 18Hz, allowing your main loudspeakers to play at higher volumes with lower distortion. The driver is also magnetically shielded for safe use near video monitors and other electronics
Bass-Reflex Cabinet
The rigid wooden cabinet matches other speakers in the family. It has a tough painted finish and high-density rubber isolation feet, plus excellent self-damping properties that minimize cabinet resonance. The large bass ports on the front extend low frequency response while reducing compression and turbulence. They also allow you to position the sub near a wall or flush mounted in a wall without a loss in performance quality. The final result is tight, articulate, and distortion-free low frequency reproduction, even at high volume levels
7.1 Channel HD Bass Management
The integrated electronics provide bass management that’s compatible with all audio formats ranging from mono to 7.1 surround sound. There is independent control of front and back channels for additional flexibility
4th Order Crossover
The bypassable 4th order 80Hz active crossover provides maximum compatibility with consumer formats and delivers seamless system integration
System Volume Control and Remote Capability
The sub has an 8-channel system volume control and an RS-232 remote port. This lets you use an optional hardware remote for centralized system control, convenient installation, and less cabling. The sub’s electronics can be remotely powered on with 2 modes of operation; either 0V or 12V triggers
LFE Gain and Processing
The KH 810 has 0 and 10dB LFE gain, as well as 4-mode LFE processing that includes LFE to sub and left/right, LFE to sub up to 80Hz, LFE to sub up to 120Hz, and LFE to sub with no filtering for daisy-chaining subwoofers and external signal processors. This guarantees compatibility across all formats and industry standards
8 Analog Channels
The sub supports 8 channels of analog audio via XLR connectors for wide compatibility and flexibility with a variety of systems
Sum Output and Daisy-Chaining
The subwoofer’s sum output allows you to create larger systems and Plane Wave Bass Arrays to improve lateral consistency in a listening area
Acoustic Controls
Various acoustic controls include output level, low cut, parametric EQ, and 45° step phase control with a built-in test signal to match the sub to your work environment and other system components
Low Heat Amplifier
The internal amplifier provides a peak output of 200W and has very low heat dissipation
Electronic Limiter
An integrated electronic limiter protects the amplifier and the driver for long-term reliability
Accessories Available
A variety of remote controls, remote cables, remote electronics kits, and driver cables are available so you can get the most out of the subwoofer. There is also an available flight case for travel

Key Features
  • 7.1 Channel HD Bass Management
  • 10″ Front-Firing Driver
  • 4-Mode LFE Processing
  • 4th Order Crossover
  • 8-Channel System Volume Control
  • Daisy-Chain Capable
  • RS-232 Remote Port
  • Integrated Electronic Limiter
Studio Monitor
Monitor Type Active Subwoofer
Enclosure Bass-Reflex, Shielded
Power Rating 160 W RMS
200 W Peak
Drivers LF Driver: 1 x 10″ / 265 mm Woofer
Performance
Frequency Range 18 Hz to 300 Hz  ± 3 dB (at -3 dB)
Frequency Response 19 Hz to 300 Hz ± 2 dB
Maximum Sound Pressure Level (SPL) 110.7 dB
Dynamic Range 110 dBA
Total Harmonic Distortion (THD) 0.001%
Maximum Input Level 19 dBu
Analog Input Sensitivity/Gain 6  / -8 dBu (Fixed)
Self-Generated Noise Less Than 20 dBA (at 3.93″ / 10 cm)
Protections and Limiting Peak Limiter and Thermal Limiting
CMRR 60 dB
Signal Processing
Filters High-Pass at 6.5 Hz, 12 dB/Octave Slope
Parametric EQ -12 to  4 dB Between 20Hz and 120Hz, Q: 1 to 8
Crossover
Crossover Frequency 80 Hz, 24 dB/Octave Slope

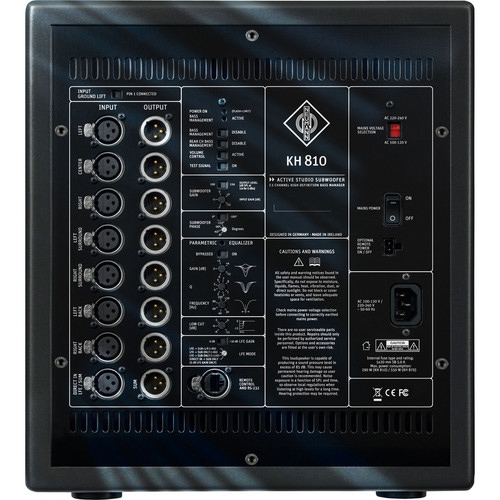

Connectivity
Audio I/O 1 x XLR Analog Input (13 Kilohms)
Power
AC Input Power 100 to 120 VAC, 60 Hz
220 to 240 VAC, 50 Hz
Power Consumption 20 W (Idle)
290 W (Maximum)
General
Enclosure Material Metal Grille, Wood
Dimensions (W x H x D) 13 x 14.2 x 25.4″ / 330 x 360 x 645 mm
Weight 57.2 lb / 26.0 kg
Packaging Info
Package Weight 75.7 lb
Box Dimensions (LxWxH) 30.4 x 20 x 17.9″
Additional information
Weight 25 g
Dimensions 64 × 33 × 36 mm
