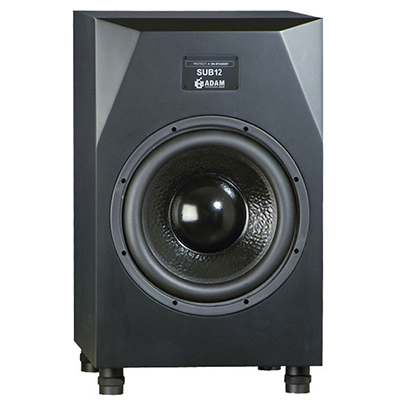

ADAM AUDIO SUB12

The Sub12 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 22 Hz.

A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.

The Sub12 subwoofer provides a precise combination of low cutoff frequency (-3dB at 22Hz) and an undistorted high sound pressure level (115dB SPL at 1m).

FEATURES & BENEFITS

PRODUCT FEATURE	BENEFIT TO THE CUSTOMER
Bass reproduction down to 22 Hz	Ideal addition to nearfield and midfield monitors
Maximum Peak sound pressure in 1 m ‰¥ 115 dB	Powerful, compression-free sound reproduction even at very high sound levels
High efficiency PWM amplifier	Low-distortion amplification at both low and high volume levels
Special 12″ woofer with paper diaphragm	Unrestricted bass reproduction for low-fatigue operation even at high volumes
Easy manual or automatic (de-)activation	If desired, monitoring is possible without the low frequencies
Additional sub output	Allows building a (double) bass array
According to downward working bass reflex tube with generous dimensions and corresponding rounding	Prevention of air turbulence noise
Crossover frequency is selectable between 50 – 150 Hz	Allows optimal adaptation of the total system on the bass performance of the satellites
Connectable high-pass filter for the satellite outputs, which blocks signals below 85 Hz	Dolby ®- Fair reproduction of film sound Discharging the satellites from the low frequencies
2 years warranty with optional extension to 3 years with the registration of the product	Full repair service if required for 5 years

TECHNICAL DATA

SUBWOOFER

Number	1
Basket “˜	12″ (310 mm)
Voice Coil “˜	2″ (50 mm)
Cone Material	Paper

BUILT-IN AMPLIFIERS

Subwoofer	1
Type	PWM
Amp. Power RMS / Music	200 W / 300 W

INPUT CONNECTORS

Analog

XLR / RCA

GENERAL DATA

Frequency Response	22 Hz – 150 Hz
THD > 60 Hz	‰¤1 %
Max. peak SPL at 1 m	‰¥115 dB
Crossover Frequencies	50 – 150 Hz
Input Impedance	10 kOhm
Panel	Rear
Weight	57.3 lb (26 kg)
Height x Width x Depth	23.5″ (600 mm) x 14″ (360 mm) x 17.5″ (450 mm)
Warranty	5 years (2 years warranty plus 3 years optional with product registration)
Delivery contents	Power cord, manual

Additional information

Weight	15 g
Dimensions	65 × 65 × 65 mm
Hybrid Condensers
Brand	ADAM AUDIO
