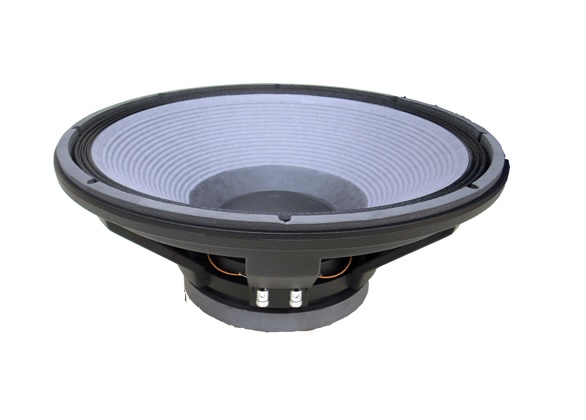

Beyma 15LX60V2 15" 700W AES, 98dB

Beyma 15LX60V2 15″ 700W AES, 98dB

R4,806.00 (incl. VAT)

Found this product at a lower price?
  Check Stock & Price

700W AES, 98dB 2.83V, 4″ VC, 30Hz-1,5KHz, Allu Basket

SKU: SPEBEY024 Categories: ,
Description
  • BEYMA 15LX60v2 SPEAKER HANDLES 700 WATTS AES & 1,400 WATTS PROGRAM POWER HANDLING
  • FEATURES A LARGE 4″ DUO INNER/OUTER VOICE COIL, WATERPROOF FRONT AND BACK CONE & CONEX DOUBLE SPIDER ASSEMBLY
  • MMS TECHNOLOGY FOR BETTER CONTROL AND LOWER DISTORTION
  • STRRONG TIGHT BASS WITH LOUD CLEAR MIDS
  • LARGE XMAX OF 9.0MM FOR TIGHT CLEAN BASS SOUND & A 47MM PEAK TO PEAK EXCURSION
  • GREAT FOR ALL HIGH POWER SUBWOOFER APPLICATIONS INCLUDING CONCERT, ARENA, THEATRES, DANCE CLUBS, SOUND REINFORCEMENT, ETC.

Specifications
Nominal Basket Diameter 15”  / 380mm
Impedance 8 ohms
AES  Power Rating 700 Watts
Program Power   1,400 Watts
Frequency Response 30Hz – 1.5kHz
Sensitivity (1W/1m) 98dB
Voice Coil Diameter 4″ / 100mm
Recom. Enclosure Volume 2.2-6.0 ft3   /   60-170 Liters
Voice Coil Length 20 mm
Air Gap Height 10 mm
X Damage (peak to peak) 47 mm
BL Factor 21.1 N/A
Magnetic Assembly Weight 19.84 lb. / 9 kg.

Mounting Information
Overall Diameter 15.28″ / 388mm
Bolt Circle Diameter 14.56” / 370mm
Baffle Cutout Diameter-
– Front Mount 13.86″ / 352mm
–  Rear Mount 13.98″ / 355mm
No. Of Mounting Holes 8
Volume Displaced By Driver 0.25 ft3   /   7 Liters
Overall Depth 5.7” / 145mm
Net Weight 21.39  lb. / 10.2 kg.
Shipping Weight 22.92 lb. / 11.3 kg.

Materials
Basket Die Cast Aluminum
Cone Waterproof Front & Back Paper
Surround Treated Cloth
Spider Conex
Voice Coil Edgewound Copper Wire
Magnet Ferrite

Thiele-Small Parameters
Resonant Frequency (fs) 42 Hz
Impedance (Re) 5.1  ohms
Coil Inductance (Le) 2.1 mH
Mechanical Q (Qms) 21.23
Electrical Factor (Qes) .45
Total Q (Qts) .44
Comp.  Equivalent  Vol. (Vas) 3.73  ft3 / 105.53 Liters
Voice Coil Overhang (Xmax) 9  mm
Surface Area of Cone (Sd)m2 0.091
Diaphragm Mass (Mms) 147 Grams
Reference Efficiency 1.67%
Displacement Volume (Vd) 812 cm3

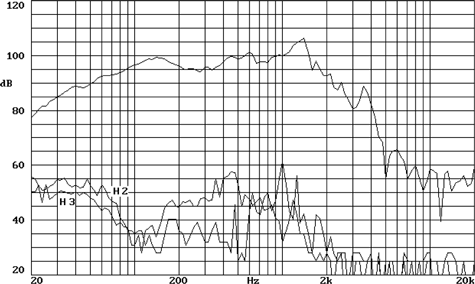

Frequency Response & Distortion Curves

Beyma 15LX60v2 Frequency

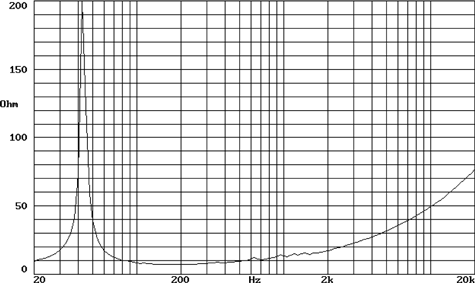

Impedance Curve
Power Compression Losses

Mounting Dimensions

Additional information
Weight 5 g
Dimensions 40 × 40 × 25 mm
Hybrid Condensers
Brand

BEYMA
