Description

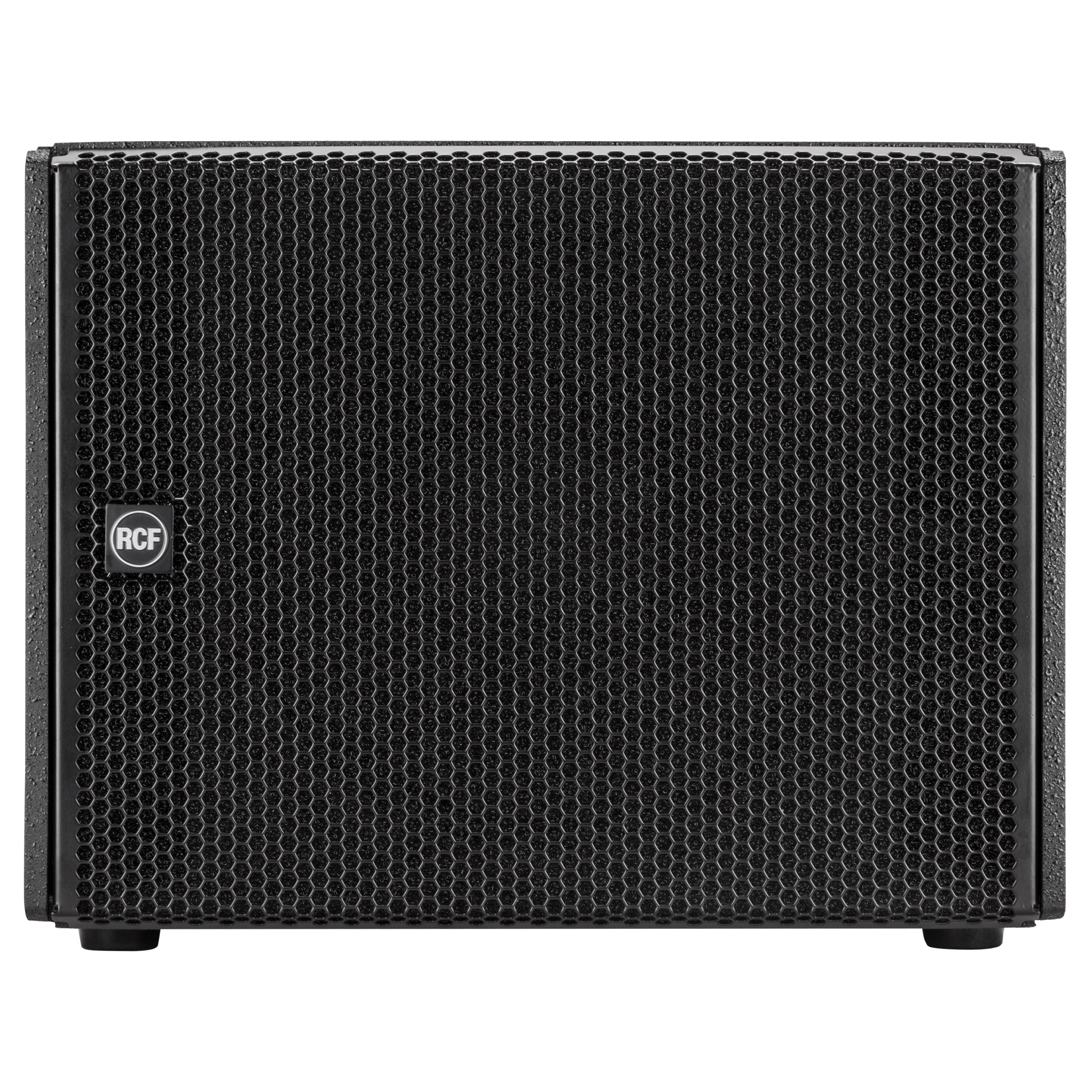

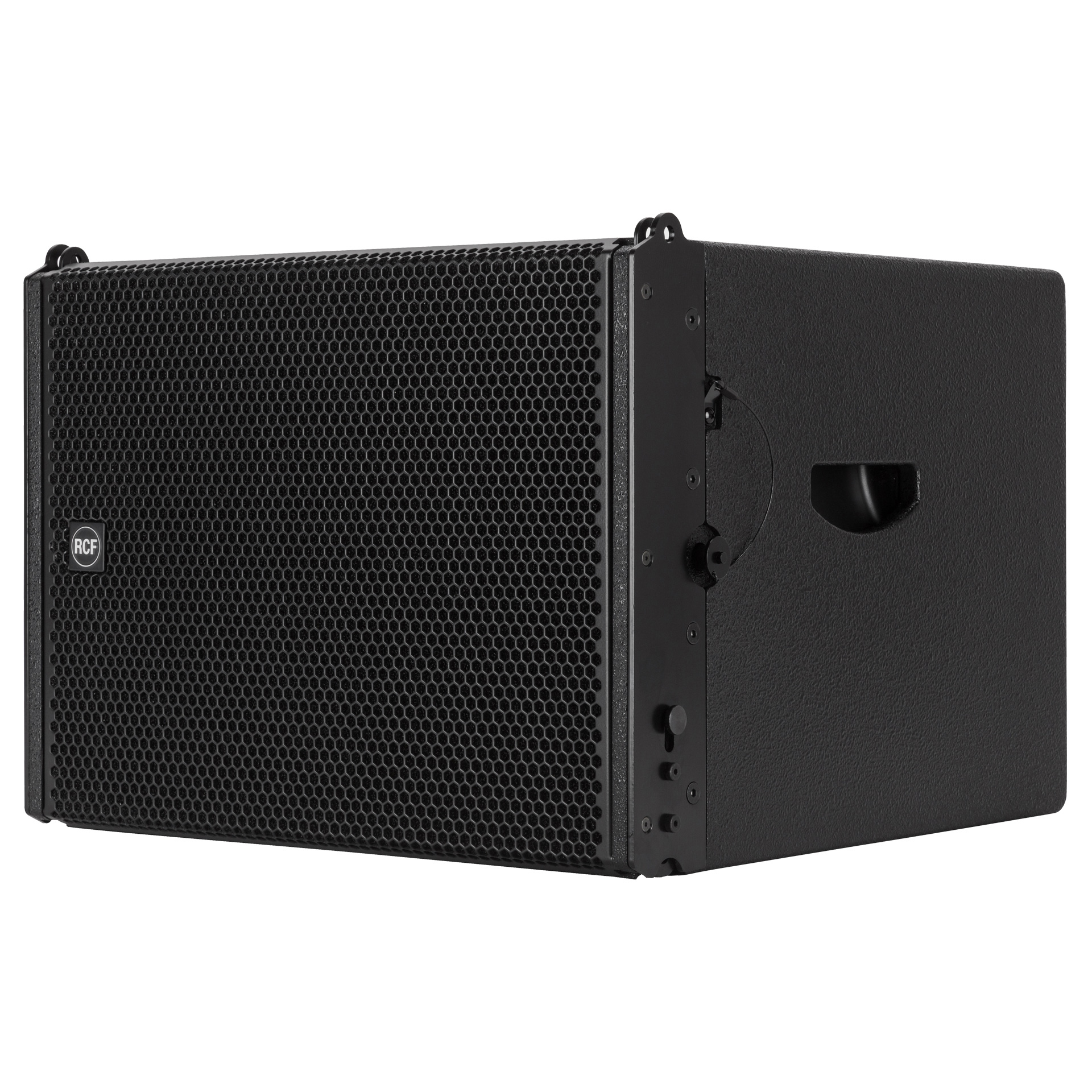

The HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12″ woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.
Features
- 1400 Watt Peak power – 700 Watt RMS.
- 131 dB max SPL.
- 80 Hz – 110 Hz frequency response.
- 1 x 12″ Woofer.
- Stereo crossover.
- Switchable crossover frequencies.
- Designed to compliment the HDL 6-A speaker system.
- Polarity reverse switch.
Specs
Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 120 Hz
MAX SPL @ 1M:
131 dB
Transducers
WOOFER:
12”, 3.0” v.c

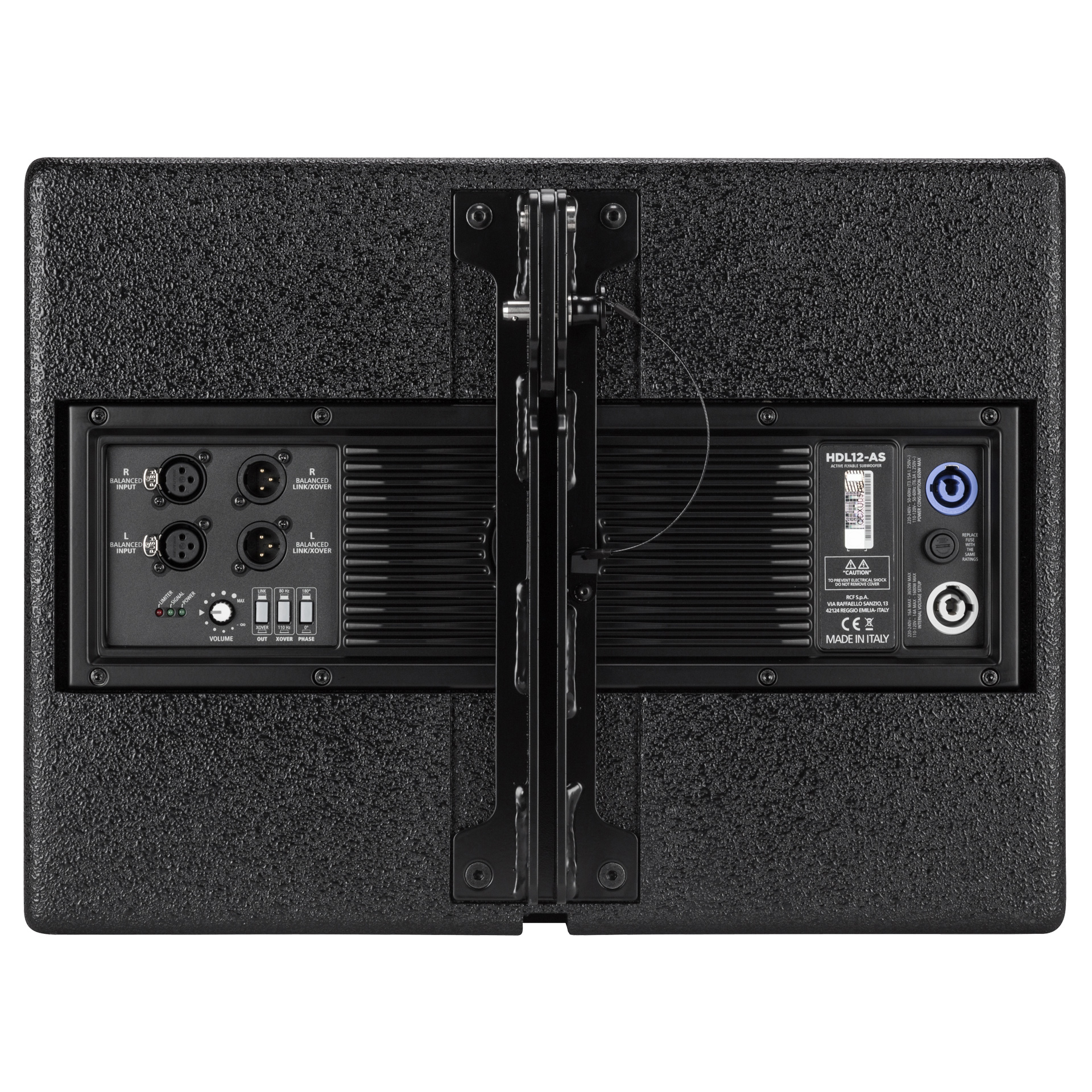

Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/ 4 dBu
Processor section
HI-PASS FREQUENCIES:
40Hz
LOW-PASS FREQUENCIES:
80Hz, 110Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Volume, EQ, Phase, Xover
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS
LOW FREQUENCIES:
1400 W Peak, 700 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Array fittings, pole
HANDLES:
2 side
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
379 mm / 14.92 inches
WIDTH:
470 mm / 18.5 inches
DEPTH:
508 mm / 20 inches
WEIGHT:
25 kg / 55.12 lbs
Shipping informations
PACKAGE HEIGHT:
435 mm / 17.13 inches
PACKAGE WIDTH:
560 mm / 22.05 inches
PACKAGE DEPTH:
520 mm / 20.47 inches
PACKAGE WEIGHT:
28 kg / 61.73 lbs
