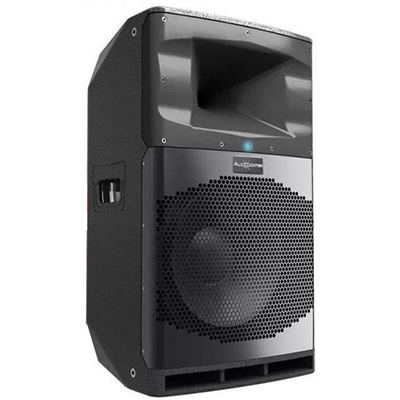

Audiocenter SA315 15" 2-Way with BraincoreTM DSP

Audiocenter SA315 15″ 2-Way with BraincoreTM DSP

Call For Price

Found this product at a lower price?
  Check Stock & Price

15″ Active 2-Way, BraincoreTM DSP 96KHz Sampling / 24bit Precision, Class D Amplification, Mic / Line & Bluetooth Input Source, 3 Band EQ (Bass, Mids & Treble), Audiocenter Loaded, Wooden-Ply Cabinet with Black Finish, Genuine Neutrik, 500W Program, Max SPL (Cal): 131dB Program / 134dB Peak

SKU: Audiocenter SA315 15" 2-Way with BraincoreTM DSP Categories: , Tags: , , , ,
Description

Two combo inputs CH A (1-way XLR and Mono jack 6.35) are available in SA315, which can be switched between line input and microphone input. The audio port CH B(Mono jack 6.35 or a RCA port) is for the other sound resources like MP3, CD player, etc. There is 1-way signal input port for wireless bluetooth in it and the volume is controlled by terminal. The gain of CH A/CH B signal input is controlled by independent knob and 1-way master volume control knob. The four different audio sources can be parallel output with one-way XLR after mixed internally, and then sent to different speakers for sound distribution.

SA315 can be installed by steel wire. It can also be standing by coupling bar or three-feet stand. The double mount is 0 °/10 °adjustable by just pushing the button. Various accessories are offered for SA315 to meet different kinds of installs.

Type   Active DSP-controlled full range loudspeaker
Frequency Response

(-6dB anechoic chamber)

 44Hz-20KHz
Maximum Calculated

SPL/1M

 134dB
LF Driver Customized AUDIOCENTER  ferrite  driver, 3" voice coil
HF Driver Customized AUDIOCENTER ferrite driver, 1" exit, 1.75" voice coil
Horizontal Coverage Angle(Symmetrical) 60 °
Vertical Coverage Angle(Symmetrical) 40 °
AMPLIFIER
Amplifier Circuitry Class D
Power(Peak) 2000W
Frequency Response(1W 8 Ohm 2ch) 20Hz-20KHz( ±0.5dB)
Intermodulation Distortion ＜0.05%
Total Harmonic Distortion ＜0.05%
Protection DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Cooling System Cooling with fans, air convection
DSP
Processor 96KHz signal sampling frequency,24bit precision
Presets Adjustable via the knobs on the back panel
Crossover Controlled by DSP
Output/Input
Signal Input 1 “—NEUTRIK ®  female XLR(Mono jack 6.35), 1 “—Mono jack 6.35,1 “—RCA,1 “—wireless Bluetooth
Signal Output   1 “—NEUTRIK ®  male XLR
Power Input 3 pin plug
Working Voltage 100V-130V/60Hz or 220V-240V/50Hz
Cabinet
Cabinet Material CNC made of excellent wood
Cabinet Color Black and white available, can be customized according to the RAL code
Dimension(W “—H “—D) 439 “—760 “—454mm
Net Weight 27.0Kg

Additional information
Weight 27 g
Dimensions 50 × 80 × 50 mm
Hybrid Condensers
Horn

Black Horn, Red Horn
Brand

AUDIOCENTER
