Description

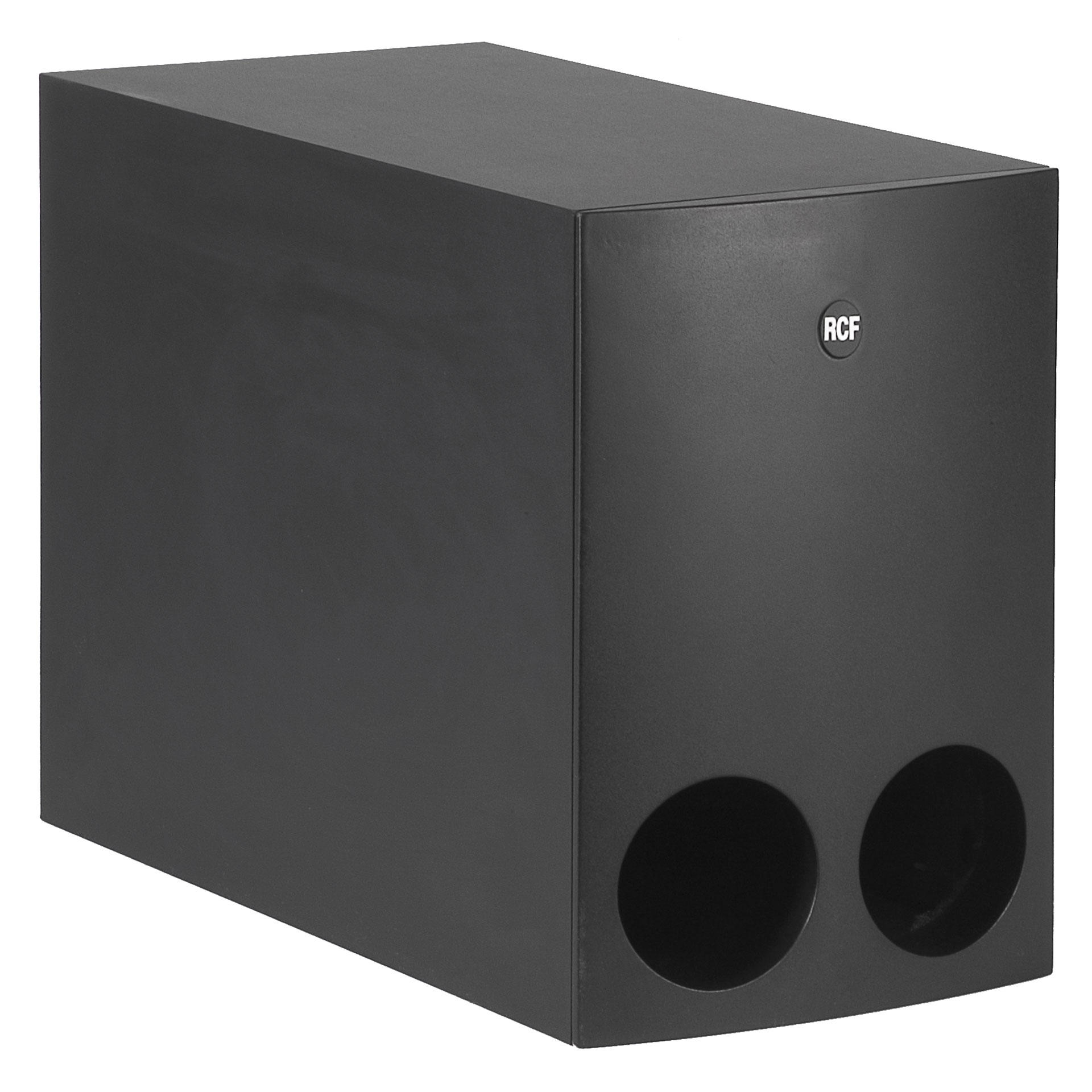

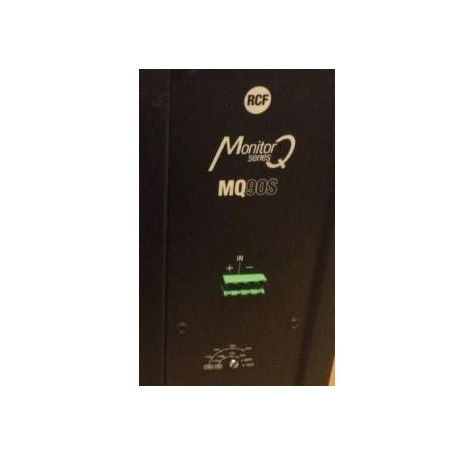

MQ 90S is a compact band-pass 8” subwoofer. It can be connected through a removable Euroblock plug that allows the parallel connection of other loudspeakers. The cabinet material is MDF with a scratch resistant surface. The subwoofer has internally a transformer for constant voltage lines (100 or 70 V). The power selection is made by means of its selector. It is for indoor use only (avoid to use it in very humid places). It should be put on the floor of a room where “satellite” loudspeakers (for mid / high frequencies) are already present. MQ 90S belongs to RCF Monitor Q series.
Features
- 8″ woofer
- Power selectable (100 V): 60 W – 30 W – 15 W – 7.5 W
- 89 dB sensitivity
- Colour black RAL 9005
- PVC covered chipboard and painted front MDF
- 16 Ohm by-pass
Specs
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
70 Hz ÷ 200 Hz
MAX SPL @ 1M:
107 dB
SYSTEM SENSITIVITY:
89 dB
Power section
NOMINAL IMPEDANCE (OHM):
16 ohm
POWER HANDLING:
60 W RMS
PEAK POWER HANDLING:
240 W PEAK
RECOMMENDED AMPLIFIER:
120 W
LOW-PASS FREQUENCIES:
200 Hz
Transducers
WOOFER:
8”
Input/Output section
INPUT CONNECTORS:
Euroblock
OUTPUT CONNECTORS:
Euroblock
POWER SELECTION 1 (100 V):
60 W – 167 ohm
POWER SELECTION 2 (100 V):
30 W – 333 ohm
POWER SELECTION 3 (100 V):
15 W – 667 ohm
POWER SELECTION 4 (100 V):
7.5 W – 1333 ohm
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black – RAL 9005
CABINET/CASE MATERIAL:
MDF
Size
WIDTH:
205 mm / 8.07 inches
DEPTH:
400 mm / 15.75 inches
HEIGHT:
300 mm / 11.81 inches
WEIGHT:
8.06 kg / 17.77 lbs
Shipping informations
PACKAGE WEIGHT:
9.25 kg / 20.39 lbs
PACKAGE DEPTH:
265 mm / 10.43 inches
PACKAGE WIDTH:
370 mm / 14.57 inches
PACKAGE HEIGHT:
470 mm / 18.5 inches
