SMALL YET POWERFUL
Small in size but rich in features, NovoDS4K fits a wealth of top-of-the-line hardware into its compact form factor. NovoDS4K manages to output 4K video and to include HDMI-in, RS232, Power over Ethernet, Wi-Fi, and 1Gbps LAN connectivity from a box that is easily hidden behind any display.
ONLINE CONTENT WIDGETS
Thanks to its robust internet connectivity, NovoDS4K can dynamically display and refresh content relevant to your audience, including weather, social media, and content from YouTube and cloud storage services. Once initially setup, content will automatically cycle in real-time without any manual effort required.
FLEXIBLE, EASY-TO-CREATE LAYOUTS
With its 3.0 update, NovoDS Studio, the completely free software application that powers NovoDS4K, grants users the freedom to arrange their playlists however they like. Via an intuitive drag-and-drop interface, users can display their content at different screen positions for added visual interest.
EASY-TO-USE SOFTWARE
Through an intuitive user-interface, NovoDS4K makes it easy for anyone to manage their digital signage, even those without any programming experience. This immediacy and ease-of-use enables enterprises to take direct control over their signage approach.
CENTRALIZED DEVICE MANAGEMENT
Available for free and compatible with Windows and Mac operating systems, the NovoDS Studio application allows designated administrators to access, update, and operate NovoDS4K units en masse across an entire network.
OPEN SOFTWARE API
To accommodate specialized use cases, Vivitek has made the API for NovoDS Studio open and readily available. This allows users to develop customized AV integrations to better serve the needs of their enterprise.
- Affordable and easy-to-manage digital signage solution
- Equipped with HDMI in/out, Audio in/out and PoE to support the high definition display output up 4K UHD
- 36 build-in drag-and-drop template customization, efficient HTML5 rendering, and highly-intuitive playlist editing for content creation
- Wide change of dynamic content support – text, photos, audio, video, Google Calendar, Twitter, RSS, weather, IP streaming
- Synchronize media content automatically from remote storage
- Network-based management software included – Content update over the wired and wireless networks, Manage and monitor devce playback status from a central computer
- Compatible with Windows, Mac, and Android operating systems
- No annual fee or software subscription costs make for low total cost ownership
SPECS
| Model Name | Novo DS4k |
| Display Resolutions | 1280 x 720 (16:9, 720p), 1920 x 1080 (16:9, 1080p), 3840 x 2160 (16:9, UltraHD 4K) |
| Output Orientation | Portrait, Landscape |
| Storage | Internal: 32 GB (29 GB available for users) External: microSD Card Slot(Up to 32GB), USB Flash Drive |
| Connectivity | WiFi: 802.11 ac (2.4 GHz & 5 GHz) Ethernet: 1Gbps |
| Media Formats Supported | Images: JPEG, PNG, GIF, BMP Video: MP2, MP4, H.264, VC -1 (WMV) Audio: MP3, WMA, AAC |

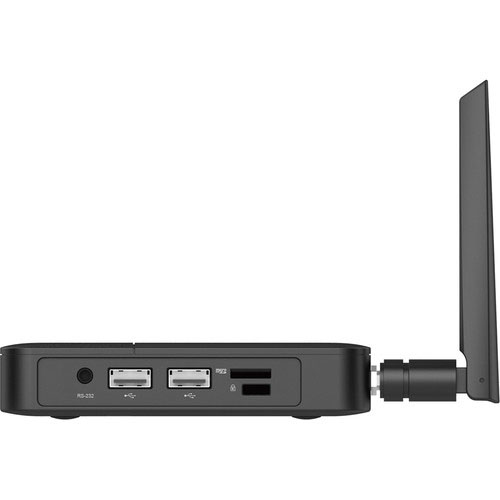

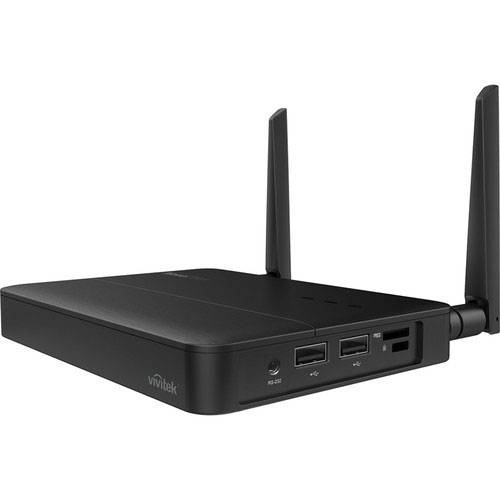

| Input / Output Ports | USB 2.0 Type A (x 2) HDMI Output HDMI Input Audio Output Jack Audio Input Jack microSD Card Slot RJ45 with PoE RS-232 DC Power Jack |
| LED | Green: System Power on Red: System in Standby Blue: Network Activity |
| Button | Reset Button |
| Power Supply | 100 ~ 240 V AC, 50/60 Hz, DC output: 5V@2A Power over Ethernet (IEEE 802.3af standard) |
| Power Consumption | < 10W |
| Accessories | AC-DC Power Adapter HDMI Cable Power Cable Mounting Bracket |
| Operating Systems Supported | Windows ® 7.0 , Mac ® 10.7 |
| Security Solutions | Kensington ® Security Slot |
| Weight | 253g (0.56 lbs) |
| Dimensions (L x W x H) | 152 x 113 x 22.5 mm; 6.0" x 4.4" x 0.89" |
