Description

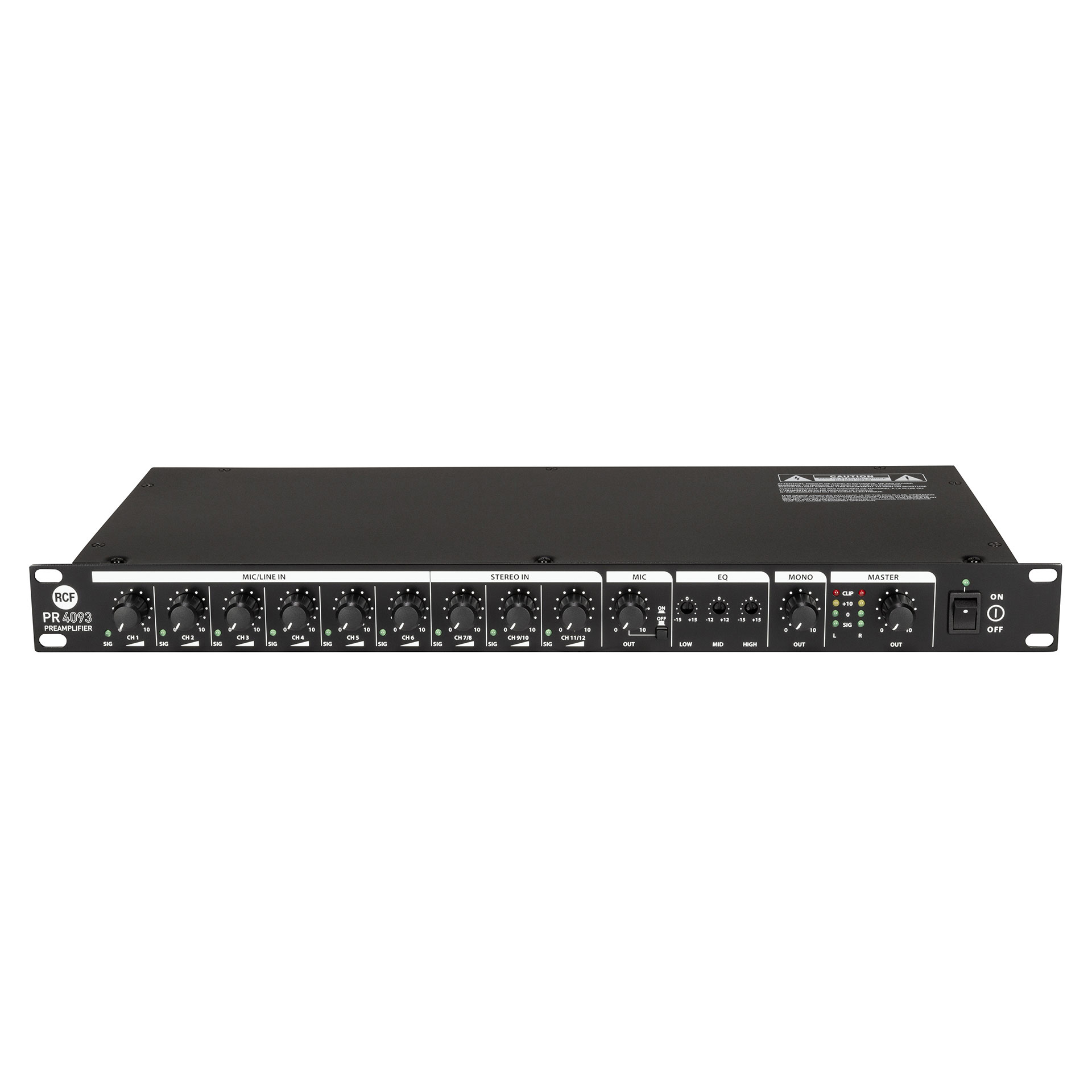

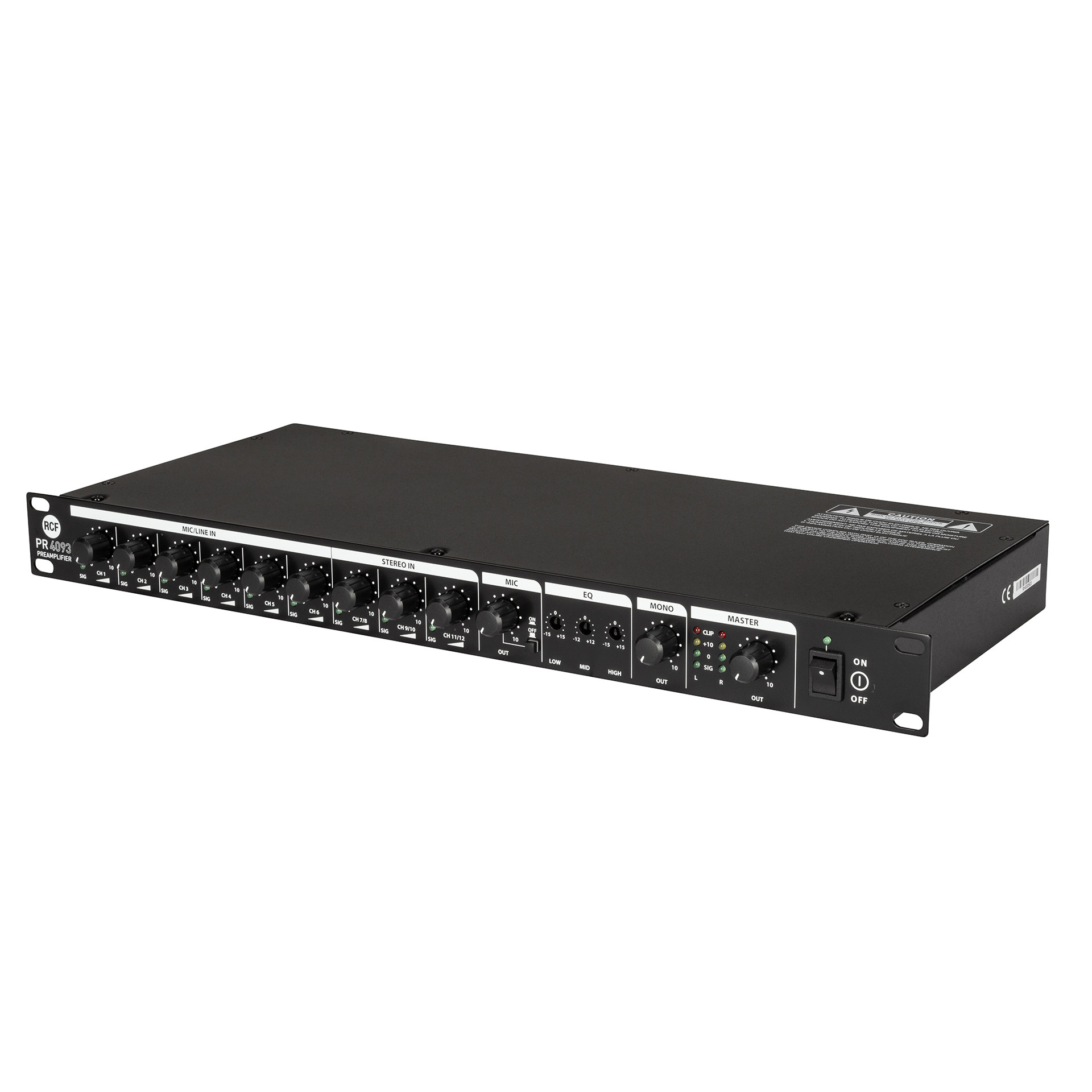

PR 4093 has been designed to provide a flexible solution for paging and music application in PA systems. It offers 6 balanced inputs mic/line with PHANTOM facility, the first of them with priority triggered by VOX circuit. In addition, 3 stereo input on RCA connectors are available. Outputs offer different functionalities, included tone control on front panel, dedicated mixing of inputs 1-6 e connection to recording devices.
Features
- 6BALANCED XLR INPUTS WITH MIC/LINE SENSIBILITY AND SELECTABLE PHANTOM POWER
-
3 STEREO INPUTS ON RCA CONNECTORS
-
SIGNAL PRESENCE LED FOR EACH INPUT
-
PRIORITY FUNCTION ON INPUT 1, ACTIVATABLE THROUGH VOX CIRCUIT
Specs
Audio performance
CROSSTALK:
<-68 dB dB
DISTORTION (THD N) @ 1 KHZ NOMINAL POWER:
<0.03 %%
FREQUENCY RESPONSE (-3DB):
20 Hz ÷ 22 kHz
Input section
TOTAL NUMBER OF INPUTS:
9
BALANCED:
6
UNBALANCED:
3
MONO:
6
STEREO:
3
LINE INPUTS:
3
LINE CONNECTORS:
RCA
MIC LINE INPUTS:
6
MIC LINE CONNECTORS:
XLR
MIC LINE PHANTOM:
18 V DC – 21 V DC
VOX:
Yes

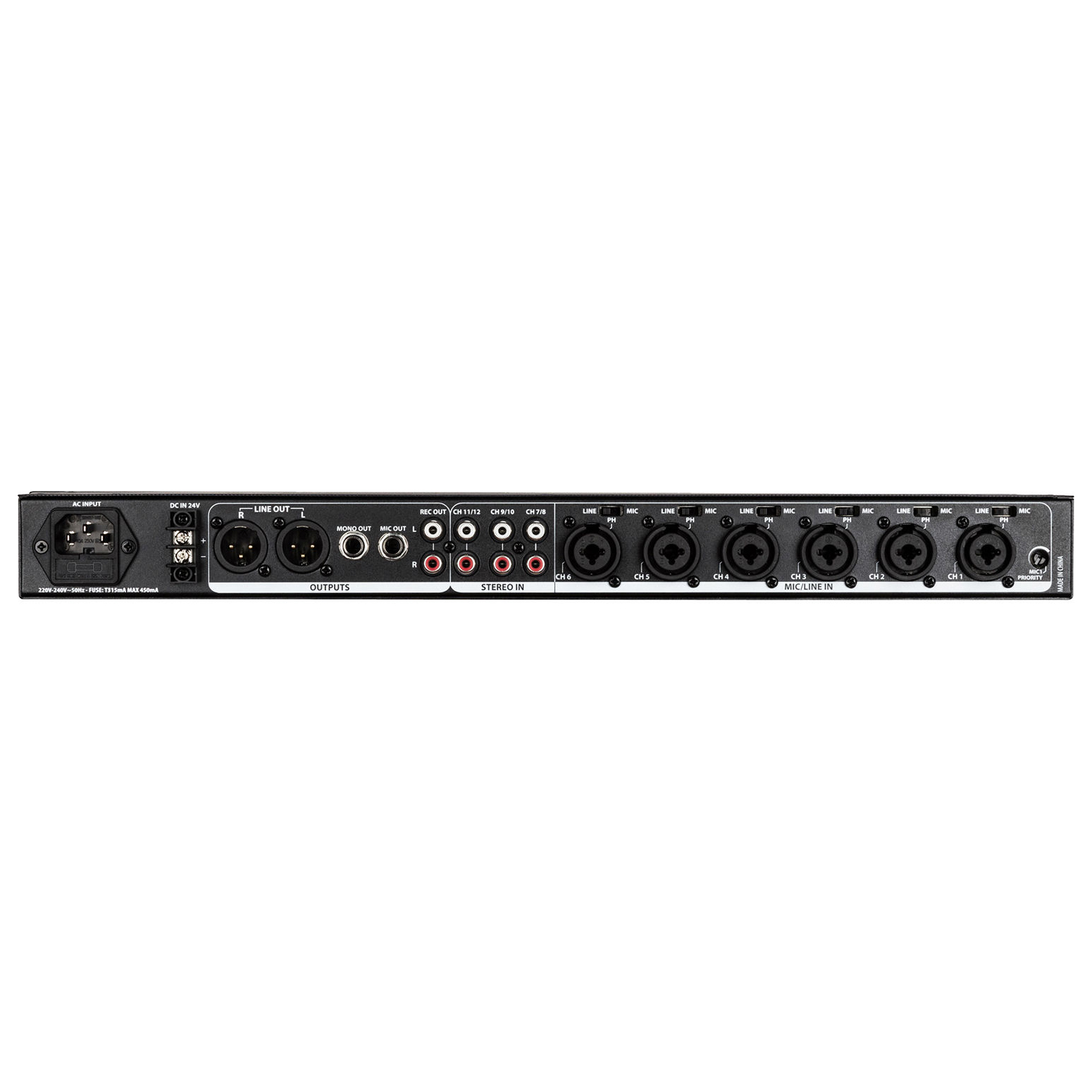

Output section
SIGNAL OUTPUT NUMBER:
3
SIGNAL OUTPUT CONNECTORS:
JACK, RCA, XLR
Processing
TONE CONTROLS:
Yes
Controls
CONFIGURATION:
Front panel
Protections
COOLING:
Convection
Power requirement
OPERATING VOLTAGE:
220-240/115 V~ 50/60HzV ~ Hz
VOLTAGE SELECTION:
Internal
DC POWER:
Yes
DC POWER VALUE:
24 V
POWER CONSUMPTION (W):
18 W
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal
COLOR:
Black
RACK MOUNTING:
19″, 1U
Size
DEPTH:
195 mm / 7.68 inches
HEIGHT:
44 mm / 1.73 inches
WEIGHT:
2.8 kg / 6.17 lbs
WIDTH:
483 mm / 19.02 inches
Shipping informations
PACKAGE DEPTH:
265 mm / 10.43 inches
PACKAGE HEIGHT:
95 mm / 3.74 inches
PACKAGE WEIGHT:
3.6 kg / 7.94 lbs
PACKAGE WIDTH:
540 mm / 21.26 inches
