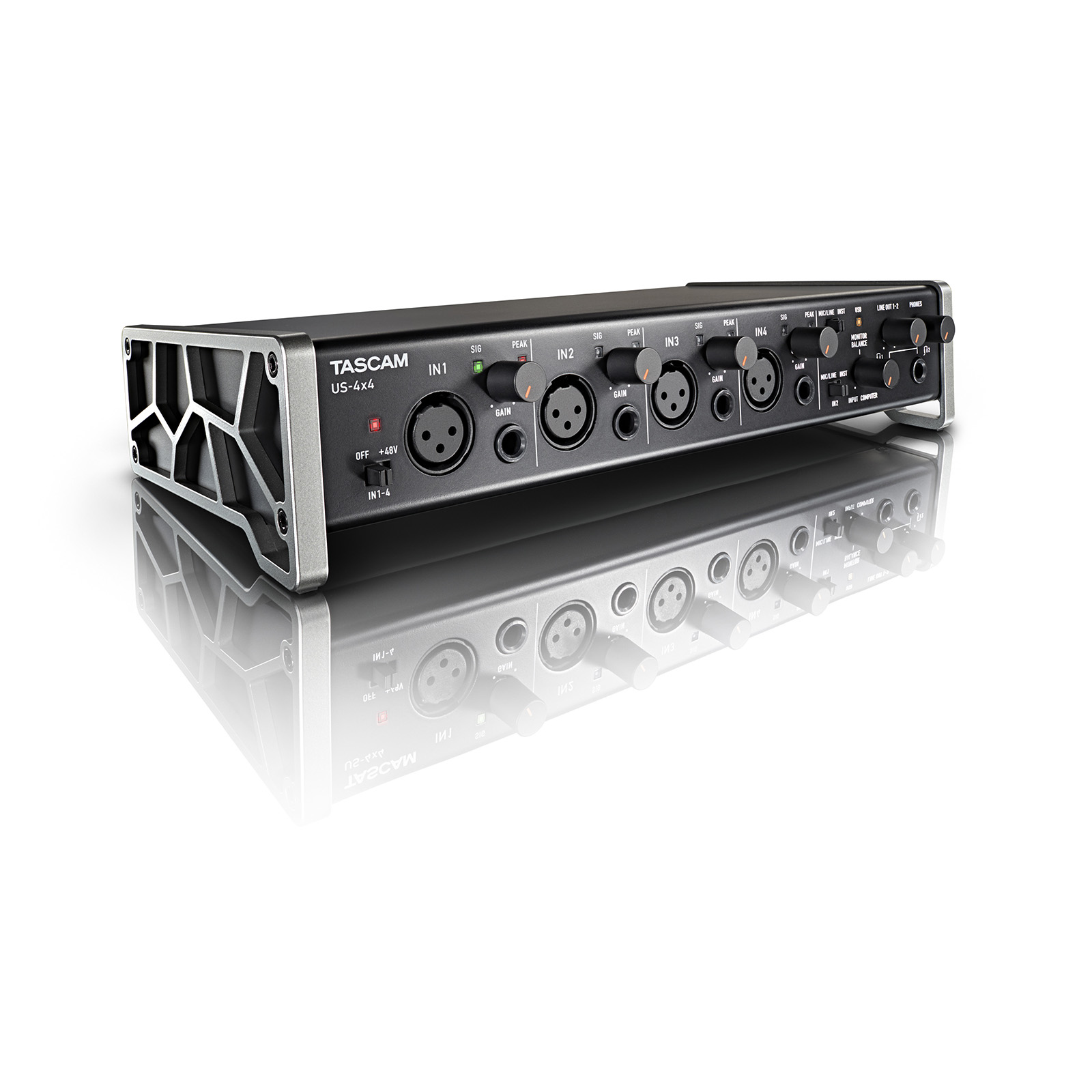

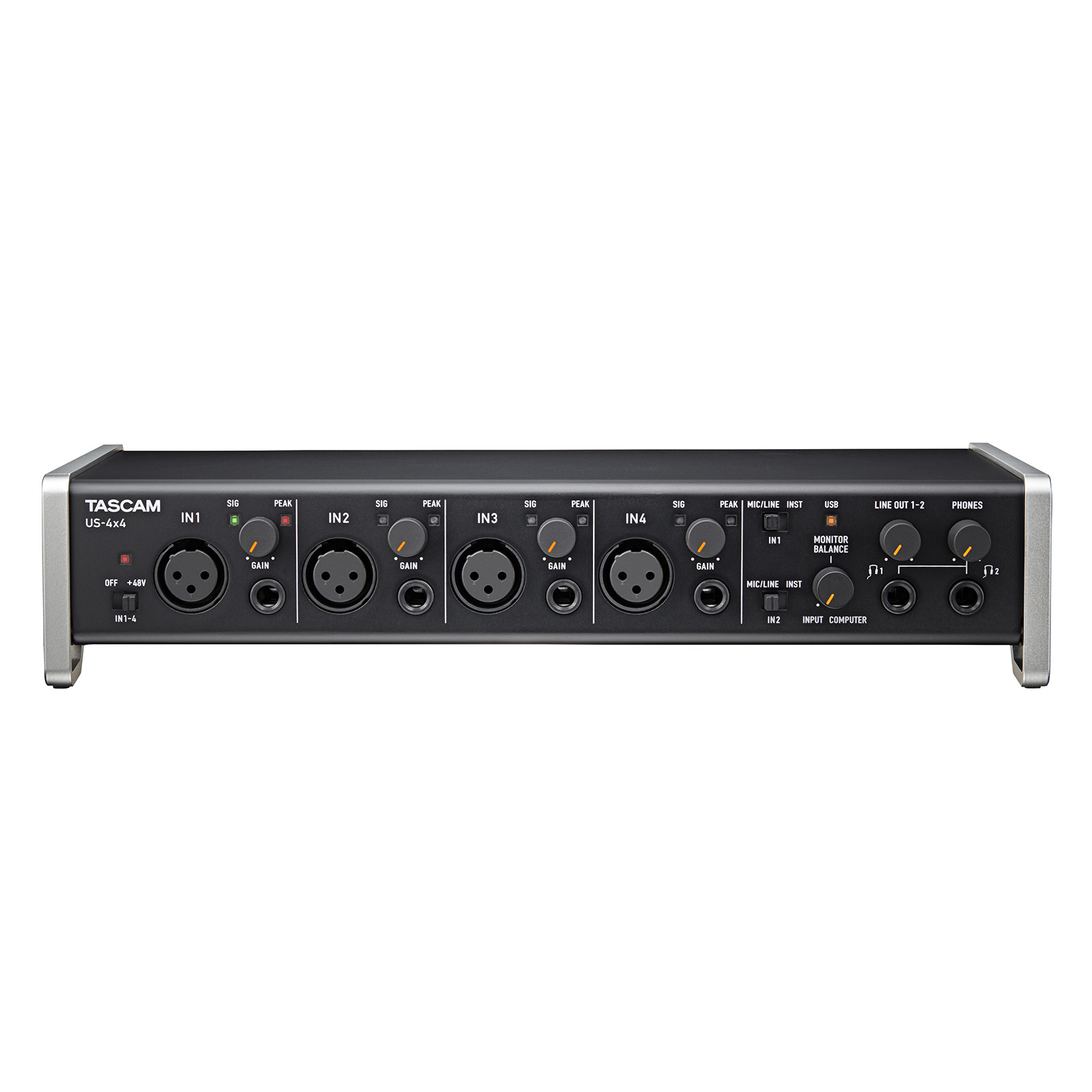

TASCAM’s US-4×4 combines great audio quality and ergonomic design for a powerful 4-in/4-out USB 2 audio interface.
Four of TASCAM’s Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source.
Equipped with Ultra-HDDA mic preamps that can input any sound source at a high sound quality
The main target customers for the US-4×4 is those, interested in music production, and especially beginners. Development was undertaken to deliver devices that are easy to use and understand, enabling users to simply connect them and immediately enjoy high-sound quality recording.
For mic preamps – a key determinant of sound quality – Ultra-HDDA mic preamps that achieve a stunning EIN rating of -125dBu have been installed. This was a result of careful consideration of user-friendliness when connecting the device with a condenser mic, as well as for dynamic microphones. As a result, the devices can be used in a wide range of applications – from vocal recording to stereo recording of piano and acoustic guitar. The eye-catching innovative design was the brainchild of a prominent German designer that has worked on numerous music production devices. The slightly angular design provides users with desktop recording that’s free from hassle.
Driver and software with easy to use simple settings
Driver software installation is something that every user has to contend with when they start using a USB audio interface for the first time. In order to enable users to start their music production smoothly, the designated driver has been newly designed. This driver software had all complex functions removing, allowing anyone to easily install and use it.
Compatibility with most major DAW software has already been confirmed, granting users the option of using the device in combination with DAW system of their choice. In addition, the US-4×4 supports recording using iPad or other iOS devices that have been popular within recent years. Using an Apple-manufactured lightning-USB camera adapter will allow usage of the US-4×4 as an audio interface for iPads.
Enjoy professional multi-recording with the US-4×4
A USB 2.0 connection is used for connection to computers so that beginners to DAW recording can use the US-4×4 with ease. The 96kHz format being supported means that users will be able to use the US-4×4 without needing high-spec devices. The US-4×4, alternatively, supports multi-mic recording with its four mic preamps. Select the optimal device that matches your musicality and future production styles.
Features at a glance
Functions common to both the US-4×4 and US-2×2
- Ultra-HDDA (High Definition Discrete Architecture) mic preamps with -125dBu EIN
- NE5532 op-amps used at the audio input and output stages
- Up to 96kHz/24-bit recording
- Support for Windows and Mac OS X operating systems
- USB 2.0 computer connection
- Connect with iPads and other iOS devices
- 48V phantom power for all inputs
- Two switchable high-impedance inputs
- Microphone preamp gain range of 57 dB
- Direct monitoring function for zero-latency monitoring
- Tough all-metal casing for durability
- Angled design provides excellent usability on a desktop
- Balanced analog TRS output jacks suitable for connection to powered monitors
- Standard TRS headphones output jack
- Separate controls for line and headphones output volumes
- MIDI input and output
- Output sources can be selected in the setting panel
- Input sound monitoring can be set to stereo or mono
- Input muting function eliminates noise from unused inputs
- USB class compliant 2.0 support
- License cards included for SONAR X3 LE/Ableton Live Lite 9
- Confirmed operation with major DAW software (SONAR, ProTools, Cubase, Live, Studio One, Garage Band?
Unique features for the US-4×4
- Four Ultra-HDDA mic preamplifiers
- Four XLR or TRS (MIC/LINE) inputs with full 48V phantom power
- Four TRS analog balanced outputs
- Two headphone outputs – each with 45mW/ch output power
- Dedicated AC adapter is included
Spec description
| US-4×4 | US-2×2 | |
| Sampling frequency | 44.1k/48k/88.2k/96k Hz | |
| Quantization bit rate | 16/24-bit | |
| Analog audio inputs | ||
| MIC IN | IN 1-4 | IN 1-2 |
| Connector | XLR-3-31 (1: GND, 2: HOT, 3: COLD), BALANCED | |
| Input impedance | 2.2k Ohm | |
| Nominal input level | ||
| GAIN: MAX | -65dBu (0.0004Vrms) | |
| GAIN: MIN | -8dBu (0.3090Vrms) | |
| Maximum input level (GAIN: MIN ) |
8dBu (1.9467Vrms) | |
| Gain | 57dB | |
| INST IN | IN 1-2 | IN 1-2 |
| Connector | 1/4″ (6.3mm) TS-jack (T: HOT, S: GND), UNBALANCED (when set to “INST” at MIC/LINE.INST switch) |
|
| Input impedance | 1M Ohm | |
| Nominal input level | ||
| GAIN: MAX | -63dBV (0.0007Vrms) | |
| GAIN: MIN | -6dBV (0.5015Vrms) | |
| Maximum input level (GAIN: MIN ) |
10dBV (3.162Vrms) | |
| Gain | 57dB | |
| LINE IN | IN 1-4 | IN 1-2 |
| Connector | 1/4″ (6.3mm) TRS-jack (T: HOT, R: COLD, S: GND), BALANCED (when set to “MIC/LINE” at MIC/LINE.INST switch) |
|
| Input impedance | 10k Ohm | |
| Nominal input level | ||
| GAIN: MAX | -53dBu (0.0017Vrms) | |
| GAIN: MIN | 4dBu (1.228Vrms) | |
| Maximum input level (GAIN: MIN ) |
20dBu (7.75Vrms) | |
| Gain | 57dB | |
| Analog audio outputs | ||
| LINE OUT | ||
| Connector | 1/4″ (6.3mm) TRS-jack (T: HOT, R: COLD, S: GND), BALANCED | |
| Output impedance | 110 Ohm | |
| Nominal output level | 4dBu (1.273Vrms) | |
| Maximum output level | 20dBu (7.75Vrms) | |
| PHONES | ||
| Connector | 1/4″ (6.3mm) stereo phone jack | |
| Maximum output level | 45mW 45mW or more (THD N 0.1% or less, 32 Ohm loaded) |
18mW 18mW or more (THD N 0.1% or less, 32 Ohm loaded) |
| MIDI IN / OUTÂ | ||
| Connector | DIN 5-pin | |
| Format | Standard MIDI format | |
| USB | ||
| Connector | USB B type 4-pin | |
| Format | USB2.0 HIGH SPEED | |
| Power | ||
| when connected PC | Dedicated AC adapter (GPE248-120200-Z, included) |
USB bus powered |
| when connected iOS | AC Adapter (TASCAM PS-P520, sold separately) |
|
| Power consumption | 5W | 2.5W |
| Dimensions (W×H×D) | 11.62″ × 2.56″ × 6.3″ 296 × 65 × 160 mm |
7.32″ ×2.56″ × 6.3″ 186 × 65 × 160 mm |
| Weight | 3.53lbs. / 1.6kg | 2.43 lbs. / 1.1 kg |
| Operating temperature | 41?F to 95?F / 5?C to 35?C | |
Bundled software |
Cubase LE | |
| Accessories | AC adapter(GPE248-120200-Z), USB cable, User’s manual, warranty card | USB cable, User’s manual, warranty card |
Audio performance
| Frequency response | |
| LINE OUT(BALANCED) | |
| 44.1k/48k Hz | 20Hz to 20kHz, 0dB/-0.1dB |
| 88.2k/96k Hz | 20Hz to 40kHz, 0dB/-0.2dB |
| PHONES | |
| 44.1k/48k Hz | 20Hz to 20kHz, 0dB/-0.5dB |
| 88.2k/96k Hz | 20Hz to 40kHz, 0dB/-2dB |
| THD | 0.003% or less |
| S/N ratio | 101dB or more |
| Crosstalk | 95dB or more |
| EIN | -127dBu or less |
Computer system requirements
| Windows | |
| Compatible computers | Windows-compatible computer with a USB 2.0 port |
| CPU type/speed | Dual core / 2GHz or faster (x86) |
| Memory | 2GB or more |
| DRIVER | ASIO2.0Â WDM(MME) |
| Macintosh | |
| Compatible computers | Apple Macintosh computer with a USB 2.0 port |
| CPU type/speed | Dual core / 2GHz or faster |
| Memory | 2GB or more |
| DRIVER | Core Audio, Core MIDI |
Supported OS’
Windows
Windows 10 (October 2018 Update) , Windows 8.1 , Windows 8 , Windows 7
Mac
macOS Catalina New , macOS Mojave , macOS High Sierra (10.13) , macOS Sierra‎ (10.12) , OS X El Capitan (10.11) , OS X Yosemite (10.10) , OS X Mavericks (10.9) , OS X Mountain Lion (10.8)
iOS
iPadOS New , iOS 13 New , iOS 12 , iOS 11 , iOS 10 , iOS 8 , iOS 7
