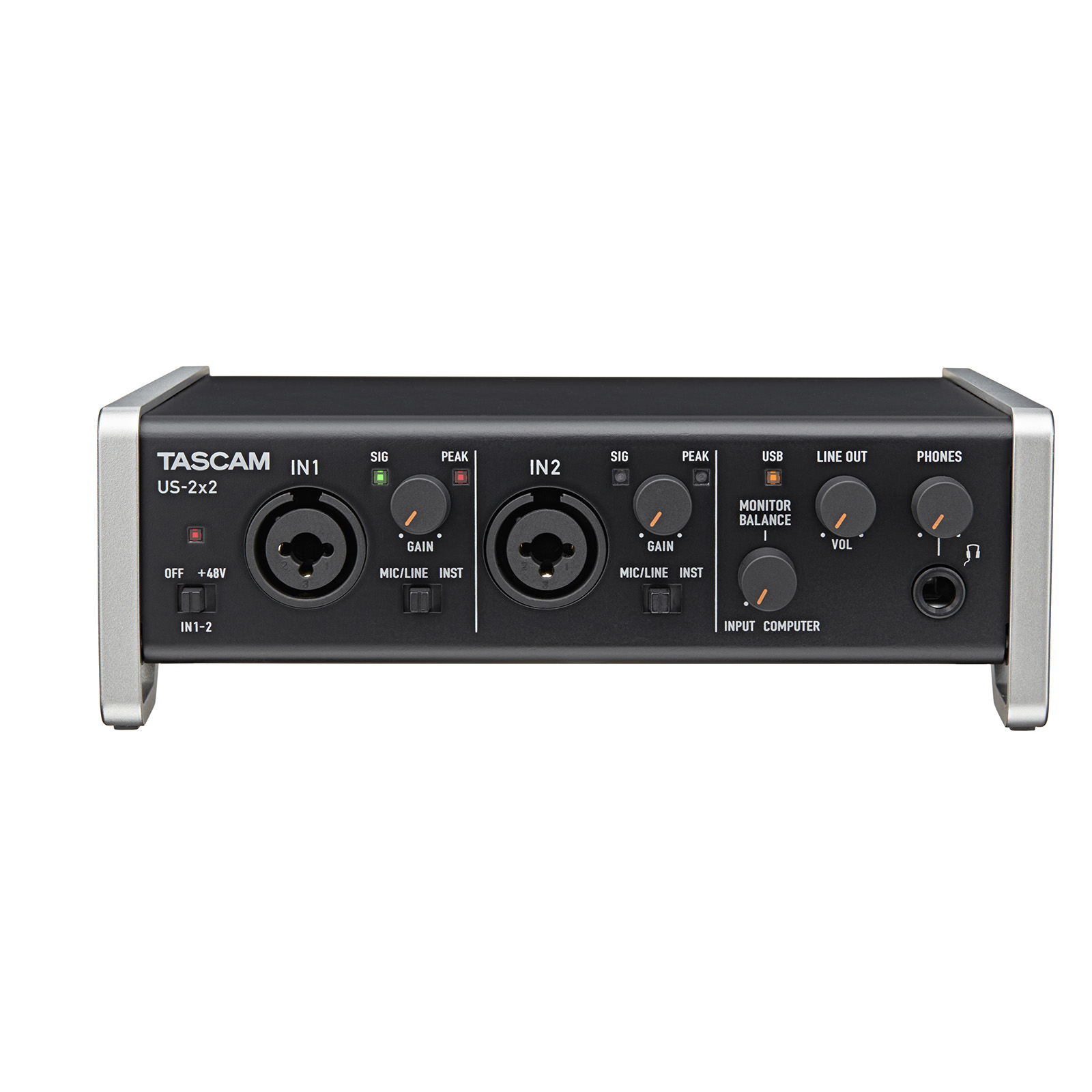

TASCAM US-2x2 USB Audio Interface

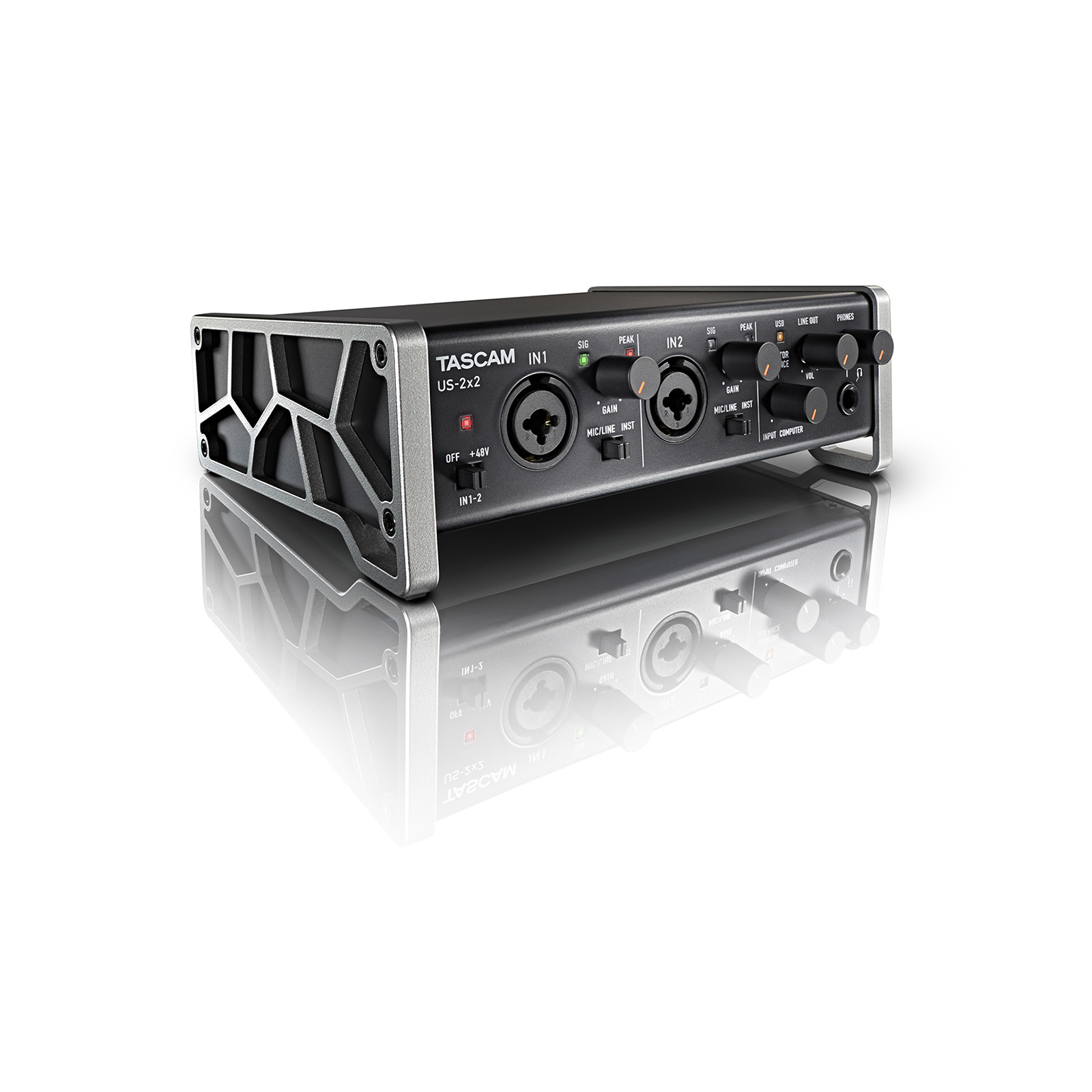

TASCAM US-2x2 USB Audio Interface - Image 2

TASCAM US-2×2 USB Audio Interface

Call For Price

Found this product at a lower price?
  Check Stock & Price

2-in/2-out Audio/MIDI Interface with HDDA Mic Preamps and iOS Compatibility

SKU: US-2X2-CU Category:
Description

TASCAM’s US-2×2 combines great audio quality and ergonomic design for a powerful 2-in/2-out USB 2 Audio interface.

Two of TASCAM’s Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source.

The US-2×2 includes class-compliant drivers for plug-and-play operation on Mac OSX and iOS devices like the iPad, and a simple driver adds ASIO compatibility for Windows. MIDI in and out are also included for connecting synths, drum machines, and controllers.

With solid audio specs, iOS compatibility, and an easy-to-read angled design, the US-2×2 is the ultimate 2-channel interface for home, project, and mobile studios.



Ultra-HDDA Mic Preamps for Clear Audio Quality from All of Your Mics

TASCAM’s own Ultra-HDDA mic preamps are the cleanest, quietest, and best-sounding from any interface in their range. A gain range of 57dB makes them ideal for any type of mic – dynamic, condenser, or ribbon. With preamp performance well beyond any interfaces in their price range, the Ultra-HDDA preamps on the US-2×2 makes your tracks sound like a record.

Discrete Ultra-HDDA Mic Preamps Deliver Low Noise and Low Distortion

TASCAM’s Ultra-HDDA (High Definition Discrete Architecture) mic preamp design is based on discrete components, just like classic professional gear. They achieve an incredible EIN rating of -125 dBu, meaning their noise level is practically below the range of hearing. Other impressive specs include a signal-to-noise ratio of 101 dB, out-speccing anything in its price range. But instead of judging the design merely by test measurments, key components were selected following extensive listening tests.

Musical Components like NE5532 Op-amps Used for Input and Output Stages

TASCAM uses proven, great-sounding components throughout the US-2×2. One example are NE5532 op-amps, famously used throughout classic recording consoles and signal processors due to their sweet, musical sound.

XLR and TRS Accept Balanced Mic and Line Level Signals

The mic input features a professional XLR connector, which supplies 48V phantom power for condenser microphones. The US-2×2 is built from heavy duty metal throughout, so it stays on your desk even when moving mics around.
The combo input jack includes TRS inputs for balanced line-level signals from professional processors and synthesizers. Finally, the two inputs can be switched to high-impedance for direct recording of electric guitar and bass. (Only the XLR or 1/4″ input can be used, not both at the same time.)

Wide Gain Range Supports Dynamic and Ribbon Microphones

Non-powered mics like dynamic and ribbon designs can sound great, but they also have a lower output level than condenser microphones. The US-2×2’s Ultra HDDA mic preamps not only feature 57dB of gain, but also a low-noise design so you don’t crank up the noise at the same time. Plug in modern or classic mics and still get plenty of level on your tracks.

Rock Out with Amp Simulator Software using the Guitar Inputs

The two inputs can be switched to direct guitar inputs, ideal for direct recording of electric and acoustic guitar and bass without the need for a preamp.

Simple Operation and an All-New USB Driver

TASCAM makes installing the US-2×2 a snap, whether usnig the built-in class-complient driver or the high-performance ASIO or Core Audio drivers. TASCAM started from scratch on the software, developing them in-house through extensive testing, resulting in our most robust drivers ever.

Also included with the driver software is a simple-to-use on-screen control panel, which monitors and adjusts critical interface settings.

Sleek industrial design that inspires creativity with a practical interface

We have applied the engineering expertise from years of making audio interfaces to create products that are both pioneering and practical. With their distinctive styles, these interfaces will fit perfectly on the desktops of musicians and will stimulate creativity.

Bio-Cell Side Panels Add Style and Ergonomic Design

The US-2×2 includes Bio-Cell Side Panels. These removable aluminum panels, developed by renowned industrial designers The Box, add a unique look to the interfaces as well as angling them on the desktop for increased usability.

Angled Orientation is Ideal for Desktop Use

The angled design makes desktop viewing and operation much more comfortable for tabletop use. All other interfaces have their controls on the front or the top of the device, causing you to crane your neck to read the knobs and switches. The US-2×2 is at a natural angle, making operation easier to keep you creative.

Separate Volume Controls for Headphones and Line Outputs

The US-2×2 includes both headphone and line output volume controls. Even when both powered monitors and headphones are connected, the user can set an optimum level for each during operation. And when you want to work on headphones, you don’t need to reach around to switch off your monitors.
Built for Multi-Mic Recording
The two Ultra-HDDA mic preamps on the US-2×2 handle anything from rehearsals to studio recording, to live performance. Capture an entire band, or just mic up a drum kit. The two TRS jack outputs can feed monitors, signal processors, or video cameras.
The US-2×2 includes an AC adapter – also required for use with iOS devices. By using an audio interface with iPad sound sources like a synthesizer app, a richer sound quality can be
heard as opposed to using the headphone output alone.

Class-Compliant Drivers for use with iPad and Other Tablets

The US-2×2 is built with class-compliant drivers built into the units. Not only does this mean that they can be used with many computers without first installing a driver, they also open the possibilities of with tablets such as Apple’s iPad.

Connect to iPad, iPhone, or other iOS devices

Use Apple’s Camera Connection Kit to connect the US-2×2 to an iPad or other iOS device. Utilitze the multichannel audio and MIDI functions with any of the thousands of iOS audio apps, like Garage Band or TASCAM’s Portastudio app. Class Compliant drivers also allow the interfaces to be used with Android and Windows-based tablets.
* A TASCAM PS-P520 AC adapter (included) is necessary to power the US-2×2.
* Apple’s Camera Connection Kit is not included with this product.
* When connected, the US-2×2 will not provide power to the iOS device.

Tested with Sonar, Pro Tools, Cubase, Live, Studio One, and Garage Band

TASCAM has tested the interface operation with all leading DAW software, such as SONAR, Pro Tools, Cubase, Live, Studio One and Garage Band. Use the interfaces with your favorite Mac or Windows recording applications, not just the bundled apps.

Cubase LE – An advanced DAW for Windows and Macs

With Cubase LE you can turn your Windows or Mac into a beautiful and easy-to-use music studio. This compact DAW offers you all the basic tools for recording, editing and mixing everything from the initial musical idea to the final track. Cubase LE assists you during the creative process – whether you are a songwriter, guitar player, vocalist or electronic music producer, Cubase has the right tools and features at hand.
* A TASCAM PS-P520 AC adapter (included) is necessary to power the US-2×2.
* Apple’s Camera Connection Kit is not included with this product.
* When connected, the US-2×2 will not provide power to the iOS device.

MIDI Input and Output Included

Standard MIDI input and output connectors allow connection with the thousands of keyboards, drum machines, controllers, and other sources that employ MIDI connectors. The interfaces can also be used for synchronized operation of multitrack recorders and other external recording equipment.

Features at a glance

Functions common to both the US-2×2 and US-4×4

  • Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −125dBu EIN
  • NE5532 op-amps used at the audio input and output stages
  • Up to 96kHz/24-bit recording
  • Support for Windows and Mac OS X operating systems
  • USB 2.0 computer connection
  • Connect with iPads and other iOS devices
  • 48V phantom power for all inputs
  • Two switchable high-impedance inputs
  • Microphone preamp gain range of 57 dB
  • Direct monitoring function for zero-latency monitoring
  • Tough all-metal casing for durability
  • Angled design provides excellent usability on a desktop
  • Balanced analog TRS output jacks suitable for connection to powered monitors
  • Standard TRS headphones output jack
  • Separate controls for line and headphones output volumes
  • MIDI input and output
  • Output sources can be selected in the setting panel
  • Input sound monitoring can be set to stereo or mono
  • Input muting function eliminates noise from unused inputs
  • USB class compliant 2.0 support
  • Confirmed operation with major DAW software (SONAR, ProTools, Cubase, Live, Studio One, Garage Band?

Unique features for the US-2×2

  • Two Ultra-HDDA mic preamplifiers
  • Two XLR/TRS (MIC/LINE) inputs with full 48V phantom power
  • Two TRS analog balanced outputs
  • 18mW/ch headphone output
  • USB bus-powered for mobile recording
  • Optional AC adaptor available for use with iOS devices

Spec description

US-2×2 US-4×4
Sampling frequency 44.1k/48k/88.2k/96k Hz
Quantization bit rate 16/24-bit
Analog audio inputs
MIC IN IN 1-2 IN 1-4
Connector XLR-3-31 (1: GND, 2: HOT, 3: COLD), BALANCED
Input impedance 2.2k Ohm
Nominal input level
GAIN: MAX -65dBu (0.0004Vrms)
GAIN: MIN -8dBu (0.3090Vrms)
Maximum input level
(GAIN: MIN )		 8dBu (1.9467Vrms)
Gain 57dB
INST IN IN 1-2 IN 1-2
Connector 1/4″ (6.3mm) TS-jack (T: HOT, S: GND), UNBALANCED
(when set to “INST” at MIC/LINE.INST switch)
Input impedance 1M Ohm
Nominal input level
GAIN: MAX -63dBV (0.0007Vrms)
GAIN: MIN -6dBV (0.5015Vrms)
Maximum input level
(GAIN: MIN )		 10dBV (3.162Vrms)
Gain 57dB
LINE IN IN 1-2 IN 1-4
Connector 1/4″ (6.3mm) TRS-jack (T: HOT, R: COLD, S: GND), BALANCED
(when set to “MIC/LINE” at MIC/LINE.INST switch)
Input impedance 10k Ohm
Nominal input level
GAIN: MAX -53dBu (0.0017Vrms)
GAIN: MIN 4dBu (1.228Vrms)
Maximum input level
(GAIN: MIN )		 20dBu (7.75Vrms)
Gain 57dB
Analog audio outputs
LINE OUT
Connector 1/4″ (6.3mm) TRS-jack (T: HOT, R: COLD, S: GND), BALANCED
Output impedance 110 Ohm
Nominal output level 4dBu (1.273Vrms)
Maximum output level 20dBu (7.75Vrms)
PHONES
Connector 1/4″ (6.3mm) stereo phone jack
Maximum output level 18mW 18mW or more
(THD N 0.1% or less, 32 Ohm loaded)		 45mW 45mW or more
(THD N 0.1% or less, 32 Ohm loaded)
MIDI IN / OUT
Connector DIN 5-pin
Format Standard MIDI format
USB
Connector USB B type 4-pin
Format USB2.0 HIGH SPEED
Power
when connected PC USB bus powered Dedicated AC adapter
(GPE248-120200-Z, included)
when connected iOS AC Adapter
(TASCAM PS-P520, sold separately)
Power consumption 2.5W 5W
Dimensions (W×H×D) 7.32″ ×2.56″ × 6.3″
186 × 65 × 160 mm		 11.62″ × 2.56″ × 6.3″
296 × 65 × 160 mm
Weight 2.43 lbs. / 1.1 kg 3.53lbs. / 1.6kg
Operating temperature 41?F to 95?F / 5?C to 35?C
Bundled software Cubase LE
Accessories USB cable, User’s manual, warranty card AC adapter(GPE248-120200-Z), USB cable, User’s manual, warranty card



Audio performance

Frequency response
LINE OUT(BALANCED)
44.1k/48k Hz 20Hz to 20kHz, 0dB/-0.1dB
88.2k/96k Hz 20Hz to 40kHz, 0dB/-0.2dB
PHONES
44.1k/48k Hz 20Hz to 20kHz, 0dB/-0.5dB
88.2k/96k Hz 20Hz to 40kHz, 0dB/-2dB
THD 0.003% or less
S/N ratio 101dB or more
Crosstalk 95dB or more
EIN -127dBu or less



Computer system requirements

Windows
Compatible computers Windows-compatible computer with a USB 2.0 port
CPU type/speed Dual core / 2GHz or faster (x86)
Memory 2GB or more
DRIVER ASIO2.0, WDM(MME)
Macintosh
Compatible computers Apple Macintosh computer with a USB 2.0 port
CPU type/speed Dual core / 2GHz or faster
Memory 2GB or more
DRIVER Core Audio, Core MIDI



Supported OS’

Windows

Windows 10 (October 2018 Update) , Windows 8.1 , Windows 8 , Windows 7

Mac

macOS Catalina New , macOS Mojave , macOS High Sierra (10.13) , macOS Sierra‎ (10.12) , OS X El Capitan (10.11) , OS X Yosemite (10.10) , OS X Mavericks (10.9) , OS X Mountain Lion (10.8)

iOS

iPadOS New , iOS 13 New , iOS 12 , iOS 11 , iOS 10 , iOS 8 , iOS 7

Additional information
Weight 1 g
Dimensions 16 × 17 × 7 mm
