Description

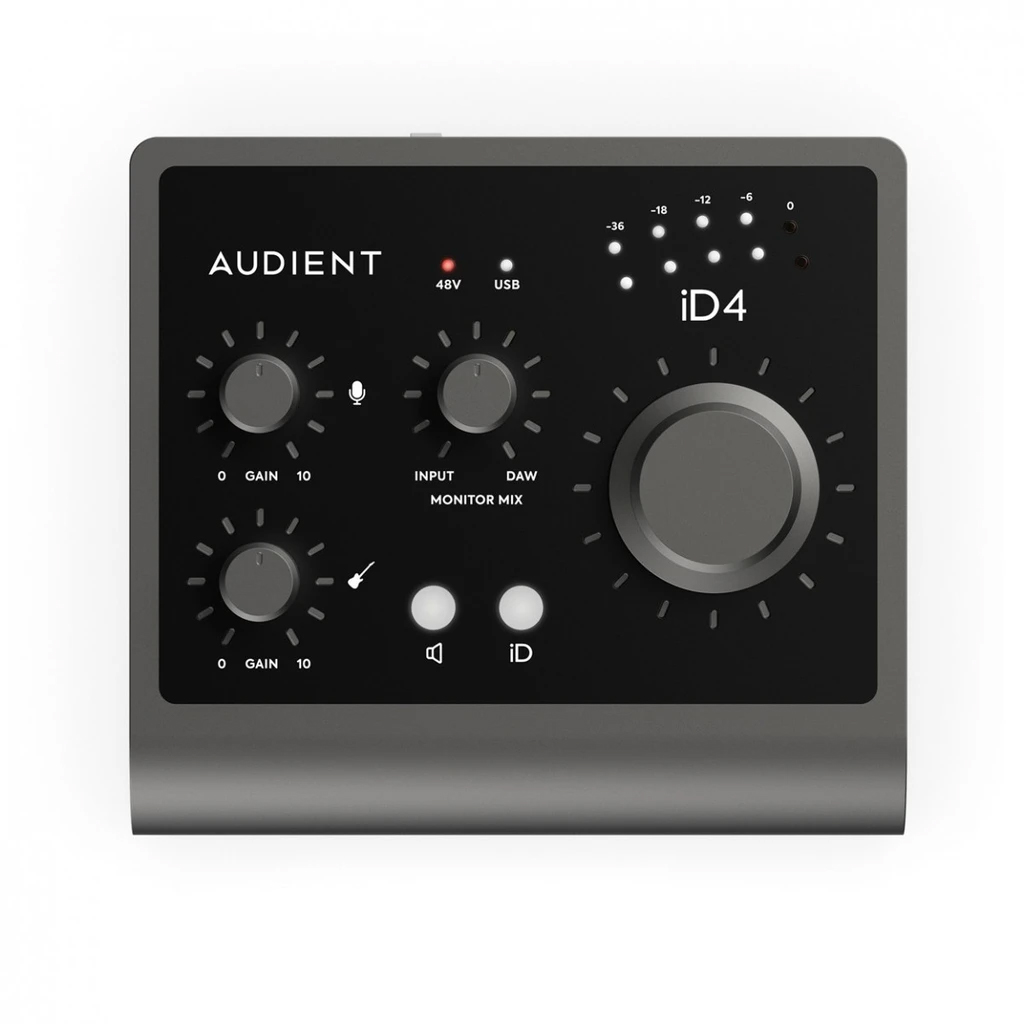

iD4 delivers the audio performance of a large format console in a portable desktop package enabling you to record your vocals and guitar simultaneously. Providing one renowned Audient console mic pre, class-leading converter technology, dual headphone outputs, console style monitor control, JFET D.I and virtual scroll wheel technology ‘ScrollControl’, iD4 is a professional but affordable solution for your home studio or for when you’re on the road.
AUDIENT CONSOLE MIC PRE’S
THE PROFESSIONAL SOUND YOU DESERVE
iD4 provides you with high performance AD-DA converters. Quality in the analogue stages of design comes from years of experience as analogue console designers, and when coupled with outstanding converter technology it enables you to hear audio as it’s supposed to sound. The importance of converters should never be underestimated. Experience audio the Audient way.
SCROLLCONTROL
THE VIRTUAL SCROLL WHEEL
With a touch of a button iD4’s volume encoder becomes a virtual scroll wheel, enabling you to adjust DAW hosts, plug-in parameters and even scroll through your iTunes library – just like you’re adjusting a piece of hardware. Wherever your mouse pointer hovers, the iD knob can scroll to control! And when you’re not using ScrollControl, pressing iD4’s volume encoder activates DIM, enabling you to quickly reduce the playback volume.
PLUG AND PLAY
SIMPLY PLUG IN AND BE INSPIRED
iD4 has a harmonically rich JFET D.I input. Designed to replicate the input stage of a classic valve amplifier, you can plug your guitar, bass, keyboard or drum machine straight in and start recording instantly. Get professional quality recordings from the start and take your track to the next level.
Specs
D.I / Instrument Input
| RANGE: | 40dB |
| LINEUP: | 12dBu = 0dBFS |
| THD N @ 0dBu: | 0.1% |
| SNR: | 100dBu A-Weighted |
| FREQUENCY RESPONSE – MIN GAIN | ±0.5dB 10Hz to 20kHz |
Microphone preamplifier
| GAIN RANGE: | 58dB |
| LINEUP: | 12dBu = 0dBFS |
| MIC MAX INPUT LEVEL: | 12dBu |
| MAX INPUT LEVEL: | 21dBu |
| INPUT IMPEDANCE (Mic): | 2.8k |
| INPUT IMPEDANCE (Line): | >8k |
| THD N @ 0dBu | 0.00170% |
| THD N @ 0dBu MAX GAIN: | <0.04% |
| SNR: | 101dBu A-Weighted |
| EIN: | 129dB A-Weighted |
| CMRR @ 1k: | >75dB |
| FREQUENCY RESPONSE – MIN GAIN | ±0.5dB 10Hz to 40kHz |
Analogue to Digital Converter
| THD N @ -1dBFS: | 0.001% |
| DYNAMIC RANGE: | 120dB A-Weighted |
| FREQUENCY RESPONSE: | ±0.5dB 10Hz to 40kHz |
Line Outputs (DAC):
| LINEUP: | 12dBu = 0dBFS |
| THD N @ -1dBFS: | 0.0006% |
| DYNAMIC RANGE: | 125.5dB A-Weighted |
| CROSSTALK: | >120dB |
| FREQUENCY RESPONSE: | ±0.1dB 10Hz to 40kHz |
| 1/4" TRS JACK: | Tip (Hot), Ring (Cold) & Sleeve (Shield) |
Headphone Outputs:
| LINEUP: | 18dBu = 0dBFS |
| THD N @ -1dBFS: | 0.0009% |
| DYNAMIC RANGE: | 125.5dB A-Weighted |
| CROSSTALK: | >116dB |
| FREQUENCY RESPONSE: | ±0.1dB 10Hz to 40kHz |
| MAXIMUM LEVEL @ 30R: | 2.59V Peak, 1.827V RMS, 223mW |
| MAXIMUM LEVEL @ 62R: | 4.18V Peak, 2.95V RMS, 280mW |
| MAXIMUM LEVEL @ 600R: | 7.72V Peak, 5.46V RMS, 100mW |
| 1/4" TRS JACK: | Tip (Left), Ring (Right) & Sleeve (Shield) |
USB-C High Speed:
| BUS POWER: | ||
| MIN REQUIREMENT: | 0.9A @ 5V | >=USB 3.0 Port |
| MAX REQUIREMENT: | 1.5A @ 5V | USB-C: Provides higher headphone outputs levels |
| No. of INPUT CHANNELS: | 2 (2 Analogue) | |
| No. of OUTPUT CHANNELS: | 2 (2 Analogue) |
| DSP MIXER LATENCY ROUND TRIP (in-to-out): | 44.1kHz | 0.65mS |
| 48.0kHz | 0.6mS | |
| 88.2kHz | 0.33mS | |
| 96.0kHz | 0.31mS |
