16×16 AES3 I/O With Dual PSUs
RedNet D16R is a 1U, 16×16 AES3 interface for any Dante™ audio-over-IP network. Featuring network and power supply redundancy, RedNet D16R is the ideal choice for providing AES3 I/O in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio. Perfect for bridging between digital consoles, power amplifiers or any other AES3-equipped audio equipment and any Dante network, RedNet D16R has SRC (Sample Rate Conversion) on each input pair allowing plug-and-play operation with any AES3 source.

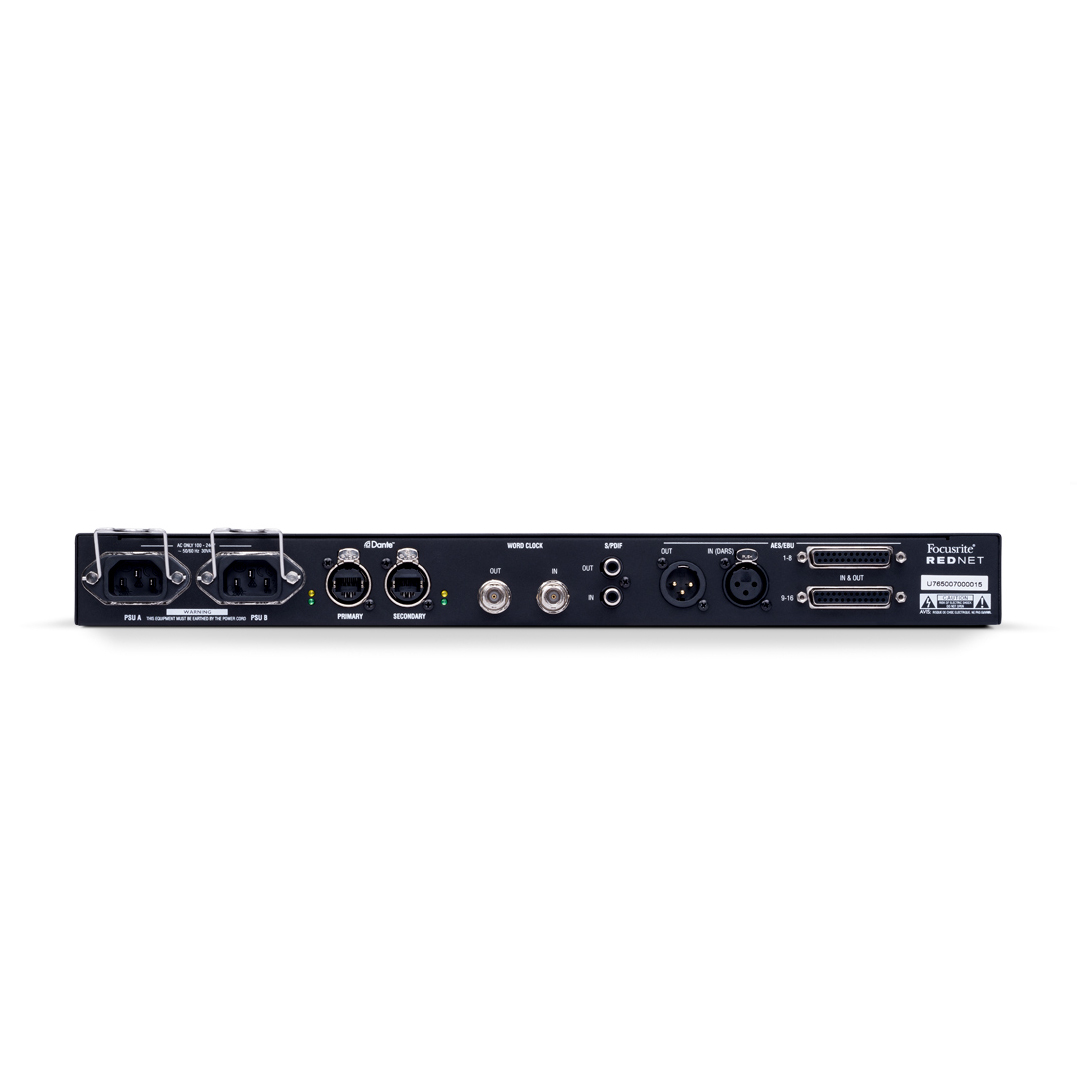

Two rear-panel DB25 connectors wired to the AES59 standard provide eight pairs of AES3 I/O, while an additional pair of XLR connectors allows flexibility in cabling choice for one pair of I/O. Additional RCA connectors allow the connection of consumer S/PDIF equipment. All external audio inputs include sample rate conversion, further reducing cabling and clocking complexity. Word Clock I/O on BNC connectors allows external devices to clock to RedNet D16R, or alternatively allows RedNet D16R to act as a network clock grand master slaved to external input. Power is supplied through a pair of locking IEC power inlets, and network connections are provided with a pair of locking Neutrik etherCON connectors; providing redundant operation or daisy-chained operation.
SPECIFICATIONS
INPUT SAMPLE RATE CONVERTORS
Sample Rate Range
32 to 216 kHz
Gain Error
-0.3dB
Dynamic Range
> 138dB (-60 dBFS method)
THD N
< -130dB (0.00003); 0 dBFS input
Latency
11 to 45 samples (network and input sample rate dependent).
DIGITAL PERFORMANCE
Supported Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
Clock Sources
Internal, Word Clock, DARS, AES input 1-2, AES input 9-10 or from Dante Network Master
REAR PANEL CONNECTIVITY
Channel Count
2 x 2 S/PDIF Channels (reduces AES/EBU input channels)
Input And Output
2 x DB-25 connectors (AES59 Combined I/O / Tascam Digital)
Alternate Input (Optional DARS)
1 x Female XLR (replaces DB-25 channels 1-2)
Alternate Output
1 x Male XLR (duplicates DB-25 channels 1-2)
Input
1 x RCA phono socket (replaces DB-25 channels 3-4)
Output
1 x RCA phono socket (switchable, duplicates any DB-25 channel pair)
PSU
2 x IEC Inputs with retaining clips
Network
2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors
AES/EBU Channel Count
16 x 16 AES/EBU channels
FRONT PANEL INDICATORS
Primary PSU (A)
Green LED. Illuminates when an AC input is applied and all DC outputs are present.
Secondary PSU (B)
Green LED. Illuminates when an AC input is applied and all DC outputs are present.
Sample Rate
Orange LED for each: 44.1 kHz, 48 kHz, x2, x4.
Pull Up/Down
Orange LED. Indicates unit is set to operate on a Dante pull up/down domain.
Signal Indicators
16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS.
Secondary Network
Green LED. Indicates that a network connection is present on secondary port when in redundant mode
Network Locked
Green LED. When unit is network slave, shows valid network lock
Clock Source
Orange LED for each: Internal, Word Clock, DARS, Input 1–2 and Input 9–10
NETWORK MODES
Redundant
Allows unit to connect to two independent networks
Switched
Connects both ports to integrated network switch allowing daisy-chaining
DIMENSIONS
Height
44.5mm/ 1.75″
Width
482.6mm/ 19″
Depth
263mm/ 10.35″
WEIGHT
Weight
3.84kg
POWER
Power PSU
2 x Internal, 100-240V, 50/60Hz, consumption 30VA
HEAT PERFORMANCE
Operating Temperature
Operates at up to an ambient temperature of 50 degrees Celcius
