- 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
- 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
- High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
- Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.

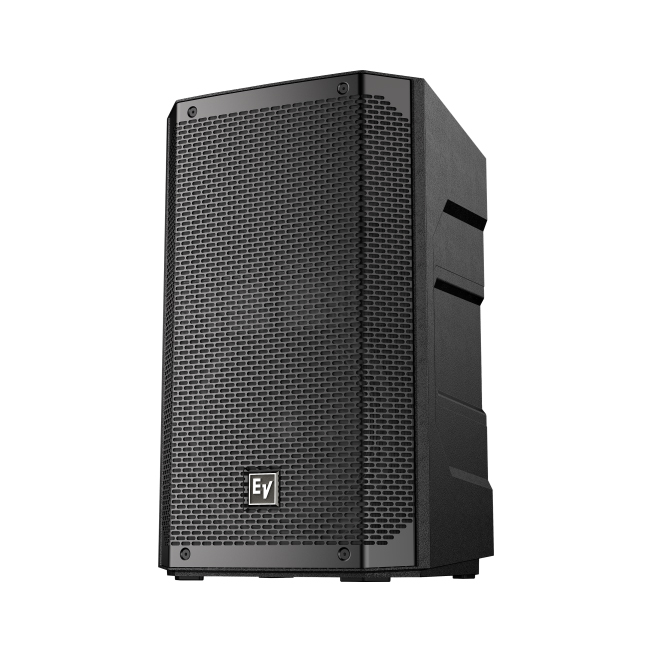

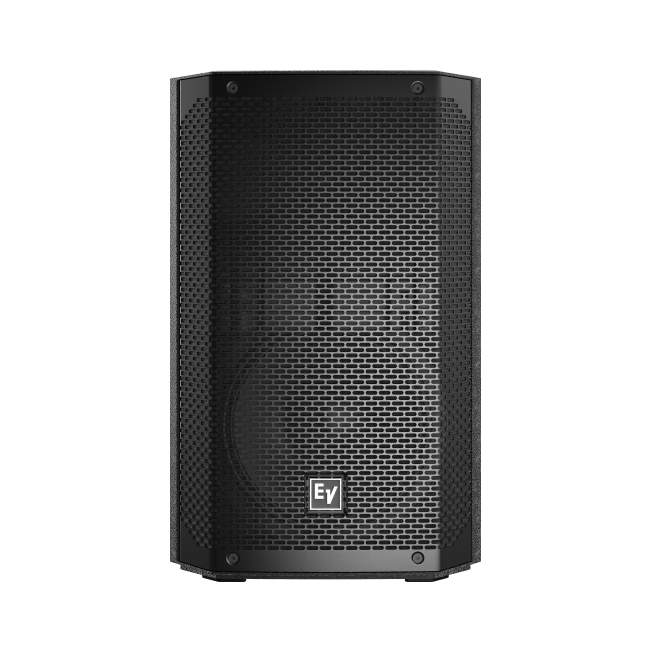

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole – the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.
EV’s industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness – both acoustically and physically; maximum efficiency with maximum toughness.
SPECIFICATIONS
| Weight Net | 29.54lbs (13.4kg) |
| Depth | 12.56″ (319mm) |
| Width | 12.99″ (330mm) |
| Height | 20.91″ (531mm) |
| Available Color | Black or White |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 90dB |
| Connector Type | Dual NL4 |
| Coverage (Nominal -6 dB) H | 90° |
| Coverage (Nominal -6 dB) V | 60° |
| Crossover Frequency | 2 kHz |
| Enclosure Material | Polypropylene Composite |
| Family | ELX200 |
| Frequency Range (-10 dB) | 49 Hz – 22 kHz |
| Frequency Response (-3 dB) | 65 Hz – 20 kkHz |
| Grille | 18 AWG steel with powdercoat |
| HF Transducer | DH-1C 1-inch titanium compression driver |
| LF Transducer | EVS-10M 254 mm (10 in) |
| Max. SPL/1m (calc) | 127dB |
| Minimum Impedance | 7.2Ω |
| Nominal Impedance | 8Ω |
| Power Handling (Continuous / Peak) | 300 W/1200W |
| Power Rating | 1200W |
| Recommended High-Pass Frequency | 55Hz |
| Shipping Weight | 33.73lbs (15.3kg) |
| Speaker Type | Full-Range |
| Suspension | (3) M10 suspension points |
| Woofer Size | 10inch |
