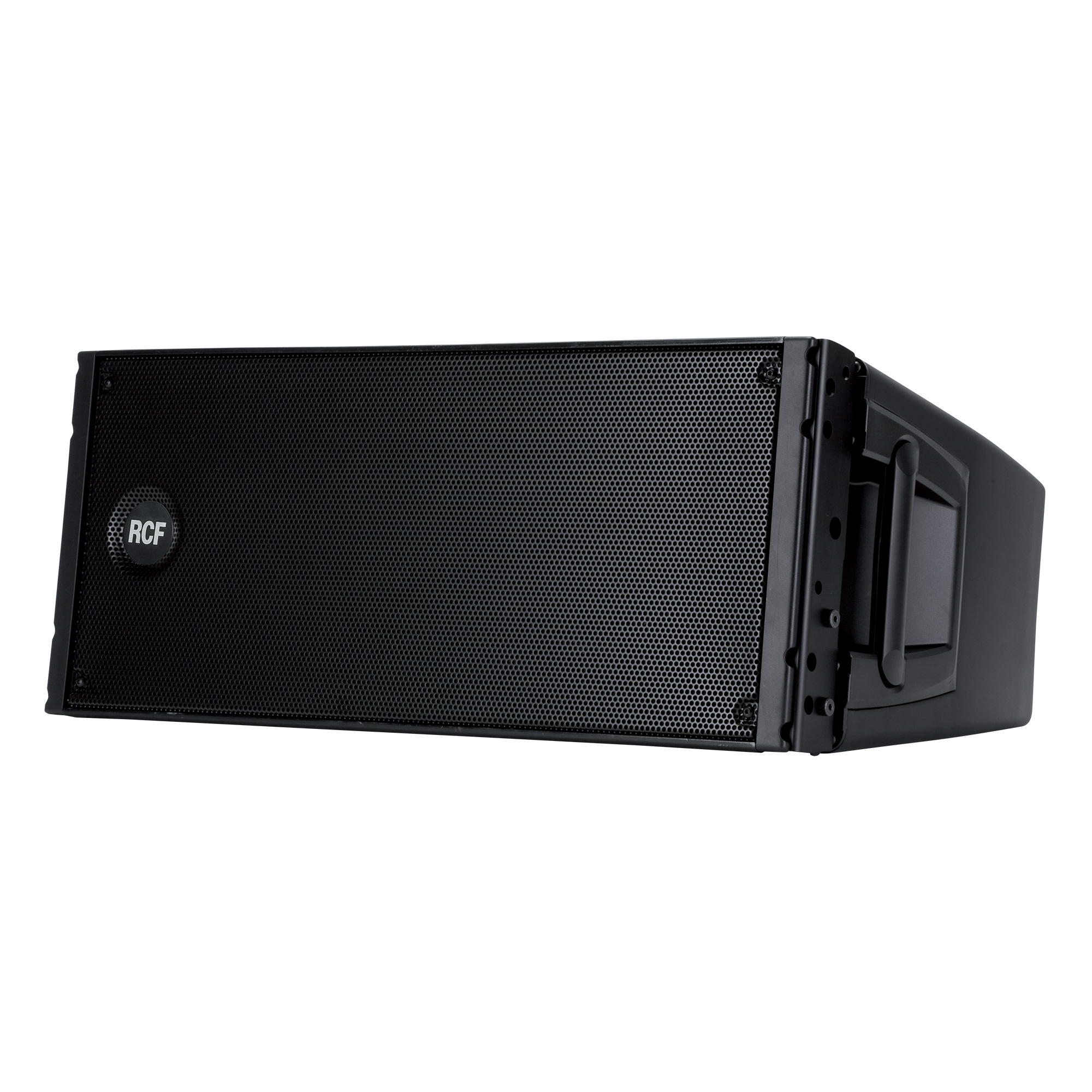

RCF HDL 20-A Active Line Array Module

R66,532.50

Found this product at a lower price?

The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations.

SKU: HDL-20A Categories: ,
Description

RCF HDL 20-A Overview

Audio professionals in search of a compact line array module for live sound reinforcement and reliable installation applications will be impressed with the RCF HDL 20-A, a powered line array module with a fast and easy setup well suited for touring bands, concerts, clubs, festivals, or anywhere line array performance is needed.

The module features a 1400W bi-amplifier that delivers 1000W to the dual 10″ woofers and 400W to the 3″ compression driver, which combine for a frequency response of 55 Hz to 20 kHz and a maximum SPL of 135 dB. The integrated DSP includes cluster and high-frequency projection correction and special new presets for indoor and high-curving situations. There are XLR inputs and outputs and powerCON inputs and outputs for daisy chaining multiple line array modules.

Tour Sound in a Compact Size

The HDL 20-A is a true active and high-power, ready-to-use touring system equipped with a high-efficiency digital amplifier that delivers superior SPL, reducing energy requirement. The integrated processing and the cabling reduction will make the set up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.

Power Class-D Amplifiers

RCF’s Class-D power amplifier technology packs huge performance, operating with high efficiency into a lightweight solution. HDL amplifiers deliver an ultrafast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminum structure, which not only stabilizes the amplifier during transportation, but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

RCF Precision Transducers

High frequencies:

The CD850 large-format compression driver delivers one of the key advantages of the HDL 20-A, the 3″ voice coil allows a crossover point of 800 Hz and therefore almost all of the vocal range can be produced by this driver. This allows better coverage and dispersion control, and superior efficiency.

Low frequencies:

High power woofers. Very-high efficient and controlled bass reproduction.

  • 2 x 10″ woofers, 2,5″ inside-outside voice coil
  • Water-resistant fiber doped cone
  • Polycotton M-roll surround
  • Hypervented magnetic structure

Description

The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations. The HDL 20-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high curving situations. The system features state of the art RCF transducers, two powerful 10” for a solid bass reproduction and a large format 3″ voice coil compression driver to deliver vocal clarity and high definition with an incredible dynamic.

The HDL 20-A is a two way active line array module designed for live sound reinforcement and installed sound applications. It features: 2 x 10-inch woofers, 1 x 3-inch titanium compression driver, digital amplifier with switch mode power supply and DSP controlled Input section with selectable presets. The HDL 20-A delivers: 135dB max SPL; 1400 Watt peak power (700 Watts RMS); 55Hz – 20kHz frequency response. The HDL 20-A is a true active and high power ready to use touring system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum. The integrated processing and the cabling reduction will make the set-up faster and easier. The compactness and lightweight of the system combined with top of class steel on board mechanics helps during rigging operations as well as during transportation.

Applications

  • Live sound
  • Concerts
  • Portable PA, clubs, ballrooms, live theatre
  • House of worship
  • Theme parks
  • Music playback and sound reinforcement in small and mid-size venues
  • Corporate A/V professionals and sound system hire companies

Features

  • 1400 Watt Peak power – 700 Watt RMS
  • 135 dB max SPL
  • 55 Hz 20 kHz frequency response
  • 2 x 10″ Woofers
  • 1 x 3″ Compression Driver
  • DSP controlled Input section with selectable presets
  • Tour grade safe and solid variable mechanics
  • Composite PP enclosure structurally wooden reinforced

Acoustical Specifications

  • Frequency Response -3 dB: 55 Hz  20 kHz
  • Max SPL: 135 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 15°
  • Compression Driver: 2″, 3.0″ v.c.
  • Woofer: 2 x 10″, 2.5″ v.c.
  • Input/Output Section
  • Input signal: bal/unbal
  • Input connectors: XLR
  • Output connectors: XLR
  • Input sensitivity: -2 dBu / 4 dBu

Processor Section

  • Crossover frequencies: 800 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft limiter
  • Controls: Cluster, HF, High curving, Indoor

Amplifier Specifications

  • Total power: 700 W
  • High frequencies: 200 W
  • Low frequencies: 500 W
  • Cooling: Convection
  • Connections: Powercon in/out

Cabinet

  • Cabinet Material: Composite PP, wooden reinforced
  • Hardware: Rigging flyware
  • Handles: 2 side, 2 back
  • Colour: Black

Physical Specifications

  • Height: 294 / 11.5 mm/inch
  • Width: 705 / 27.7 mm/inch
  • Depth: 445 / 17.5 mm/inch
  • Net Weight: 29 / 63.93 kg/lbs
  • PACKAGE HEIGHT: 375 mm / 14.76 inches
  • PACKAGE WIDTH: 800 mm / 31.5 inches
  • PACKAGE DEPTH: 500 mm / 19.69 inches
  • PACKAGE WEIGHT: 33.2 kg / 73.19 lbs
Additional information
Weight 34 kg
Dimensions 80 × 50 × 38 mm
