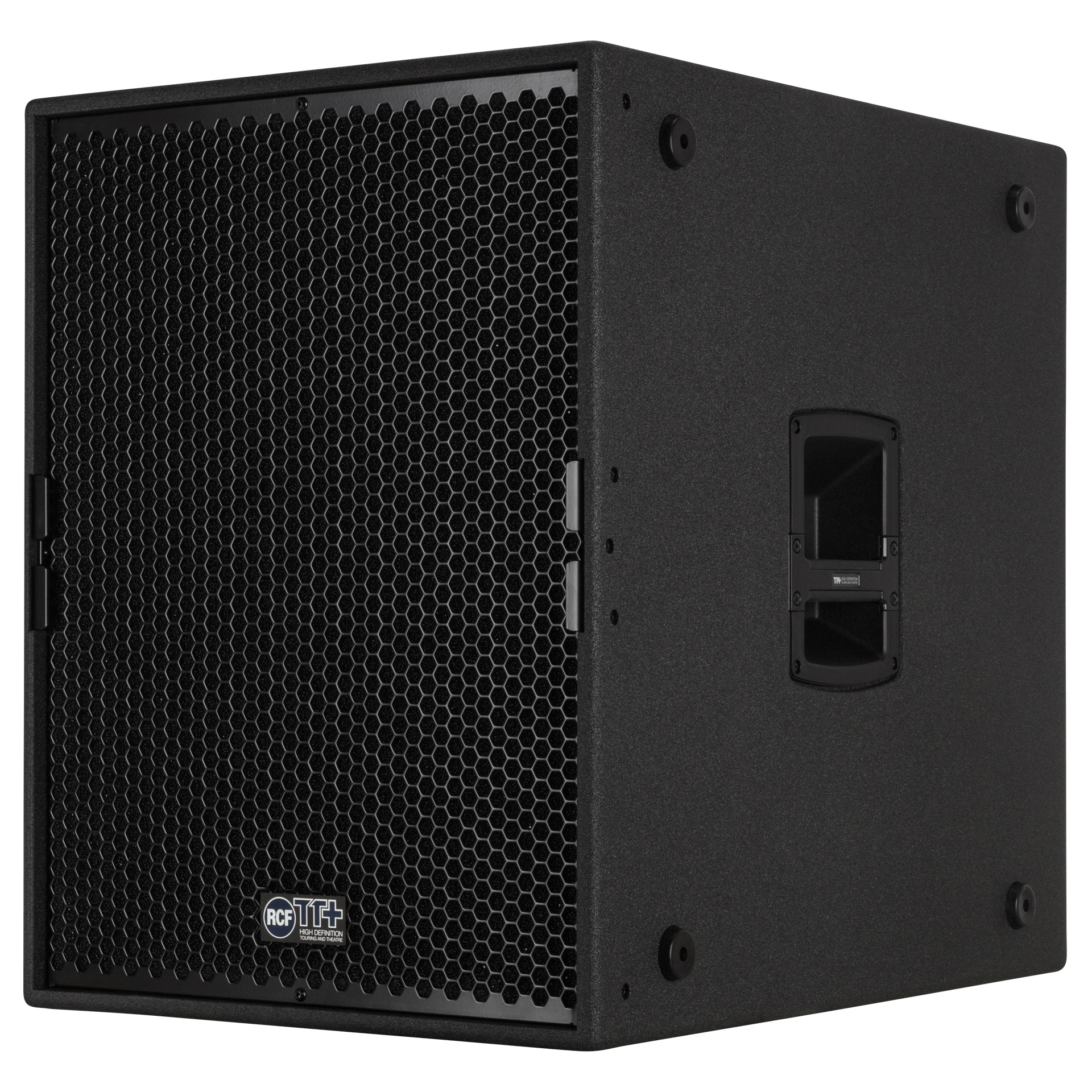

RCF TTS 18-A II 18" 2800W Active Subwoofer
RCF TTS 18-A II 18" 2800W Active Subwoofer - Image 2
RCF TTS 18-A II 18" 2800W Active Subwoofer - Image 3

RCF TTS 18-A II 18″ 2800W Active Subwoofer

R87,922.00 (incl. VAT)

Found this product at a lower price?
  Check Stock & Price

18″ 2800W Active Subwoofer

SKU: TTS-18A II Category:
Description

Description

The black RCF TTS 18-A II is an 18″ 2800W active subwoofer designed to provide low-frequency reinforcement for A/V system installers, audio engineers, and DJs in outdoor environments or houses of worship, concert venues, and live stage applications. Its Class-D amplifier delivers 2800W of power to the 18″ woofer, which produces a frequency response of 30 to 400 Hz and is hyper-vented for heat dissipation.

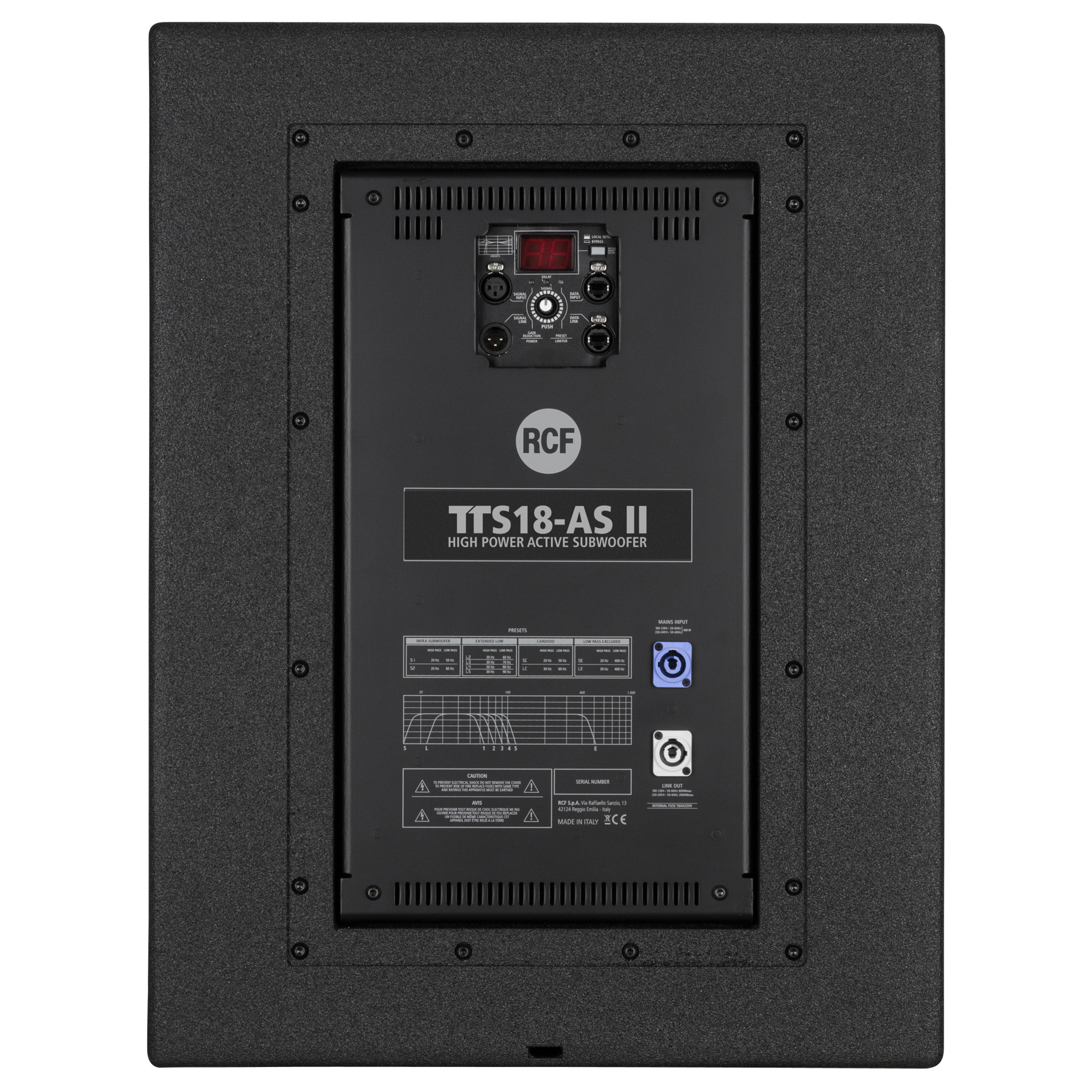

32-bit DSP processing yields simple adjustment of input gain, delay, and crossover presets. RDNet control via EtherCon I/O allows comprehensive remote parameter control and system monitoring. XLR and powerCON inputs and outputs are employed for straightforward integration with standard PA components.

The TTS 18-A II boasts a sturdy wood cabinet, built-in carry handles, and M20 pole sockets for tour readiness.

Low-Noise Electronics
The switch-mode power supply Class-D amplifier integrates a low-noise, 32-bit DSP circuit, controlled through the RCF RDNet network to handle the clipping limiters, RMS limits, polarity, amplitude, timing, and equalization. All settings, monitoring, and advanced features are available inside the integrated RDNet Networked Management software. The rear-panel encoder adjusts volume, delay, and presets.
Sturdy Cabinet
The cabinet is made of high-quality birch plywood with weatherproof treatments. The sub is stackable and lightweight for easy setup and tear down. The polyurea coating and rugged structure of the cabinet survive long-term use and transportation while the separate housing for the amplifier guarantees component efficiency and reliability. A pole receptacle on top and side allows the woofer to be deployed in various situations.
Hyper-Vented Woofer
The 18″ woofer features a lightweight neodymium magnet, inside-outside copper voice coil, and silicon double spiders. In order to dissipate the heat generated by the powerful voice coil, RCF engineers have developed an internal ventilation system with low power compression. The Hyper Ventilation System is the result of a complex combination of ventilation ducts in the voice coil former, in the magnetic structure, and in the woofer’s basket. Demodulation rings reduce the harmonic and intermodulation distortion due to voice coil displacement, and as input current varies, the system inductances are more linear. The cone is water-resistant.
Vented Ports
The airflow in the vented ports suffers the turbulence of the air due to the speed of air. The improved vented port is a proprietary solution that enhances aerodynamic behavior of the air, thereby gaining efficiency and reducing distortion.
RDNet Control
RDNet is a proprietary protocol that provides straightforward monitoring and intuitive control of the audio system down to every device and object. Each device has its own DSP, giving the possibility to address presets or parameters specific to single or groups of objects. A network user can change level, delay, EQ, and advanced subwoofer configurations.

Features

  • For Live Stage, Theater, and Clubs
  • 18″ Hyper-Vented Neodymium Woofer
  • 30 to 400 Hz Frequency Response
  • 2800W of Class-D Amplification

Specs

Acoustical specifications



FREQUENCY RESPONSE:
30 Hz ÷ 400 Hz



MAX SPL @ 1M:
137 dB

Transducers



WOOFER:
18” neo, 4.0” v.c

Input/Output section



INPUT SIGNAL:
bal/unbal



INPUT CONNECTORS:
XLR, RDNet Ethercon



OUTPUT CONNECTORS:
XLR, RDNet Ethercon



INPUT SENSITIVITY:
4 dBu

Processor section



HI-PASS FREQUENCIES:
30 Hz, 40 Hz



LOW-PASS FREQUENCIES:
Variable from 50 Hz to 100 Hz



PROTECTIONS:
Thermal, RMS



LIMITER:
Fast Limiter



CONTROLS:
Gain, Eq, Preset Switch, Output Delay

Power section



TOTAL POWER:
2800 W Peak, 1400 W RMS



COOLING:
Forced



CONNECTIONS:
Powercon IN/OUT

Standard compliance



CE MARKING:
Yes

Physical specifications



CABINET/CASE MATERIAL:
Baltic birch plywood



HARDWARE:
2 x M20



HANDLES:
2 x Side



GRILLE:
Steel



COLOR:
Black

Size



HEIGHT:
708 mm / 27.87 inches



WIDTH:
540 mm / 21.26 inches



DEPTH:
732 mm / 28.82 inches



WEIGHT:
52 kg / 114.64 lbs

Shipping informations



PACKAGE HEIGHT:
780 mm / 30.71 inches



PACKAGE WIDTH:
800 mm / 31.5 inches



PACKAGE DEPTH:
610 mm / 24.02 inches



PACKAGE WEIGHT:
56.8 kg / 125.22 lbs



Additional information
Weight 57 g
Dimensions 80 × 78 × 61 mm
