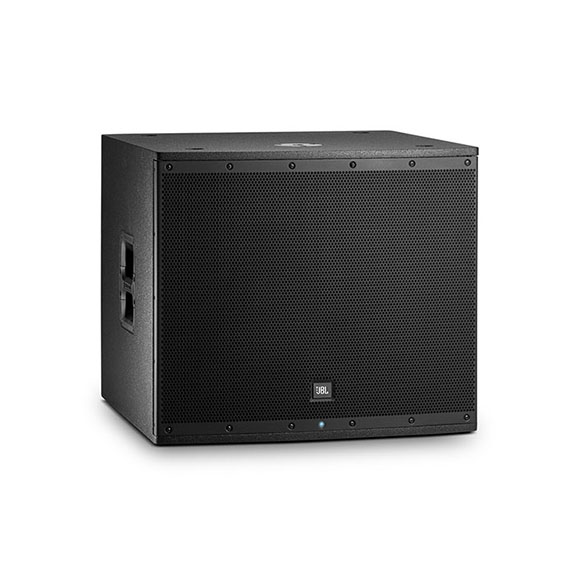

18″ Self-Powered Subwoofer
The EON618S is a powered portable PA subwoofer in the EON600 series from JBL Professional. It has been designed to deliver class leading performance in a variety of applications supporting EON600 and other full range systems. A lightweight, highly useful enclosure allows the speaker to be easily transported and set up wherever low frequency reinforcement is needed.
FEATURES
- JBL Premium Transducers
- 1000 W highly efficient Class-D amplification
- Maximum SPL Output: 134dB
- System Type: Self powered 18" Subwoofer
- Frequency Range (-10dB): 31Hz – 150Hz
- Frequency Response (- 3dB): 42.5Hz – 150Hz
- Bluetooth Control
"¢ 3 Parametric EQs Hi & Lo Shelf "¢ Gain and Delay "¢ Save and Recall settings "¢ Polarity Inversion - JBL Engineered Crossover Presets
"¢ 80 Hz "¢ 100 Hz "¢ 120 Hz "¢ EON - M20 Pole Cup
- Rugged, stage-ready Duraflex enclosure
SPECIFICATIONS
| System Type | Self powered 18" Subwoofer | |
| Maximum SPL Output | 134 dB | |
| Frequency Range (-10 dB) | 31Hz -150Hz | |
| Frequency Response (-3 dB) | 42.5Hz – 150Hz | |
| System Power Rating | 1000W Peak, 500W Continuous | |
| Input Impedance | 22k (balanced) | |
| Line Input Gain | 0 to 36 dBu | |
| Line | 14dBu | |
| Connectors | 2 x Balanced XLR-1/4" combination inputs; 2 x male XLR loop thru out |
|
| LED Indicators | Front Power LED (Defeatable, white) Rear Power LED (White), Bluetooth (Blue), EQ (Green) Preset (Green) Signal (Green) Limit (Orange) | |
| Cooling | Passive | |
| AC Power Input | 100-120VAC 50/60Hz; 230-240VAC 50/60Hz | |
| AC Power Consumption (120V~) | 1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max), 1/3rd Power – 2.03A (Max) |
|
| LF Driver | 1 x JBL 618H 457mm (18") woofer with 2" voice coil | |
| Crossover Frequency | Selectable; 80 Hz, 100 hz, or 120 Hz | |
| Material | Duraflex coated wooden enclosure | |
| Suspension/Mounting | M20 Threaded Pole Cup | |
| Handles | 2 | |
| Grille | Powder coated, Obsidian, perforated steel with acoustically transparent black cloth backing | |
| Dimensions (L x W x H) | 582mm x 668mm x 645mm (22.9" x 26.3" x 25.4") |
|
| Weight | 72 lbs (35.5 kg) | |
| Shipping Weight | 91 lbs (41.2 kg) | |
| Shipping Dimensions (L x W x H) | 803mm x 768mm x 631mm (31.6″ x 30.2″ x 25.1″) |
ACCESSORIES
JBL GAS ASSIST SPEAKER POLE
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use "œZ" knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)
JBL MANUAL ADJUST SPEAKER POLE
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic "œZ" knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)
