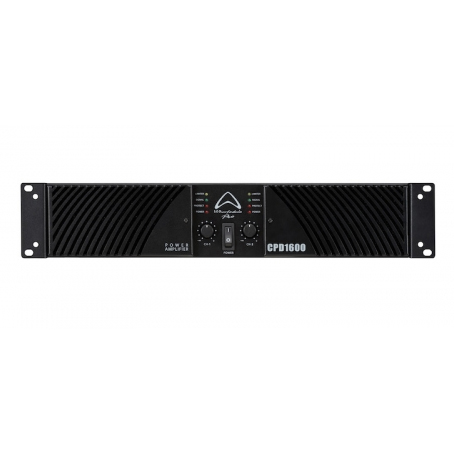

Wharfedale CPD 1600 2 X 600W RMS @ 4Ohm Power Amplifier

R8,492.00

Found this product at a lower price?

Class AB 2U Stereo Amplifier; 600w RMS @ 4ohms/ch; 400w RMS @ 8 ohms/ch; 1600w bridged @ 4ohms;
Switchable Limiter, Thermal protect, Over-current protect, Output DC protect, Output short protect, Power
on/off mute

SKU: WHAR-CPD 1600 Categories: ,
Description

The CPD1600 is part of Wharfedale Pro’s latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.

The CPD1600 is part of Wharfedale Pro’s latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.

For using in stereo the amplifier delivers 400W RMS per channel at 8 Ohms and 620W RMS per channel at 4 Ohms; a suitable power for small to medium sized complete PA systems. In bridged mode at 4 Ohms the amplifier generates 1600W RMS, perfect for powering a subwoofer integrated into a larger PA system for example.

Maximum headroom audio fidelity and durability are of course vital, whilst additionally we pride ourselves on unbeatable value. The CPD series is manufactured under our strict quality assurance as are all Wharfedale Pro products, making an amp you can trust from price to performance.

Key Features

  • 8 Ohms x 2: 400W RMS
  • 4 Ohms x 2: 620W RMS
  • 8 Ohms Bridged: 1200W RMS
  • 4 Ohms Bridged: 1600W RMS
  • Class AB Technology
  • Status and clip LEDs
  • Thermal, overcurrent, DC and output short protect circuitry
  • 2 x Speakon outputs
  • 2 x XLR outputs to link other audio equipment
  • 2 x XLR inputs
  • Peak and protect LEDs
  • Built-in switchable limiter
  • Continuously variable speed fan
  • Suitable for small to medium sized venues



Technology

Working in stereo, parallel and bridged modes CPD1600 is built for a multitude of sound system formations. Brand new class AB topology has resulted in a dynamic, high headroom amp made for propelling your loudspeakers through thick and thin with complete clarity.

Precision Control

Large rotary dials accurately adjust gain levels, and you will know when to do so from the clear and simple front panel. A 4 segment led formation displays shows vital power status, level, limit and protect information, keeping the sound engineer in the know.

Protection & Durability

The CPD1600 is rife with technology that offers complete protection for your peace of mind. A built-in switchable limiter allows over 8Vrms signal through without distortion. Additionally it is equipped with thermal, overcurrent, DC and output short protect features. Professional audio equipment is an investment. That is why the adept components of the amplifier are housed within a 2U steel chassis which is universally rack mountable. This hard wearing all-steel casing also features a removable air filter in the front bracket which can be cleaned or replaced easily.

Easy Cleaning

Amplifiers often work in hot and dusty environments and, over time, the fans of an amplifier can easily suck this in. Dirty cooling fans reduce efficiency and can lead to overheating. Its for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on. This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments.

SPECIFICATIONS

Stereo Power Output
8 Ohms x 2 400W RMS
4 Ohms x 2 620W RMS
Bridged Mono Output
8 Ohms 1200W RMS
4 Ohms 1600W RMS
Inputs 2 x XLR
Outputs 2 x XLR, 2 x Speakon
Frequency Response 20Hz – 30KHz
Topology Class AB
Sensitivity 0dBu (0.775Vrms)
Input Impedance 20K Ohms
Maximum Input Level 22dBu (9.7Vrms)
Slew Rate >40V / us
Crosstalk <-70dB
Signal to Noise >100dB
Protection Switchable Limiter, Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
Display 4 segment LED
Cooling Variable Speed Fan
Dimensions 88 x 483 x 322mm
Net Weight 17kg / 37.48lbs
Gross Weight 19kg / 41.89lbs
