Allen & Heath GR3 1U Rack Mount Zone Mixer

Call For Price

Found this product at a lower price?

Rack Mount Zone Mixer

Description

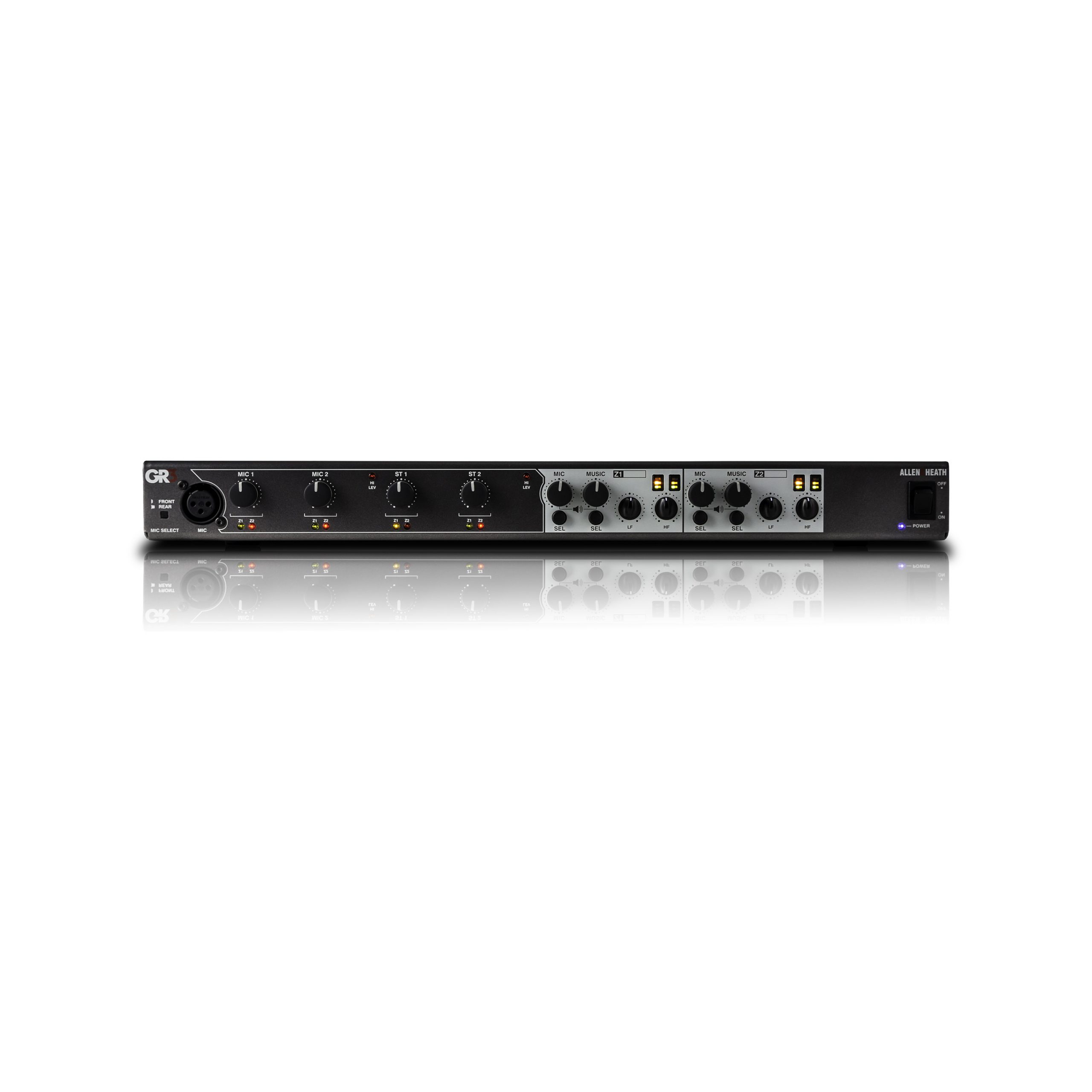

GR3 is a 1U rack-mounting or desktop audio mixer, providing simple yet comprehensive control of background music and paging in bars, restaurants, stores and other leisure / retail environments. Standout features include optional remote wallplates and a mic input on the front panel.

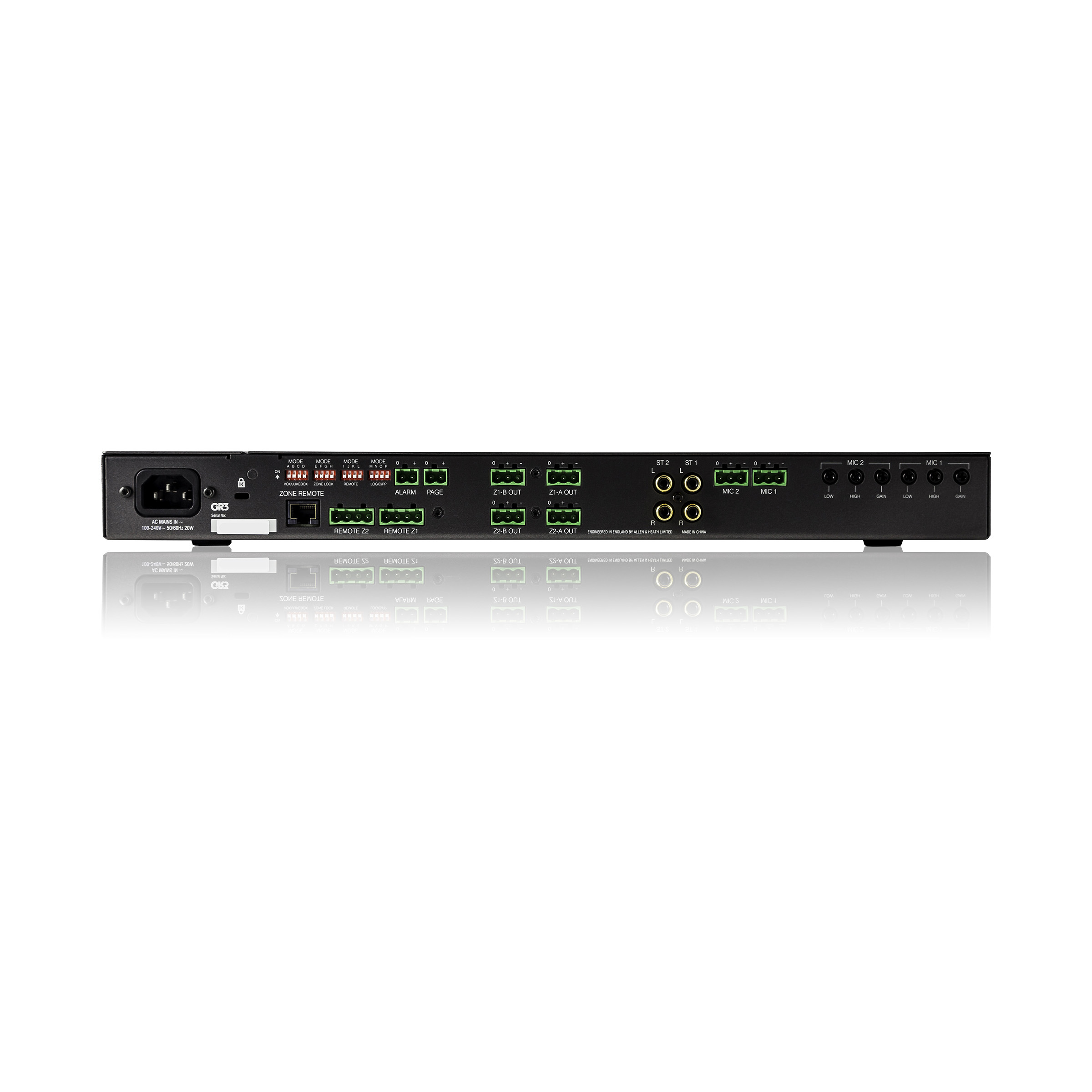

Connectivity

MIC INPUTS

Two mic inputs on rear mount Phoenix connectors with MIC1 selectable to an optional front mounted XLR.

LINE INPUTS

Two stereo inputs on rear mount phono connectors.

ZONE OUTPUTS

Two stereo (mono selectable via internal jumper) zones on rear mount Phoenix connectors.

CONTROL

Paging and Alarm contact inputs on rear mounted Phoenix connectors allow integration with 3rd party paging stations and fire alarm systems.

REMOTE

Remote control can be achieved via PL-14 Remote connected to the rear mounted RJ45 or custom/3rd party analogue remotes connected to the rear mounted Phoenix connectors.

PL-14 REMOTE CONTROL

"¢ Rotary Volume control with four source select switches.

"¢ Connection via standard Cat5e cabling.

"¢ RJ45 Link through connector for adding additional controllers (Maximum of two).

"¢ Three versions to suit UK, EU or US standard front panels.

Features

MIXING

Individual mix and selectable control of all inputs to Z1 & Z2.

DYNAMICS

Gain and 2 band EQ available on all mic inputs with an additional 2 band EQ available on Z1 & Z2 outputs.

PRIMARY MIC MODE

When audio sensed on MIC1 channel and/or PAGE contact closure is sensed then music is faded to pre-set level and MICSs2-4 muted for the duration of the announcement. MIC1 zone select LEDs flash slowly when in priority mic mode.

Gain / volume rotary controls can be removed and capped (caps supplied) to prevent unauthorised use.

INSTALLER SELECTABLE MODES, INCLUDING:

Primary and secondary mic modes

Perfect for controlling hierarchal microphone feeds such as simple paging announcements.

Emergency mic mode

For use with 3rd party systems in emergency situations. Mutes all inputs except MIC1 on alarm contact closure.

Juke box mode

Provides a priority line input to the system for pre-recorded announcements or programme material such as Sports channels.

ADVANCED FEATURES

Entering programming mode allows the following parameters to be adjusted:

Ducker attenuation

Ducker hold time

Ducker release time

Music crossfade time

Jukebox hold time

Jukebox release time

Additional information

Weight	2 g
Dimensions	48 × 22 × 5 mm
Hybrid Condensers
Brand	ALLEN & HEATH
