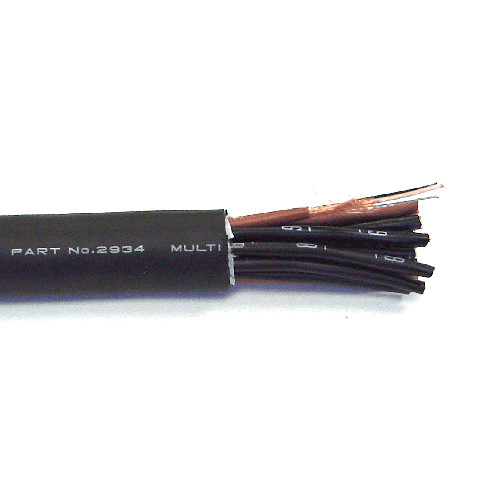

MOGAMI W3044 16-Channel Multicore Microphone Snake Cable

MOGAMI W3044 16-Channel Multicore Microphone Snake Cable

Call For Price

Found this product at a lower price?
  Check Stock & Price

16-Channel Multicore Microphone Snake Cable

SKU: W3044 Categories: ,
Description

Description

ELECTRICAL & MECHANICAL CHARACTERISTICS

DC Resistance at 20°C
Inner Pair Conductor 0.13Ω/m(0.040Ω/Ft)
Shield 0.031Ω/m(0.0095Ω/Ft)
Capacitance at 1kHz, 20°C (Partial Capacitance Value) See Figure (1) K0 130pF/m(40pF/Ft)
K1 12pF/m(3.7pF/Ft)
Inductance 0.6µH/m(0.18µH/Ft)
Electrostatic Noise (Hum Pick-up)* 2.5mV Max.
Electromagnetic Noise at 10kHz*
   (Inductance of the toroidal core: 595µH)		 0.1mV Max.
Microphonics*
   Method: Stepping on cable		 50mV Max. at 50kΩ/ Load
Voltage Breakdown Must withstand at DC 500V/15sec.
Insulation Resistance at DC 125V, 20°C 100000 MΩ/ × m Minimum
Tensile Strength of one pair (26°C, 65% RH) 274N
Emigration Non-emigrant to ABS resin
Applicable Temperature -20°C‾ 70°C(-4°F‾ 158°F)
Standard UL13 CL2X 60°C / UL 20002 AWM 30V 60°C VW-1

Part No. No. of Channels Ov. Dia. (Approx. mm) Jacket Thickness (Approx. mm) Weight (kg/100m)(kg/328Ft) Maximum Lengths available
W3040 2-ch 7.8(0.307″) 1.0(0.039″) 8 305m (1,000Ft)
W3041 4-ch 9.0(0.354″) 1.0(0.039″) 10
W3042 8-ch 12(0.472″) 1.2(0.047″) 19
W3043 12-ch 14.6(0.575″) 1.3(0.051″) 29
W3044 16-ch 16.3(0.642″) 1.4(0.055″) 36
W3045 19-ch 17.5(0.689″) 1.7(0.067″) 44
W3046 24-ch 20.5(0.807″) 2.0(0.079″) 57
W3047 27-ch 21.0(0.827″) 2.0(0.079″) 63
W3048 32-ch 22.4(0.882″) 2.0(0.079″) 73
W3049 48-ch 27.0(1.063″) 2.0(0.079″) 104 200m (656Ft)
Conductor
7/0.18A (0.178mm²) #25AWG                 (7×#33AWG)
Insulation 1.05Ø XLPE (Cross Linked Polyethylene)   (0.0413″)
Drain Wire 7/0.18A (Exactly same as conductor)
Shield Approx. 58/0.10A Served (spiral) Shield
Jacket (Covering) 2.8Ø Flexible PVC                                                (0.110″)
Identification See core number identification table

Additional information
Weight 36 g
Dimensions 100 × 100 × 43 mm
