Multi-Track Live Recording Console
Model 24
Recording. Reinvented.
24 Channel Multitrack Recorder with Integrated USB Audio Interface and Analog Mixer
TASCAM has been continuously providing industry-leading recording solutions for decades, such as the TASCAM 38 Open Reel 8-track, the DA-88 Digital 8-track and the legendary Portastudio Cassette and Digital Multitrack recorders. TASCAM now builds on this legacy to deliver a new classic: the Model 24 Multitrack Recorder/Mixer/Interface.
Whether used for rehearsal, live shows or studio production, this triple-function recording console perfectly meets the needs of today’s working and recording musician

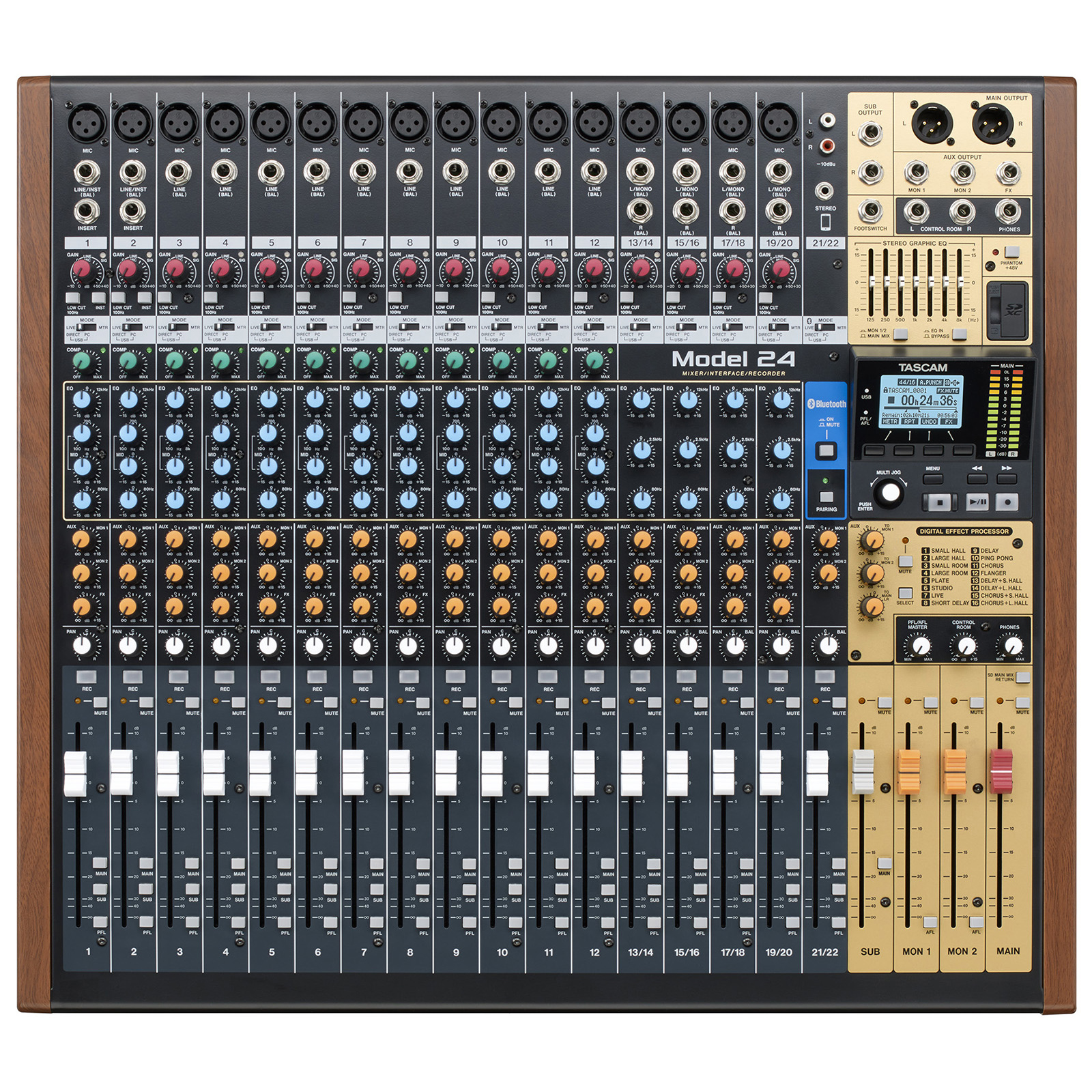

Simple, Intuitive Design
One glance is all you need. The TASCAM Model 24 was developed for easy operation, with everything you need placed right at your fingertips. 100mm faders allow for precise control over volume. A full set of familiar EQ and Auxiliary knobs remove the need for menu diving, and all input/output connections are on the surface for quick and easy access.
The Model 24 is truly a modern take on a classic design.
TASCAM’s Revolutionary Recording Technology
Featuring 16 high-grade TASCAM mic preamps in addition to multiple sets of stereo line inputs, the Model 24 delivers studio quality audio performance right from the start. When it’s time to record the TASCAM Model 24 allows musicians and engineers to capture up to 24 tracks simultaneously (at 24bit/48kHz resolution) directly to the SD card, with the ability to punch in/out eight tracks at the same time. And once the take is done, the Model 24 can easily playback any or all of the recorded tracks through the console for mixdown.
Flexible Connectivity
In addition to the studio quality mic preamps and powerful EQ and routing options, the Model 24 features a dedicated stereo channel 1/8", dual RCA and Bluetooth® connectivity. This allows users to easily integrate mobiles devices into the mix for rehearsal playback, walk-in music and more. Finally, the TASCAM Model 24 can also act as a powerful audio interface, and connects directly to your PC or Mac for easy integration with your DAW of choice.
Durability and Reliability
Designed to be both lightweight and rugged, the Model 24 can easily be carried from studio to stage with the confidence that TASCAM’s legendary reliability will keep the music going.
Features at a glance
- All-in-One, Multitrack Recorder with 22 channel Mixer and USB Audio Interface
- WAV 48kHz/24-bit, 24 channel multitrack recording to SD, SDHC and SDXC cards
- Built-in USB Audio Interface to send/receive audio data to/from DAW
- 22 Inputs (20 Balanced, 12 Monaural, and 4 Stereo)
- 16 TASCAM Microphone Preamps
- Input Mode switch on every input channel
- TASCAM Ultra-HDDA Mic Pre-amp (Channels 1 to 12)
- Preamp Gain Controller with Overload indicator (Channels 1 to 12)
- 3-band EQ with a sweepable mid-range frequency (Channels 1 to 12)
- 100kHz Low-cut Filter (Channels 1 to 12)
- 7-band Graphic EQ
- 16 Pre-set Effects
- 100mm Long-throw Faders for precise adjustment
- Mute, Main/Sub, PLF switches on every input channel
- Bluetooth ® input supporting both AAC and SBC codecs
- SUB Outputs via XLR Balanced and RCA Unbalanced connectors
- LINE Inputs via RCA Pin and …›” Stereo Mini jacks
- 3 AUX Outputs (Monitor 1, Monitor 2, FX)
- 1 Stereo Output for Control Room
- Phantom Power ( 48V)
- ¼” Stereo Headphone Output
- Backlit buttons for key operations such as REC and Play
- Multi Jog-dial for quick menu operation
- 12-segment LED Output Level Meters
Spec description
| Recording section | |
| Supported Media | SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB), Class 10 or higher required. |
| File System | SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT |
| Recording File Format | WAV(BWF) |
| Playback Format | WAV(BWF) |
| Sampling Frequency | 44.1k / 48k Hz |
| Bit Depth | 16 / 24-bit |
| Recordable Channel | Max. 24 channels (22ch 2 stereo mix) |
| Audio Inputs | |
| MIC IN | CH1 to 12, 13/14 to 19/20 |
| Connector | XLR 3-31 (1: GND, 2: HOT, 3: COLD) |
| Maximum Input Level | 10dBu |
| Nominal Input Level | -8dBu |
| Minimum Input Level | -58dBu |
| Gain Adjustable Range | 0 to 50dB |
| Input Impedance | 1.8k Ohm |
| Phantom Power supply | 48V |
| LINE IN | CH1 to 20 |
| Connector | 1/4″ (6.3mm) TRS Phone jack (Balanced) |
| Maximum Input Level | 22dBu |
| Nominal Input Level | 4dBu |
| Gain Adjustable Range | -10 to 40dB: CH1 to 12, 20 to 30dB: CH13/14 to 19/20 |
| Input Impedance | 22k Ohm |
| INSERT | CH 1 and 2 |
| Connector | 1/4″ (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND) |
| Return (Ring) | |
| Maximum Input Level | 18dBu |
| Nominal Input Level | 0dBu |
| Input Impedance | 10k Ohm |
| Send (Tip) | |
| Maximum Output Level | 18dBu |
| Nominal Output Level | 0dBu |
| Output Impedance | 100 Ohm |
| RCA INPUT | |
| Connector | RCA Pin jack (Unbalanced) |
| Maximum Input Level | 8dBV |
| Nominal Input Level | -10dBV |
| Input Impedance | 10k Ohm |
| STEREO INPUT | |
| Connector | 1/8″ (3.5mm) Stereo Mini jack (Unbalanced) |
| Maximum Input Level | 8dBV |
| Nominal Input Level | -10dBV |
| Input Impedance | 10k Ohm |
| OUTPUTS | |
| MAIN OUTPUT | |
| Connector> | XLR 3-32 (1: GND, 2: HOT, 3: COLD) |
| Maximum Output Level | 22dBu |
| Nominal Output Level | 4dBu |
| Output Impedance | 100 Ohm |
| SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT | |
| Connector> | 1/4″ (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND) |
| Maximum Output Level | 16dBu |
| Nominal Output Level | -2dBu |
| Output Impedance | 100 Ohm |
| PHONES OUT | |
| Connector | 1/4″ (6.3mm) Stereo Phone jack |
| Output Level | 80mW 80mW (32 Ohm loaded) |
| REMOTE | Compatible with TASCAM RC-1F Foot Switch |
| Connector | 1/4″ (6.3mm) TS Phone jack |
| USB Audio | for connection with PC |
| Sampling Rate | 44.1k / 48k Hz |
| Bit Depth | 16 / 24-bit |
| Maximum INPUT and OUTPUT | 24 Inputs / 22 Outputs |
| USB | |
| Connector | USB B type 4-pin |
| Format | USB2.0 High-Speed, Mass-storage class/USB Audio Class |
| Bluetooth ® | |
| Output Class | Class 2 (Transmission range: approx. 33ft. / 10 m) * Transmission range may vary, depending on surroundings. |
| Bluetooth ® version | 4.0 |
| Supported Profile | A2DP, AVRCP 1.0 |
| Supported A2DP Codecs | SBC, AAC |
| A2DP Content Protection | SCMS-T |
| Channel EQ | |
| Low-Cut | 100Hz, -18dB / Octave |
| Hi-Shelving | 15dB / -15dB, Cut off frequency: 12kHz |
| Mid | Peaking (MONO): 15dB / -15dB, 100Hz to 8kHz Variable (STEREO): 15dB / -15dB, Center frequency = 600Hz MID Band Q Fix, 0.55 |
| Low-Shelving | 15dB / -15dB, Cut off frequency = 80Hz |
| Graphic EQ | |
| Band | 7-Band |
| Frequency | 125 / 250 / 500 / 1k / 2k / 4k / 8k Hz |
| Gain | 15dB / -15dB |
| FX | |
| Type | 1: SMALL HALL / 2: LARGE HALL / 3: SMALL ROOM / 4: LARGE ROOM / 5: PLATE / 6: STUDIO / 7: LIVE / 8: SHORT DELAY/ 9: DELAY / 10: PING PONG / 11: CHORUS / 12: FLANGER / 13: DELAY S.HALL / 14: DELAY L.HALL / 15: CHORUS S.HALL / 16: CHORUS L.HALL |
| Power | AC 100 to 240V, 50/60Hz |
| Power Consumption | 52 W |
| Dimensions (W×H×D) | 576 × 513 × 112.5 mm (including side panels, knobs and connectors) 540 × 503 × 112.5 mm (excluding side panels. including knobs and connectors) |
| including Side panels | 22.67″ × 20.20″ × 4.43″ / 576 × 513 × 112.5 mm (including knobs and connectors) |
| excluding Side panels) | 20.26″ × 19.80″ × 4.43″ / 540 × 503 × 112.5 mm (including knobs and connectors) |
| Weight | 22.04 lbs. / 10 kg |
| Operating Temperature | 41Ëš to 95ËšF / 5Ëš to 35ËšC |
| Included Items | AC Cord, Owner’s manual (incl. Warranty card) |
| Available Accessories | TASCAM RC-1F Footswitch |
