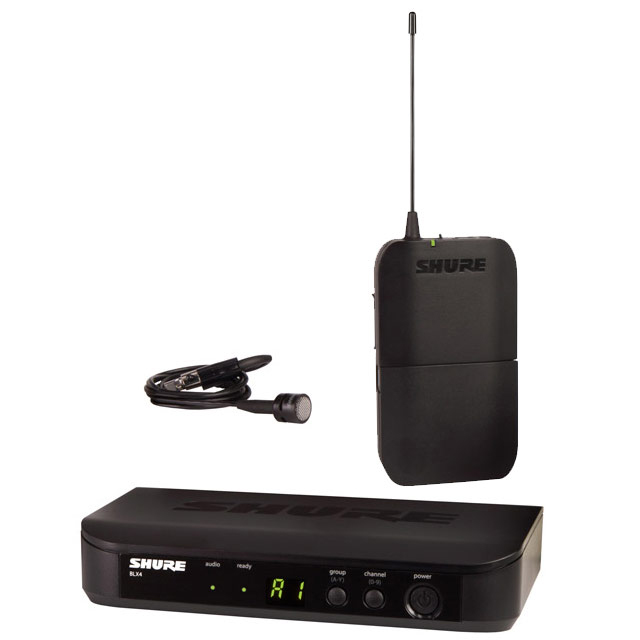

WIRELESS PRESENTER SYSTEM WITH WL185 LAVALIER MICROPHONE
Premium cardioid lavalier microphone with analogue wireless transmission
The BLX14/W85 Presenter System with WL185 brings a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, this lavalier uses an interchangeable condenser cartridge, meaning there will always be a lavalier to suit your application. With analogue wireless transmission.
MAIN FEATURES
- Available Transmitter Form factors: Bodypack
- Operating range (up to): 100 m (Under typical conditions)
BLX4 Wireless Receiver
- Up to 12 compatible systems (region dependent)
- Microprocessor-controlled internal antenna diversity
- One touch QuickScan locates the best open frequency
- ¼” and XLR audio outputs
- Two color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)

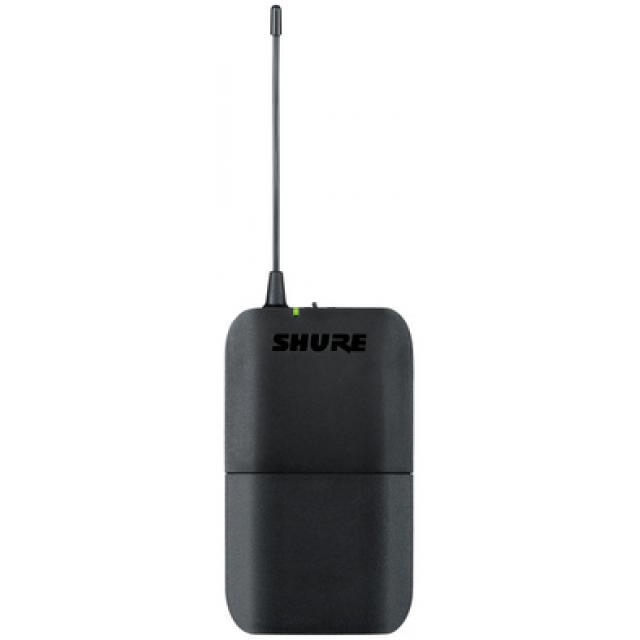

BLX1 Wireless Bodypack Transmitter
- Power and battery status LED
- Adjustable gain control
- Quick and easy frequency matching
- AA batteries (included) provide up to 14 hours of continuous use
- 100 m (300 ft.) operating range (line of sight)

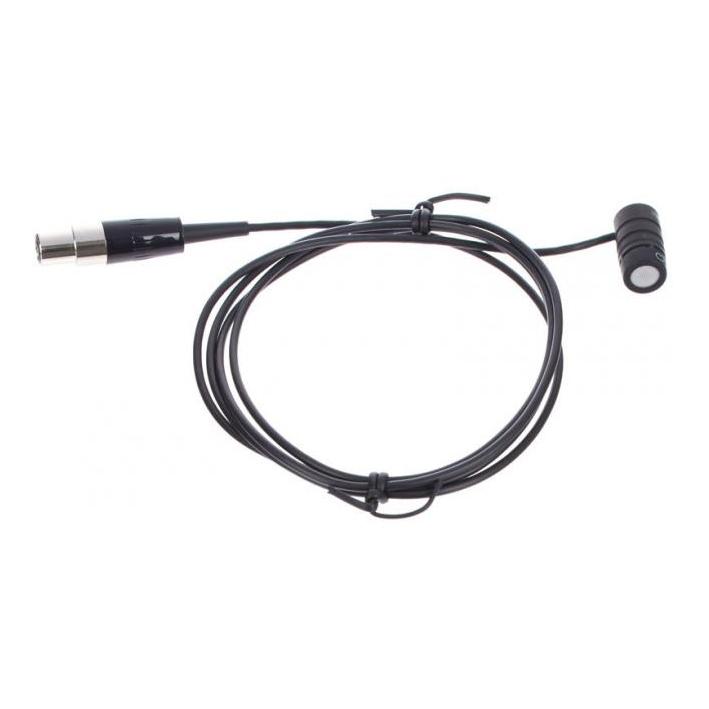

Cardioid TQG Lavalier Microphone
- Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
- Interchangeable cartridges that provide an optimal choice for each application
- Rotatable tie-clip that pivots in 90 degree increments for placement flexibility
- Supplied snap-fit foam windscreen that controls breath noise and stays on securely
- Supplied dual tie clip holds two microphones for dual miking applications
FURNISHED ACCESSORIES
| AMOUNT | PART TITLE |
|---|---|
| 1 | Power SupplyPART PS24E |
| 1 | Carrying CasePART 95E16526 |
TECHNICAL SPECIFICATIONS
BLX14/W85 Specifications
Set Type:
Presenter
Amount of Bodypacks:
1
Amount of TQG Mics:
1
BLX4 Specifications
Weight:
241 g
Height x Width x Depth:
40.0 “— 188.0 “— 103.0 mm
Transmission:
Analog
Type of Power Supply:
External
Receiver Housings:
Molded ABS
Active Antenna Possible:
No
Bias via BNC:
No
Encryption:
No
High Density Mode:
No
Interference Detection:
No
Remote Control:
No
Number of compatible systems per frequency band:
Up to 12
DANTE-Enabled Products:
No
Scan Features:
Quick Scan
Sync Features:
None
Detachable Antennas:
No
Network ability:
No
Software control :
No
Logic:
No
Cascade:
No
Rack Hardware:
Optional: URT2
Receiver Displays:
LEDs
Receiver type:
Single
Line Mic Switch:
No
Image Rejection:
50 dB, typical
RF Sensitivity:
-105 dBm, for 12dB SINAD, typical
Phantom Power Protection:
No
BLX1 Specifications
Weight:
75 g
Height x Width x Depth:
110.0 “— 64.0 “— 21.0 mm
Battery life alkaline:
14 h
Form Factor:
Bodypack
Transmitter housings:
Molded ABS
Audio Mute:
No
Detachable Antennas:
No
Switchable RF power:
No
Batteries:
AA
Battery Status:
Multi-Color LED
Connectors:
TQG
Frequency Diversity:
No
Functionality:
Transmitter
Gain adjustment range:
26 dB
High Density Mode:
No
Included antenna:
1/4 wave
Input impedance:
1000 k Ohm
Transmission:
Analog
WL185 Specifications
Weight:
28 g
Frequency Response:
50 Hz "“ 17 kHz
Frequency Response:
Tailored
Sensitivity:
-35.00 dBV/Pa "“ 17.00 mV/Pa
Self-Noise:
28 dB(A)
Transducer Type:
Condenser
Polar Pattern:
Cardioid
Switchable low cut:
No
Connectors:
TQG (T4AF, 4-Pin Mini)
Attenuator:
No
Interchangeable Capsule:
No
Main Functionality:
Performance
Headphone Output:
No
Cartridge:
Interchangeable
