Description

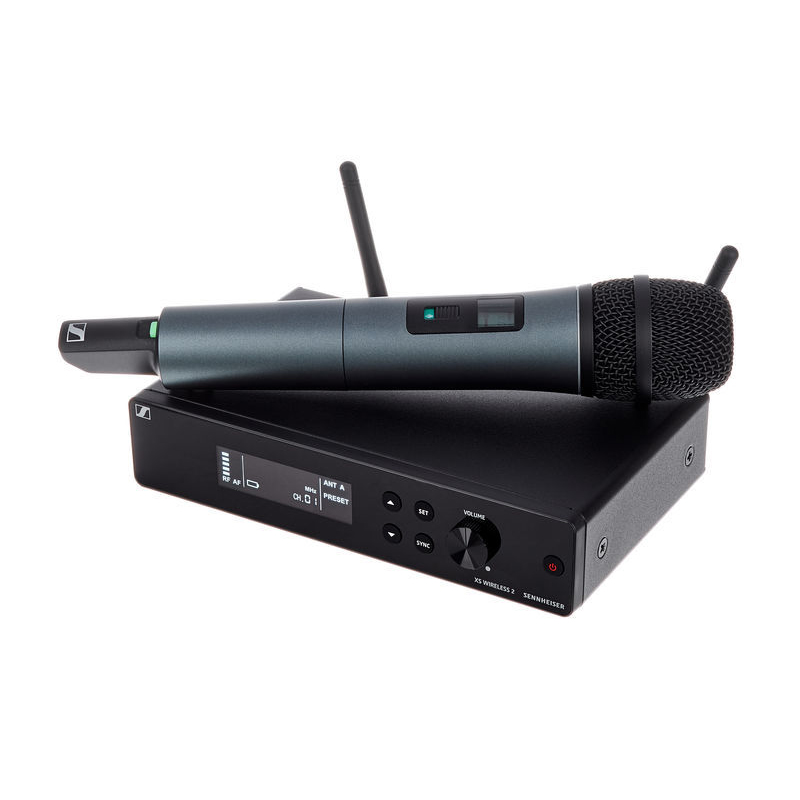

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.
Features
- For Live Sound Applications
- e835 Evolution Microphone Capsule
- True Diversity Receiver
- Up to 12 Compatible Channels
- External Antennas
- Automatic Frequency Synchronization
- Remote Channel for Easy Setup
- Tunable Over a Range of UHF Frequencies
- Includes Rackmount Kit
- AA Batteries, Power Supply & Pouch
Specs
System
| Modulation | Wideband FM |
| Frequency Range | A: 548 to 572 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Frequencies | Adjustable in 25-kHz steps 8 frequency banks, each with up to 12 factory-preset channels |
| Signal to Noise Ratio | ≥ 103 dBA |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Temperature Range | Operation: 32 to 104°F (0 to 40°C) Storage: -4.0 to 158°F (-20 to 70°C) |
| Transmitter Synchronization | 2.4 GHz, low power OQPSK (only active during synchronization) |
Receiver
| Principle of Operation | Double superheterodyne |
| Diversity Method | True diversity |
| Sensitivity | < 3 µV at 52 dBA rms S/N at (peak deviation) |
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |
| Maximum AF Output Voltage | At peak deviation, 1 kHz AF 1/4″ (6.3 mm) Jack Socket (Unbalanced): 6 dBu XLR Socket (Balanced): 12 dBu At peak deviation, 1 kHz AF) |
| Adjustment Range | Audio: 40 dB, adjustable in 5-dB steps |
| Power Supply | Nominal Input: 100 to 240 VAC 50/60 Hz Input Current: 200 mA (Max.) Nominal Output: 12 VDC 300 mA |
| Squelch | Adjustable from 3 dBμ V to 28 dBμ V (combined with pilot tone) |
| Line/Mic Level | 20 dB, switchable |
| Housing Material | Rugged metal housing |
| Dimensions (W x H x D) | 7.9 x 1.7 x 5.0″ (200 x 42 x 127 mm) |
| Weight | 24 oz (680 g) |
Transmitter
| RF Output Power | 10 mW |
| AF Frequency Response | 80 Hz to 16 kHz |
| Power Supply | 2 x AA size batteries, 1.5 V |
| Operating Time | Approximately 10 hours |
| Microphone Type | Dynamic |
| Input Sensitivity | Capsule: 1.5 mV/Pa |
| Polar Pattern | Cardioid |
| Sensitivity Adjustment | Range: 0 to -30 dB, adjustable in 10-dB steps |
| Housing Material | Rugged ABS housing |
| Dimensions (L x Diam) | 10.2 x 2.0″ (260 x 50 mm) approximate |
| Weight | 8.6 oz (245 g) approximate |
Packaging Info
| Package Weight | 5.2 lb |
| Box Dimensions (LxWxH) | 13.75 x 12.7 x 3.65″ |
