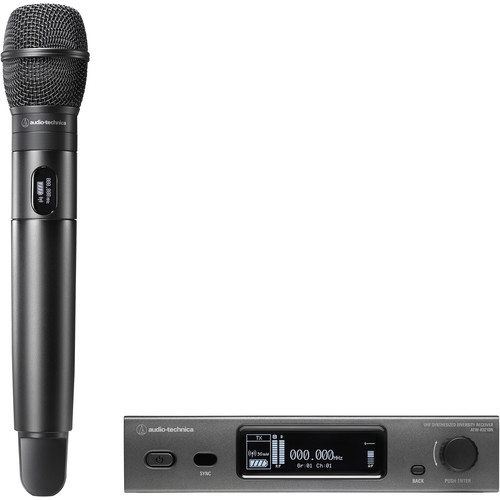

AUDIO TECHNICA ATW-3212/C710 Wireless Handheld Microphone System – DE2 Band

• The ATW-C710 condenser mic capsule is tailored for exacting detail and high-fidelity vocal reproduction.
• The capsule features a cardioid pattern for significant rejection of unwanted background sound and reduced feedback on stage.
• The handheld transmitter’s interchangeable capsule design (with an industry-standard thread) allows you to replace the C710 capsule with an Audio-Technica capsule that’s ideal for your application and simply screw it onto the transmitter—including the ATW-C510, ATW-C4100, ATW-C6100, ATW-C3300, and ATW-C5400 capsules as well as capsules from other manufacturers.
• The transmitter’s gain ranges from -10 to 20 dB and can be adjusted in 2 dB increments.
• The bright OLED screen presents comprehensive setup and operating information, including battery indicator, mute status, and operating frequency. Setup functions are menu driven via soft-touch controls, which are covered to prevent accidental changes.
• The multifunction button can be programmed to act as a mute switch or to switch to a clean backup frequency with minimal interruption in case of interference.
• The transmitter easily syncs to the receiver via infrared with a quick press on the Sync button.
• Two RF power output settings are available: the low-level setting extends battery life while the high level offers a stronger RF signal link.
• The transmitter operates for up to 9 hours on two AA alkaline batteries and up to 9.5 hours on two rechargeable AA NiMH batteries.
• Charging terminals on the base of the transmitter work with the optional ATW-CHG3 charging dock or ATW-CHG3N networked charging dock to recharge AA NiMH batteries.
• The durable metal chassis is equipped a secure, locking battery compartment door.

• The wide 60 MHz UHF bandwidth gives you 2400 selectable frequencies to choose from for interference-free audio transmission in an increasingly congested RF environment.
• To prevent dropouts, the receiver’s true-diversity reception compares incoming signals on two independent receiver circuits to ensure optimal RF quality.
• Auto-frequency scanning automatically selects the most appropriate frequency for the area in which the wireless is operating.
• Pre-coordinated frequency scan groups are available to simplify selection of usable frequencies in a multichannel wireless setup.

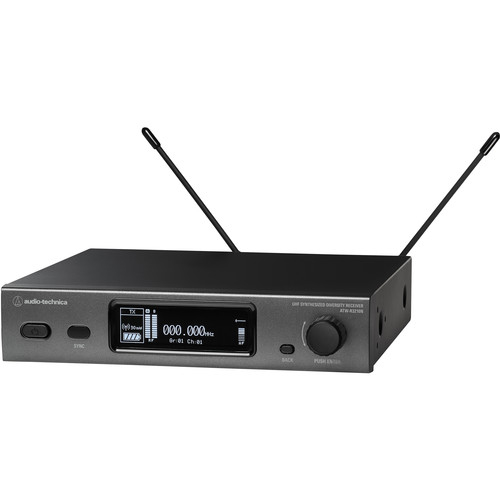

• The bright, dual-mode OLED display can be switched between two modes: the standard view provides continuous indication of RF signal strength, frequency, mute status, audio modulation level, and transmitter information, while the performance view highlights key metering.
• The display also shows the transmitter’s battery life and mute status.
• Settings can be quickly adjusted using the control dial and BACK button located on the receiver’s front panel. Settings can also be locked to prevent accidental changes.

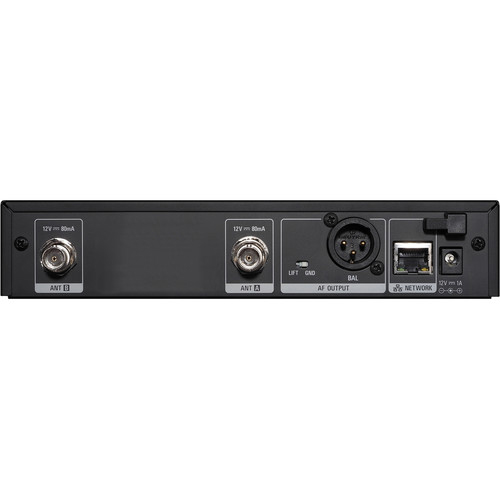

• The BNC sockets for the two detachable antennas provide bias power to active remote antennas and other in-line RF devices.
• The ground-lift switch on the back panel helps eliminate audible hum caused by ground loops.
• One balanced XLR audio output lets you connect the receiver to a mixing board or PA system.
• The half-rack receiver chassis can be mounted alone in a standard 19″ rack using the included mounting brackets and screws.

• The receiver features an Ethernet port, allowing users to configure, monitor, and control the system’s components remotely from a computer running Audio-Technica’s Wireless Manager software (WMS)—free download available separately.
• Once it identifies the cleanest channels, WMS takes into account intermodulation issues, builds a frequency plan for you, and deploys those frequencies to the networked receivers—saving you a lot of setup time and headaches.
• During the performance, you can use the monitor page to stay one step ahead of potential problems by keeping an eye on RF, AF, and the remaining battery life of the transmitters.

• Adding a pair of ATW-A49 LPDA directional remote antennas increases the range of your system and offers more protection against interference.
• The optional RF Venue DISTRO4 four-channel antenna distribution system allows you to distribute the RF signal from the remote antennas to four discrete 3000 Series receivers.

Audio-Technica offers the ATW-T3201 bodypack transmitter compatible with a variety of lavalier and headset mics and guitar cables to adapt your 3000 Series system as your needs evolve.

Presenters/Lecturers

• The AT831-cH cardioid lavalier mic that provides crisp, full-sounding voice pickup.
• The comfortable BP892xcH earset mic and the discreet BP893xcH miniature MicroEarset mic provide exceptional clarity in spoken word applications.

Guitarists

• The AT-GcH guitar cable lets you connect the bodypack transmitter to a guitar or bass.
