Description

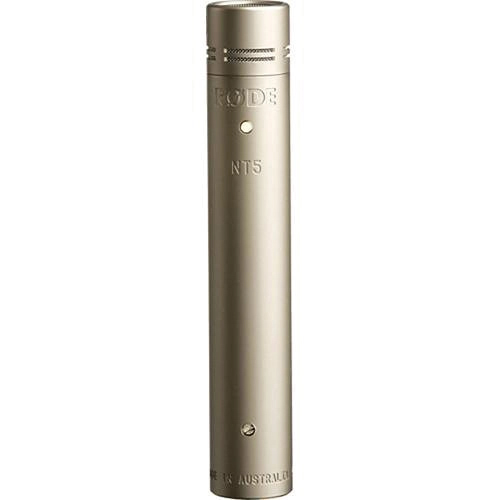

The Rode NT5 is a small diaphragm microphone featuring full frequency response and low-noise output circuitry. Designed for general instrument recording and sound reinforcement.
The cardioid polar pattern effectively minimizes audio at the off-axis sections, reducing noise caused by leakage, monitors, additional instruments, etc. The NT5 offers a frequency response of 20 Hz to 20 kHz allowing the microphones to be used in a wide variety of applications such as drum overhead miking, stereo capturing of instruments, vocal capturing, etc. The NT5 is powered via 24V or 48V phantom power. The package includes a windscreen, mic clip, and custom case.
Features
- For Recording and Live Performances
- For Instrument and Vocal Pickup
- Cardioid Polar Pattern
- Low-Noise Output
Specs
| Form Factor | Stand/Boom Mount |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | Condenser |
| Diaphragm | 0.5″ / 12.70 mm |
| Polar Pattern | Cardioid |
| Orientation | End Address |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Indicators | None |
| On-Board Controls | None |
| Windscreen | Foam (Included) |
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 143 dB SPL |
| Impedance | 100 Ohms |
| Sensitivity | -38 dB |
| Output Level | 13.9 mV |
| Dynamic Range | 128 dB |
| Signal-to-Noise Ratio | 78 dB A-Weighted |
| Equivalent Noise Level | 16 dB A-Weighted |
| Output Connectors (Analog) | 1 x XLR 3-Pin (on Mic) |
| Operating Voltage | 24 V 48 V |
| Color | Nickel |
| Mounting | Mic Clip (Included) |
| Construction Material | Brass |
| Dimensions | ø: 0.79 x L: 4.65″ / ø: 20 x L: 118 mm |
| Weight | 0.22 lb / 100 g |
| Package Weight | 0.865 lb |
| Box Dimensions (LxWxH) | 10.6 x 5.35 x 2.1″ |
