Description

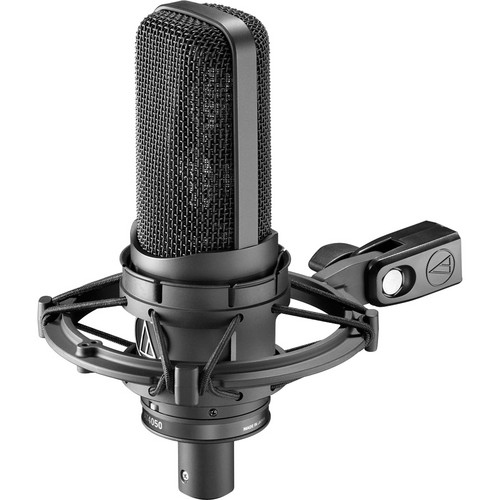

The AT4050 Multi-Pattern Condenser Microphone from Audio-Technica is a large-diaphragm side-address externally polarized condenser microphone with three switchable polar patterns: cardioid, omnidirectional, and figure-8. It can be used to capture audio for broadcast, studio, and sound reinforcement applications.
The AT4050 is powered by 48V phantom power and built with a 3-pin XLR output connector. It is equipped with a -10 dB pad that lowers the microphone sensitivity and provides higher SPL capability. This makes it applicable in a wide range of applications like vocals, piano, strings, drum overheads, and guitar amp capture. Its dual large diaphragms are gold-vaporized and aged for consistent, high-quality performance.

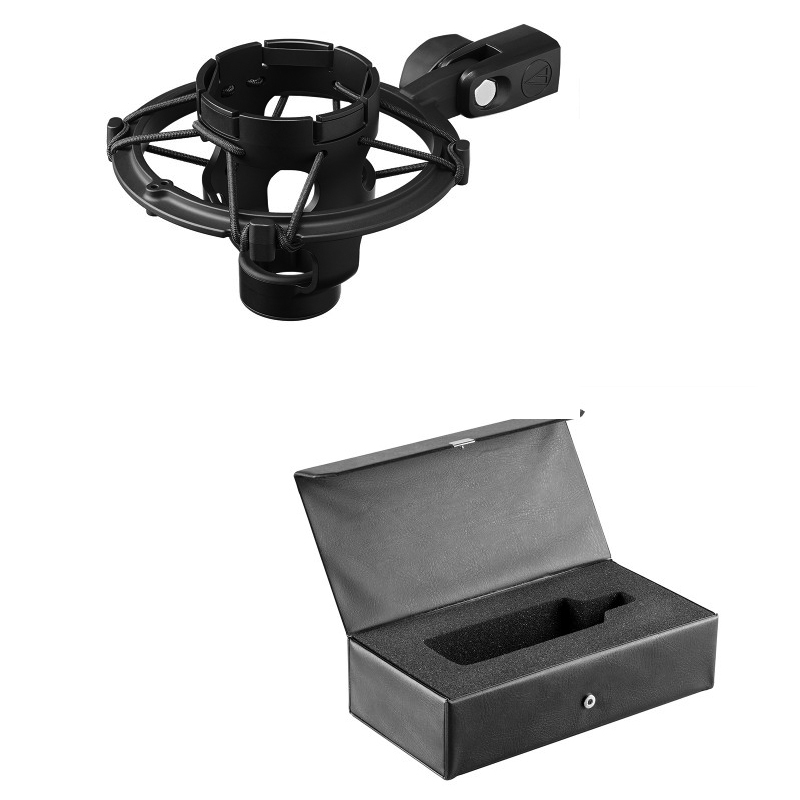

Furthermore, a precision-machined, nickel-plated brass acoustic element baffle provides solid element stability and maximum sensitivity. The AT4050 includes a shockmount, a microphone dust cover, and a protective carrying case.
Features
- Audio-Technica’s classic studio condenser vocal microphone
- Clean, crisp and accurate sound reproduction
- Ideal for both studio and live applications
- Versatile sounds with three switchable polar patterns
- Rugged and durable casing for reliable extended use
- Switchable 80 Hz hi-pass filter and 10dB pad
- Supplied with AT8449a shockmount for superior sonic isolation
Specs
| Element | Externally-polarized (DC bias) condenser |
| Polar Pattern | Cardioid, Omnidirectional, Figure-of-eight, Multi-pattern |
| Frequency Response | 20 – 18,000 Hz |
| Open Circuit Sensitivity | -36 dB (15.8 mV), re 1V at 1 Pa |
| Impedance | 100 ohms |
| Maximum Input Sound Level | 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal) |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave |
| Dynamic Range | 132 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 77 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 48V DC, 4.2 mA typical |
| Weight | 510g |
| Dimensions | 7.40″ (188.0 mm) long, 2.10″ (53.4 mm) maximum body diameter |
| Accessories Included | AT8449a shock mount for 5/8″-27 threaded stands; protective carrying case |
