Description

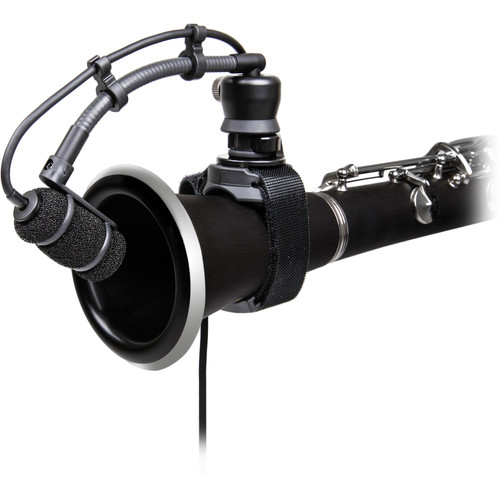

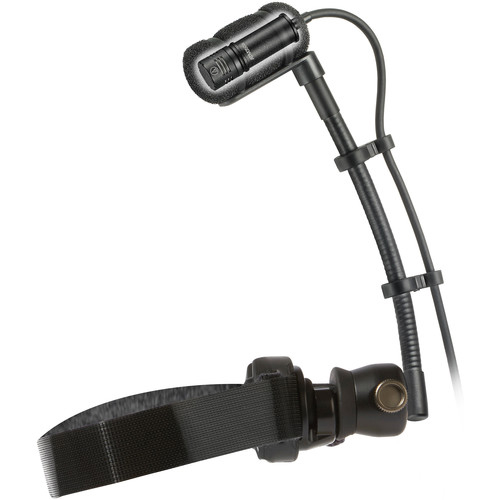

The Audio-Technica ATM350W Cardioid Condenser Instrument Microphone System includes the ATM350a cardioid condenser microphone, which is a high-SPL mic that provides a clear, well-balanced response from any instrument. When teamed with the included AT8491W woodwind mount and strong, flexible AT8490 5″ gooseneck, the mic can be securely fastened to any woodwind instrument and positioned to stay where you want it. The gooseneck’s rigidity ensures that it won’t flop around, no matter how aggressively you play.
The microphone’s cardioid polar pattern isolates the instrument by reducing side and rear pickup, and the switchable 80 Hz high-pass filter on the in-line power module helps control undesired low-frequency noise. The system also includes an AT8468 violin mount with a hook-and-loop fastener and a protective carrying case.
Features
- Adjustable velcro mount allows for easy fitting to woodwind instruments
- Packaged with AT8490 Gooseneck
- Built to handle extremely powerful, dynamic sound sources
- Large selection of other mount options available separately
- Lifetime Warranty
Specs
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 40 – 20,000 Hz |
| Open Circuit Sensitivity | –49 dB (3.5 mV) re 1V at 1 Pa |
| Impedance | 200 ohms |
| Maximum Input Sound Level | 159 dB SPL, 1 kHz at 1% T.H.D. |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave |
| Switches | Flat, roll-off |
| Dynamic Range | 130 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 65 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11– 52V DC, 3.5 mA typical |
| Weight | Microphone: 14.5 g (0.5 oz)Power Module: 90 g (3.2 oz) |
| Dimensions | Microphone: 37.8 mm (1.49”) long, 12.2 mm (0.48”) maximum body diameterPower Module: 92 mm (3.62″) long, 18.9 mm (0.74″) diameter |
| Output Connector | Power Module: Integral 3-pin XLRM-type |

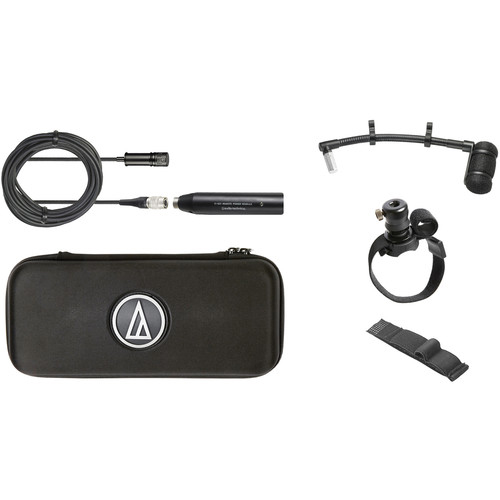

| Accessories Included | ATM350a cardioid condenser microphone; AT8543 power module; AT8491W UniMount® woodwind mount; AT8490 UniMount® 5″ gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case |
