An easy-to-use Portable Recorder with all new Mics and breakthrough Wi-Fi technology
The groundbreaking DR-22WL from TASCAM is the first portable recorder to include Wi-Fi for transport control, file transfer, and audio streaming to your smartphone or PC. Other innovations like the new Scene Dial make it easier than ever to capture great-sounding recordings and share them online. A set of stereo condenser microphones is arranged in true XY pattern for ideal stereo imaging. The eight-position Scene Dial selects recording settings for typical situations, or can be set to full manual for greater control.
Included in the DR-22WL is a Wi-Fi function for controlling its transport and transferring files to a smartphone or computer. A free app for iOS and Android controls the transport and transfers files for instant upload. For a recording beginner or experienced user looking for a great-sounding, portable recorder with Wi-Fi, the DR-22WL is the only choice.
Router mode has been added for Wi-Fi connection
Selecting the newly added “VIA ROUTER” enables the wireless remote control operation by connecting your smartphone or tablet device to a Wi-Fi router installed in a studio or at home. Remote control is operable with email, map, or other apps and online services at the same time.
Selecting “TO DEVICE”, on the other hand, allows direct, one-to-one connection with the DR-22WL/DR-44WL, and so the remote control function works in the outdoor environment where Wi-Fi router is not available. By letting the users choose the connection mode depending on their purpose and situation, this product supports a wide range of applications.
Sharing the Recorded Audio Files in other Apps and Cloud Services
The recorded audio files can be shared on email, memo, Dropbox, or other OS standard apps. This allows users to transfer the recorded audio files to other users, or upload them for data management.
* Apps for file sharing depend on the device OS or the type of installed apps.
* In Version2.00 or later, SoundCloud direct uploading function has lost. Because SoundCloud has removed the function. Please use a computer when you want to upload the file onto SoundCloud.
* Apps for file sharing depend on the device OS or the type of installed apps.
* In Version2.00 or later, SoundCloud direct uploading function has lost. Because SoundCloud has removed the function. Please use a computer when you want to upload the file onto SoundCloud.
Renaming or Deleting the Files
Files saved in the App or in the DR-22WL/DR-44WL can be renamed or deleted. Even if there are too many takes, file management is now made easier.
Renovated Graphic Design Allows Easy, Intuitive Operation
The recording level monitoring is always an important task during the recording; the latest update added colors to the level meters, improving the legibility. The windows for setting, input level adjustment, and browser have also been refreshed. It offers even easier-to-read design for more intuitive operation.
Firmware V1.20
High-Quality Condenser Microphones

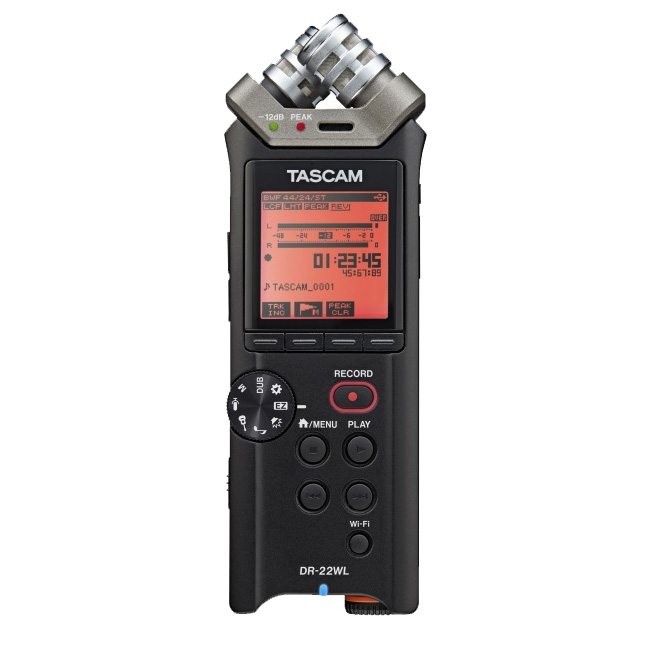

Innovative Scene Dial and Large LCD for Easy Operation
Remote Wi-Fi Control
Instantly Transfer Recordings to Your Smartphone or PC to Share Online
Automatic Features Streamline Recording Setup
Multitrack Mode For Serious Demo Production
Features at a glance
Recorder Section
- Supported WAV recording formats: 44.1k/48k/96kHz, 16/24bit, WAV/BWF
- Supported MP3 recording format: 44.1k/48kkHZ, 32k to 320kbps, MP3
- Recording media: microSD/SDHC/SDXC card (up to 128GB SDXC card)
Recording Hardware

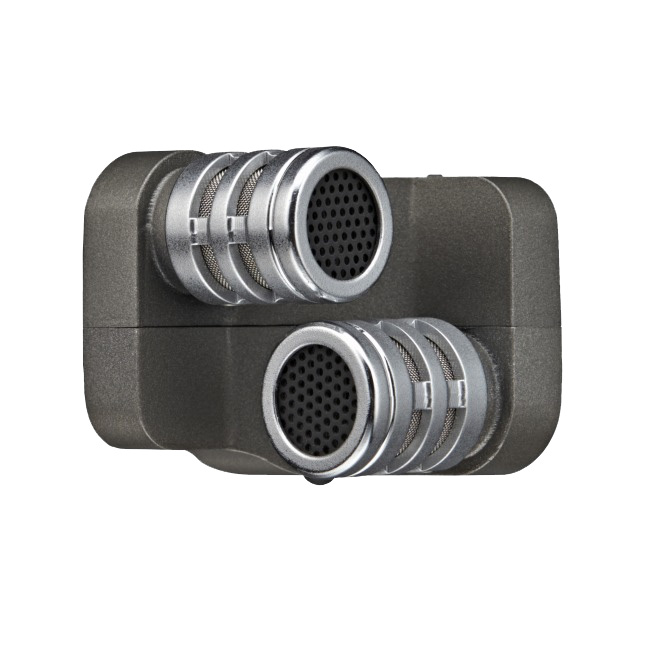

- Cardioid stereo condenser microphones fixed in X-Y position
- High sound pressure design captures levels up to 120dB SPL
- PGA (programmable gain amplifier) and Cirrus Logic CS42L52 audio codec for low-noise, high-performance audio recording
Key Features
- Scene Dial Presets for instant setup of common recording applications
- Remote control, file transfer and streaming playback using 2.4GHz Wi-Fi
- Wi-Fi connects directly to smartphone without a router
- Full remote control using the free TASCAM app for iOS and Android
- Recorded audio can be posted directly to SoundCloud using the TASCAM DR Control app.
Recording Function
- Dual format recording function allows simultaneous recording of both WAV and MP3 files
- Automatic level optimization functions (Peak Reduction & Limiter)
- Low-cut filter with four selectable frequencies (40/80/120/220Hz)
- Pre-recording buffer records up to 2 seconds prior to starting recording
- Automatic track increment function that can be set according to the application (level, elapsed time or manual)
- Auto recording function that can detect the sound input signal level and automatically start recording
- Automatic mark function that adds marks according to set conditions (peak detection or manual)
Playback Function
- Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
- A-B Loop playback function ideal for practicing music
Editing Function
- Automatic division function that divides files at marks (manual division also possible)
Other Function
- Reverb effect for vocal and instrument resonance
- Automatic power saving function that prevents unnecessary waste of battery power
- Resume function that retains the last stop position when power is turned back ON
- File name format can be set to use a user-defined word or the date
- Audio files created on computers can be played (Only in formats compatible with this product)
Other Hardware
- Built-in monaural speaker with an output of 0.3W
- 128×128 pixel oversized graphic LCD with backlight
- USB 2.0 High-speed file transfer to a computer
- Stereo mini headphone line output / Headphone output connector
- Powered by four AA batteries, USB bus power, or AC adapter
- Long-time operation of over ** hours is possible using just the internal batteries
- Strap -hole
- Tripod attachment screw-hole
- 4GB microSD card is included
- RoHS certified
Spec description
| DR-22WL | DR-44WL | |
| Recording media | microSD card (64MB to 2GB), microSDHC card (4GB to 32GB), microSDXC card (48GB to 128GB) |
SD card (64MB to 2GB), SDHC card (4GB to 32GB), SDXC card (48GB to 128GB) |
| Recording format | ||
| WAV, BWF | ||
| Sampling frequency | 44.1k/48k/96k Hz | |
| Quantization bit rate | 16/24-bit | |
| MP3 | ||
| Sampling frequency | 44.1k/48k Hz | |
| Recording bit rate | 32k/64k/96k/128k/192k/256k/320k bps | |
| Playback bit rate | 32k to 320k bps | |
| Number of channels | 2-channels (Stereo) | 4-channels |
| 4CH mode | – | Mono (Up to 4 files) Stereo (Up to 2 files) Stereo (1 file) Mono (Up to 2 files) |
| MTR mode | – | Mono (Up to 4 files) |
| Analog Inputs | ||
| EXT MIC/LINE IN | ||
| Connector | 1/8″ (3.5mm) stereo mini jack, Plug-in power Compatible |
XLR-3-31, 1/4″ (6.3mm) TRS standard jack, Phantom Power Compatible |
| Input Impendance | 10kΩ or more | 2.2kΩ or more |
| Nominal Input Level | –20dBV | – |
| Maximum Input Level | –4dBV | – |
| EXT IN [MIC] | ||
| Nominal Input Level | – | –17.3dBu ±2dB |
| Maximum Input Level | – | –1.3dBu ±2dB |
| EXT IN [LINE] | ||
| Nominal Input Level | – | 4dBu |
| Maximum Input Level | – | 20dBu |
| Analog Outputs | ||
| PHONES/LINE OUT | ||
| Connector | 1/8″ (3.5mm) stereo mini jack | |
| LINE OUT | ||
| Nominal Output Level | –14dBV(10kΩ load) | |
| Maximum Output Level | 2dBV(10kΩ load) | |
| PHONES | ||
| Maximum Output | 20mW 20mW (32Ω load) | |
| USB | ||
| Connector | Micro-B type 4pin | |
| Format | USB2.0 HIGH SPEED mass storage class | |
| Wi-Fi | ||
| Compliant | IEEE 802.11b/g/n (2.4GHz only)) | |
| Communication mode | Simple access point (Limited AP) | |
| Security | WPA2-PSK (WPS2.0-supported) | |
| Tripod attachment screw-hole | 1/4″ Tripod attachment screw-hole | |
| Power Supply | 2 AA batteries (alkaline or NiMH), USB bus power from a computer, AC adapter (TASCAM PS-P515U, sold separately) |
4 AA batteries (alkaline or NiMH), USB bus power from a computer, Dedicated AC adapter (GPE053B supplied with the unit) |
| Power consumption | 1.7W (maximum) | 2.5W (maximum) |
| Battery operation time | *All times are approximate. | |
| Format | WAV, 44.1kHz, 16-bit | |
| Alkaline batteries (EVOLTA) | ||
| Recording | 17.5 hours (with built-in mic) | 16 hours (when MIC input is selected, phantom is not used) |
| Playback | 19 hours (with built-in speaker) | – |
| Ni-MH batteries (eneloop) | ||
| Recording | 13.5 hours (with built-in mic) | 12 hours (when MIC input is selected, phantom is not used) |
| Playback | 14.5 hours (with built-in speaker) | – |
| Dimensions (W×H×D) | 2.1″ × 6.1″ × 1.4″ / 52.5 x 155 x 36.6 mm |
3.1″ × 6.3″ × 1.7″ / 79 x 162.2 x 42.5 mm |
| Weight | 6.0 oz. / 170 g (including batteries) 4.3 oz. / 123 g (excluding batteries) |
12.2 oz. / 346 g (including batteries) 8.8 oz. / 251 g (excluding batteries ) |
| Accessories | 4GB microSD card (in the unit), USB cable, 2 AA batteries for confirming operation, Owner’s Manual (including warranty) | AC adapter (GPE053B), 4GB microSD card with adapter (in the unit), USB cable (80 cm), 4 AA batteries for confirming operation, Fur windscreen, Mic stand adapter, Hot shoe adapter, Soft case, Owner’s Manual (including warranty) |
| Audio Performance | |
| Frequency response | 20Hz to 20kHz 1dB/–3dB (Fs 44.1kHz, EXT IN to LINE OUT, JEITA) 20Hz to 22kHz 1dB/–3dB (Fs 48kHz, EXT IN to LINE OUT, JEITA) 20Hz to 40kHz 1dB/–3dB (Fs 96kHz, EXT IN to LINE OUT, JEITA) |
| Distortion | 0.05% or less (Fs 44.1k/48k/96k Hz, EXT IN to LINE OUT, JEITA) |
| S/N ratio | 92dB or more (Fs 44.1k/48k/96k Hz, EXT IN to LINE OUT, JEITA) |
