Performs backup recording by simply mounting onto a wireless microphone system Wearable micro linear PCM audio recorder, recordable via a pin-on microphone

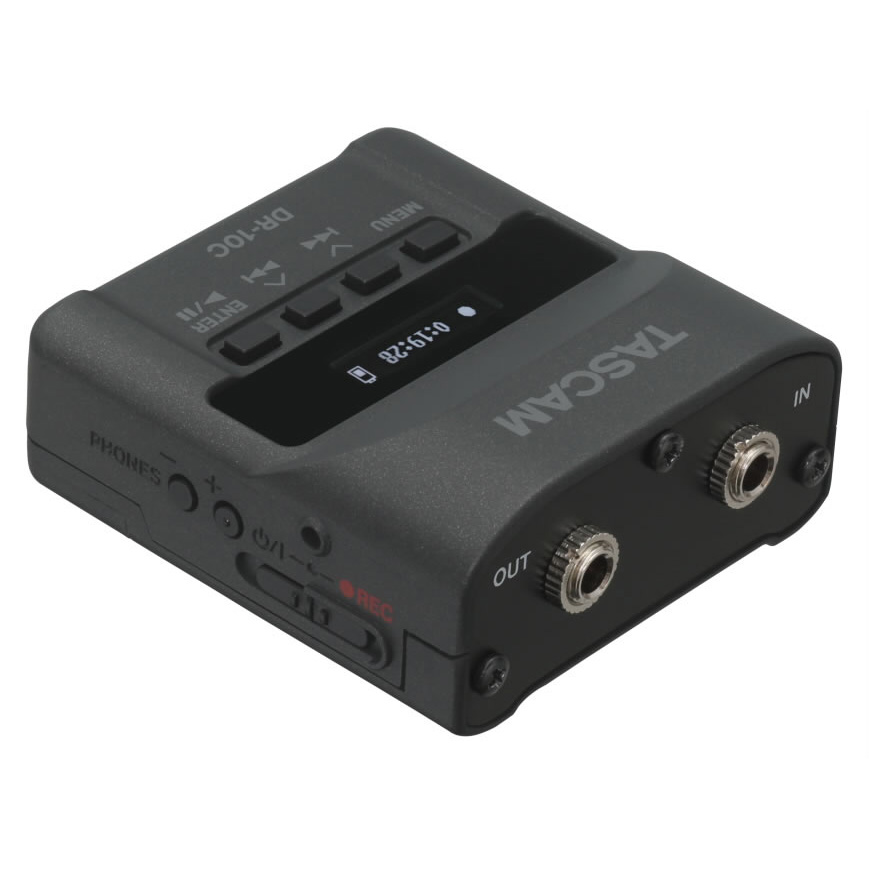

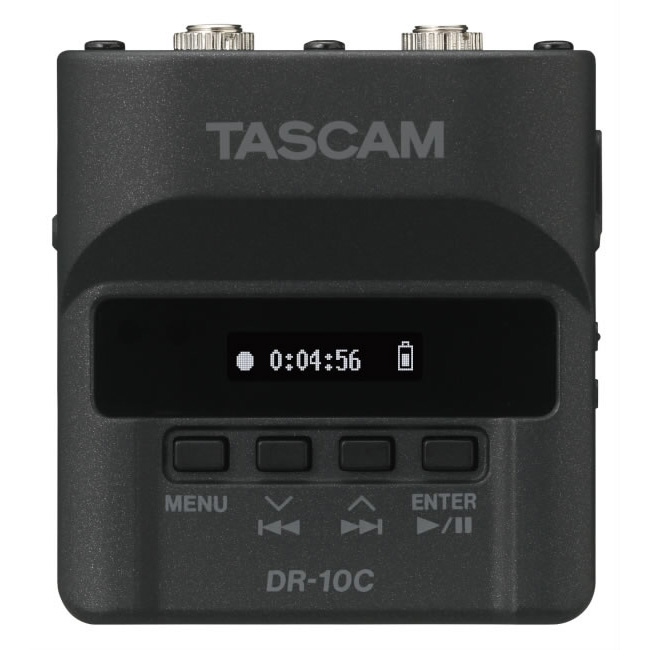

The DR-10C series is an audio recorder that can be set between a wireless microphone system’s microphone and the transmitter.
By simply connecting a microphone to a DR-10C series device, and then connecting to the transmitter using the included cable, audio can continue to be recorded even if the audio signal in the wireless system is interrupted.
Designs that support the wireless mic systems of different manufacturers
The design supports the wireless microphone systems of several different manufacturers, with the lineup supporting Sennheiser and Shure wireless systems. In addition, Sony/RAMSA wireless microphone systems can also be supported by installing an optional replacement.
A light, compact size, weighting 63g that fits inside of your hand
The device fits in the palm of your hand, with a lightweight design that makes it easily bundled with a transmitter. It is wearable on a belt alongside a transmitter, creating options to match your environment. Furthermore, the DR-10C series can be used as a small, wearable recorder by combining it with a pin-mic and the DR-10C series.
Supports BWF files that include timestamp information
The recording format is set as 24bit/48kHz mono WAV (BWF format), designed for monaural recording for professional applications, including recording TV programs and stages, as well as lectures and seminars. The built-in clock function is capable of adding timestamp information to the audio file, making file search and editing tasks easier.
Various functions to prevent complications in setting recording-levels, including a dual-recording function
In terms of functionality, a sliding recording switch was employed to prevent misoperation. There are additional functions to support reliable recording, including: a function for disabling all operations beside stop during recording, and a dual-recording function that enables the recording level to be set as high as possible while simultaneously recording a backup track at a lower level.
The DR-10C is a series of micro linear PCM recorders that can be used for the audio recording of a wireless mic stem, as well as a standalone wearable recorder.
Support for MP3 recording at both 128kbps and 192kbps
In addition to WAV (BWF) format files, recording and playback of MP3 files is now supported. This enables literally days of audio to be recorded on a single microSD card.
Level meters are now active during both recording and playback
Level meters were previously active only during input monitoring. With V2.00 they are live during recording and playback as well.
Level selection with dual recording function added
The dual recording function enables simultaneous creation of a backup “safety recording” at a lower level. Previously, this backup track was fixed at -6 dB lower than the main track. A new option of -12 dB now been added.
POLY file dual recording
POLY file mode can be used to record a mono sound source input as a stereo file. V2.00 also supports dual recording when in this mode.
Overall performance improvements
Overall performance has been enhanced, and microSD card writing/processing has been improved.
Use as a backup recorder connected between a wireless System mic and its transmitter
Linear PCM recorder with high-quality audio
Features at a glance
- Supports Sennheiser wireless system mics and transmitters (DR-10CS)
- Supports Shure wireless system mics and transmitters (DR-10CH, DR-10CS with optional AK-DR10CH panel)
- Supports Sony/RAMSA wireless system mics and transmitters (DR-10CS/DR-10CH with optional AK-DR10CR panel)
Note: The Sony/RAMSA panel has a sliding switch to allow proper wiring configuration - 48kHz/24-bit linear PCM mono recording
- WAV files (compatible with BWF format)
- Media: microSD/SDHC cards (supports 32GB capacities)
- Sliding record switch and hold function to prevent misoperation during recording
- Dual recording function
- automatic file closing function to prevent the loss of already recorded data
- High/Mid/Low recording level settings
- Low-cut filter
- Limiter
- Automatic level function
- With a built-in clock function, supports BWF files that can have time information added – convenient for editing and searching
- Time track incrementing function can create new files at regular intervals (about every 15 minutes) during recording
- Playback function allows recorded data to be checked immediately
- Headphone output
- Easy-to-read organic EL display
- micro USB B port enables easy data exchange with computers
- Records at least 10 hours on a single AAA battery * using alkaline batteries (EVOLTA)
- Unit settings can be created and transferred as a computer text file
- Settings can be transferred between DR-10C units using the infrared transmission function
- Firmware can be updated using a microSD card
- Belt clip included
- Silicon band that can be used to attach the unit to a transmitter included
- Custom case for storing the unit and accessories included
- RoHS-compliant product
Spec description
| Recording media | microSD card(64MB to 2GB), microSDHC card(4GB to 32GB) |
| Media discharging | Push-Push type (Guard cover mounted) |
| Recording format | |
| V1.00 | |
| WAV | 44.1k/48kHz, 16/24bit mono/poly WAV (BWF format) |
| V2.00 | |
| WAV | 44.1k/48k Hz, 16/24 bit mono/poly (BWF format) |
| MP3 | 44.1k/48kHz, 24bit mono/poly |
| Recording | 128k/192k bps |
| Playback | 32k to 320k bps |
| Analog audio Inputs | |
| Connector | More info for Pin Assign, please click here |
| DR-10CS | Compatible with SENNHEISER 3.5mm(1/8″) TRS jack with screw lock |
| DR-10CH AK-DR10CH |
Compatible with SHURE Mini XLR 4pin, Male (TA4M adapter) |
| AK-DR10CR | Compatible with SONY Hirose 4pin Female KMC-9BPD-4S (SMC9-4S adapter) Compatible with RAMSA Hirose 4pin Female KMC-9BPD-4S (KMC-9BRF-4S adapter) * Please utilize the slide switch for SONY / RAMSA selection. |
| MIC input gain | LOW / MID / HIGH |
| Input impedance | 32kohm or more |
| PHONES | |
| Connector | 3.5mm(1/8″) stereo mini jack (DUAL MONO) |
| USB | |
| Connector | Micro-B type 4pin |
| Protocol | USB2.0 HIGH SPEED mass storage class |
| Power | 1 AAA battery (Alkaline battery/ Ni-MH battery / Lithium battery), USB bus power |
| Power consumption | 0.45W |
| Battery operation time | WAV,24 bit / 48kHz Rec, without headphones, limiter : OFF , Dual Rec : OFF , JEITA Rec |
| Alkaline battery (EVOLTA) | Approx 10 hours |
| Ni-MH battery (eneloop) | Approx 8 hours |
| lithium battery (Energizer ULTIMATE LITHIUM) | Approx 15.5 hours |
| Battery (RTC) | Lithium × 1(built in with soldering) |
| Dimensions | |
| DR-10CS / DR-10CH | 52(W) × 55.6(H) × 24.4(D) mm 2.0(W) × 2.2(H) × 1.0(D) inch |
| AK-DR10CH | 49.2(W) × 20.9(H) × 19.2(D) mm 1.9(W) × 0.8(H) × 0.8(D) inch |
| AK-DR10CR | 49.2(W) × 20.9(H) × 21.5(D) mm 1.9(W) × 0.8(H) × 0.8(D) inch |
| Weight | |
| DR-10CS / DR-10CH | 63g (including battery) / 51g (without battery) |
| AK-DR10CH | 16.3g |
| AK-DR10CR | 16g |
| Operating temperature | 0?C to 40?C |
| Accessories | |
| DR-10CS / DR-10CH | USB cable,Connection cable, Carrying case, Clip, Belt, Owner’s Manual (including warranty) |
| AK-DR10CH / AK-DR10CR | Connection cable, Spare screws × 3 |
Audio performance
| Frequency response | 20Hz to 22kHz 1/-2dB (IN to PHONES) |
