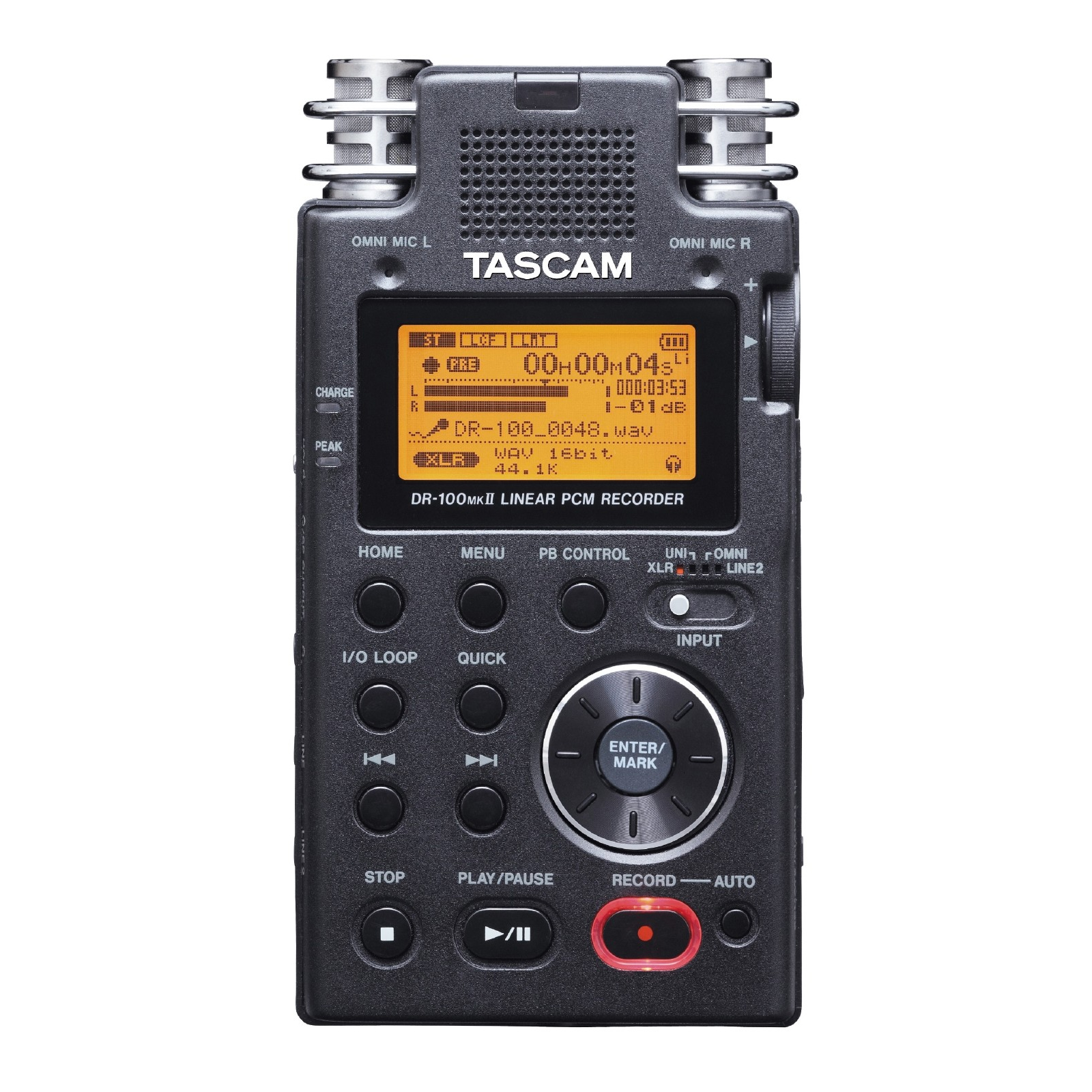

24bit/96kHz Linear PCM Recorder
DR-100MKII
Enhanced hardware and audio quality worthy of being called a “high-end model”
Professional linear PCM recorder supporting 24bit/96kHz
The DR-100MKII is a high-end linear PCM recorder within TASCAM’s handy recorder lineup that supports the 24bit/96kHz format.
By leveraging TASCAM’s long-career as a professional recording device brand, and incorporating on-site feedback, a refined recorder worthy of being called a "œhandy high-end recorder" was born.
This model has been discontinued in North, Central and South America.
Please check the availability with your local distributors in other areas.
Improved quality while maintaining the usability of the DR-100
The enhanced hardware composition built on a conventional model, the DR-100, is the biggest feature of the DR-100MKII.

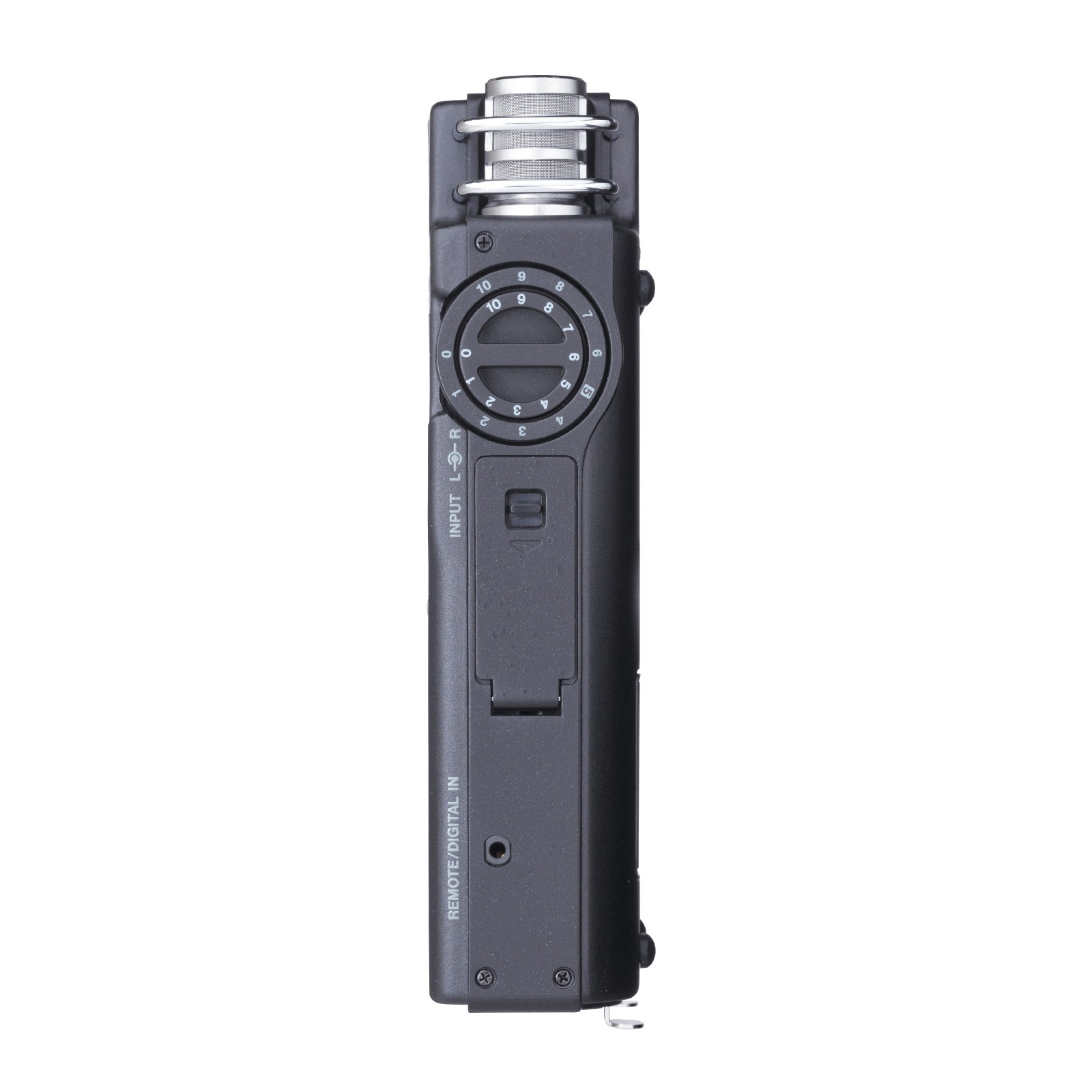

The solid body and equally large independent left/right adjustable rotary input volume knob allows for precise adjustment due to its larger size.
Needless to say, it is also capable of adjusting level differences between left and the right.

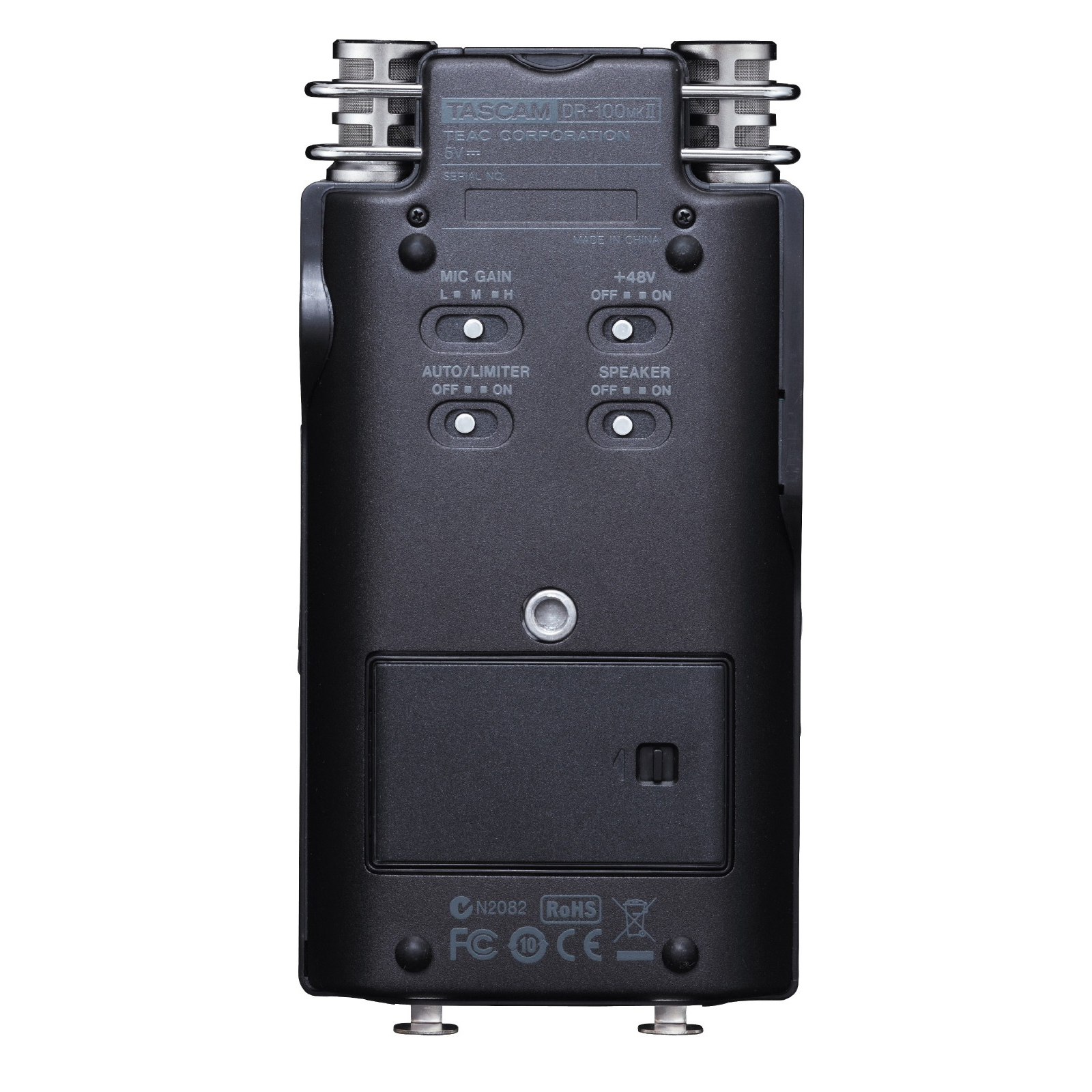

Mechanical switches used for secure operation and speedy setups have been distributed across six functions.

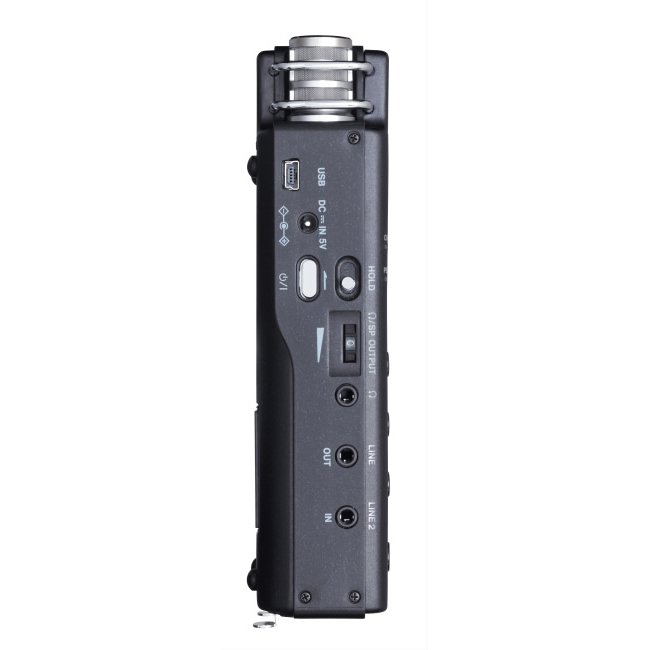

A digital input jack is located on the side, with its line output independent from the headphones, allowing for a high level of sound quality line output that would be impossible with shared connectors.

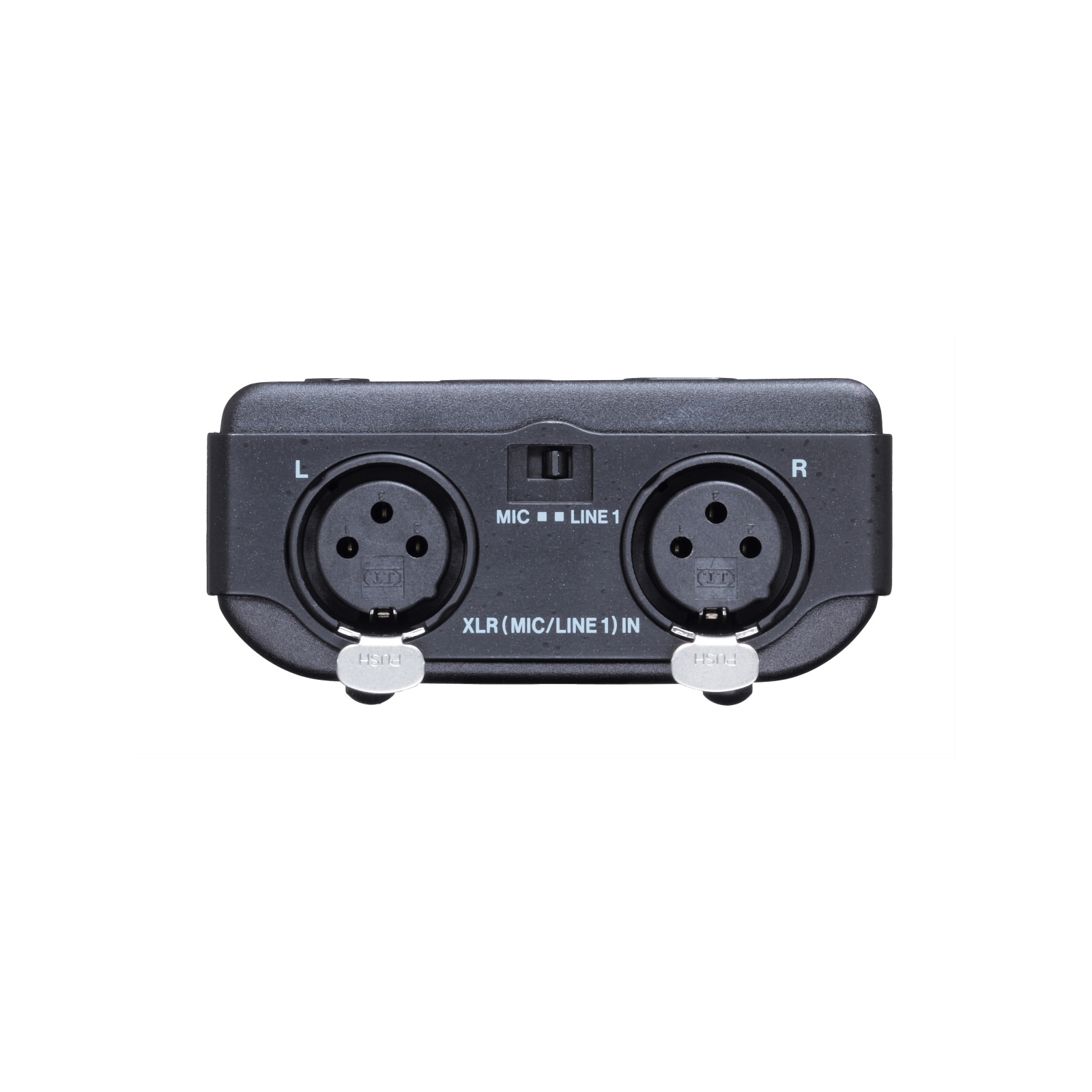

The external inputs include unbalanced line input in addition to a locking XLR input connector, compatible with a 4dBu line level input. Headroom of 20dB has been secured, supporting audio output of images for broadcasting and acoustic equipment.
Higher sound quality attained by implementing a microphone amplifier that adopts high sound quality analog circuits and discrete parts
The DR-100MKII achieves detailed sounds through its meticulously designed high sound quality analog circuit.
By equipping a microphone amplifier with discrete parts has further improved on the S/N ratio.
As a whole, an S/N ratio of 92dB and a HD N of 0.01% (max) was achieved.
In addition to the unidirectional high sound quality stereo condenser microphone, the omnidirectional stereo microphone useful for such purposes as recording meetings has improved sound qualities compared with conventional models.
Factory-installed remote controller that eliminates touch noise
Furthermore, a remote controller that eliminates noise from touching the unit has been factory-installed.
In addition to enabling operations via wireless infrared, a 2WAY remote control has been included that allows for wired operation in case users wish for secure, reliable operation.
Other accessories that are included are a soft case useful for carrying the device around, Li-ion batteries, and a fur windscreen.
When the DR-100MKII needs to be run for a long period of time, users can connect the device to the optional PS-P520 AC adapter and the BP-6AA external battery pack.
The DR-100MKII delivers high sound quality recording, a sense of security when working on-site, and high level of versatility that provides a reliable, high sound quality recording environment even in the most demanding sites.
Features at a glance
- Total of 4 microphones including 2 unidirectional condenser microphones and 2 omnidirectional microphones
- Locking XLR/TRS inputs compatible with 4dBu line level / 48V phantom power with 20dB of head room
- Dual battery system that can use two different types of batteries; the exclusive Li-ion battery and standard AA batteries
- Independent left/right adjustable large rotary input volume knob
- Rugged aluminum body for use in extreme conditions
- Digital input connector for lossless connection from playback devices
- Mechanical switches allowing for simple and sure operation
- High-quality output via the line level output connector, which is independent from the headphones connector
- High-quality sound from discrete parts
- AD/DA Audio4pro for professional audio
- Built-in 0.4W monaural speaker for sound source confirmation
- 128×64 pixel backlight LCD
- SD/SDHC cards, which have broad versatility and are easy to use, can be used for recording media
- 24bit/96kHz high sound quality linear PCM (WAV) recordings and long recordings as MP3 files are possible (96kHz is only possible in HS Mode)
- Overdubbing function allows for new recordings to be overlapped onto recorded files *Overdub recording cannot be selected when prerecording is used
- Level control function for adjusting the auto gain control and limiter
- Three low cut filter levels that cut unnecessary low frequency noise such as from air conditioning equipment (40/80/120Hz)
- Auto recording function that can detect the sound input signal level and automatically start recording
- Prerecording function that can record up to 2 seconds prior to starting recording
- REC DELAY function for delaying the start of a recording to avoid recording the sound of pressing the RECORD button
- Mark function that can set up to 99 points for a single track
- QUICK TAG function for quickly identifying files
- File name format can be set to use a user-defined word or the date
- Auto track incrementing function that automatically updates files while continuing to record (Detection source: Level, size)
- Track incrementing function that creates new files at arbitrary locations during recording
- Playlist function that registers files you want to play back
- Repeat playback function (All/Single/A-B)
- Tempo change (VSA) function for adjusting the speed from 50% to 116%, which is great for practicing music and studying languages (This function is not available in HS Mode)
- Divide function for dividing files at specified locations (WAV files only)
- Japanese language display for MP3 ID3 tag (Ver. 2.4) is possible
- Audio file information such as the recording date/time and size can be confirmed
- High-speed file transfer to a computer via USB 2.0
- 2GB SD card is included
- Strong metal tripod attachment screw-hole at the bottom on the unit
- Includes the RC-10 wireless/wired remote control
- Includes a soft case and windsock
- Longer operation is possible by using the optional BP-6AA external battery pack
- Operation is possible by AC power using the optional PS-P520 AC adapter
- Mini USB cable included
Spec description
| Recording Media | SD card(64MB to 2GB), SDHC card(4GB to 32GB) |
| File System | FAT16/32 |
| File Format | WAV, MP3 |
| Recording/Playback Format | |
| WAV | 44.1/48/96 (HS mode) kHz, 16/24-bit |
| Sampling frequency | |
| STD mode | 44.1k / 48k Hz |
| HS node | 44.1k / 48k / 96k Hz |
| Quantization bit rate | 16bit / 24bit |
| MP3 | |
| Sampling frequency | 44.1k / 48k Hz |
| Recording bit rate | 32k / 64k / 96k / 128k / 192k / 256k / 320k bps |
| Playback bit rate | 32kbps to 320kbps |
| Number of Channels | 2 channels(stereo) |
| Playback Speed Control (VSA) | -50% to 16%(1% step) |
| Analog Inputs | |
| MIC/LINE 1 IN | Phantom Power Compatible |
| Connecter | XLR-3-31 (1 : GND, 2 : HOT, 3 : COLD |
| MIC | Switch is set to MIC |
| Input Impendance | 2.1k ohms |
| Nominal Input Level | -14dBu |
| Maximum Input Level | 2dBu |
| LINE 1 | Switch is set to LINE |
| Input Impendance | 2.5k ohms |
| Nominal Input Level | 4dBu |
| Maximum Input Level | 24dBu |
| LINE 2 IN | |
| Connetor | 3.5mm(1/8″) Stereo mini jack |
| Input Impedance | 22 k ohms or more |
| Nominal Input Level | -10dBV |
| Maximum Input Level | 6dBV |
| Analog Output | |
| LINE OUT (XLR LINE IN) | |
| Connector | 3.5mm(1/8″) Stereo mini jack |
| Output Impendance | 200 ohms |
| Nominal Output Level | -14dBV |
| Maximum Output Level | 6dBV |
| Digital Input | |
| Connector | 2.5mm(3/32″) TRS jack |
| Format | IEC60958-3(S/PDIF) |
| PHONES | |
| Connector | 3.5mm(1/8″) Stereo mini jack |
| Maximum Output | 25mW 25mW(32ohms loaded) |
| USB | |
| Connector | Mini-B type |
| Format | USB2.0 HIGH SPEED mass storage class |
| REMOTE | |
| Connector | 2.5mm(3/32″) TRS jack |
| Format | Exclusive TASCAM RC-10/RC-3F |
| Built-in Speaker | 0.4W (mono) |
| Power Supply | Exclusive Li-ion battery (BP-L2), 2 AA batteries, Exclusive AC adapter (PS-P520), Exclusive external battery pack (BP-6AA) |
| Power Consumption | 4W(MAX) |
| Battery operation time (Recording) |
|
| Li-ion battery (BP-L2) |
|
| Alkaline batteries (EVOLTA) |
|
| Ni-MH batteries (eneloop) |
|
| Dimensions | 3.15(W)×6.024(H)×1.378(D) inch 80(W)×153(H)×35(D) mm |
| Weight (without batteries) |
0.64lb 290g |
| Operating Temerature | 0ËšC to 4ËšC |
| Included Accessories | 2GB SD card, Exclusive Li-ion battery (BP-L2), USB connection cable, Exclusive soft case, Exclusive windsock, Wireless remote control (RC-10), Coin cell battery for confirming remote control operation, Wired remote control adapter, Wired remote control cable, Digital input conversion cable, Owner’s Manual, Warranty card |
| Audio Performance | |
| Frequency response | 20 to 20kHz 1/-3dB(EXT IN to LINE OUT, Fs44.1kHz, JEITA) 20 to 22kHz 1/-3dB (EXT IN to LINE OUT, Fs48kHz, JEITA) 20 to 40kHz 1/-3dB EXT IN to LINE OUT, Fs96kHz, JEITA) |
| Distortion | 0.01% or less(XLR LINE 1 IN to LINE OUT, Fs44.1kHz, 24dBu input, JEITA) |
| S/N Ratio | 92dB or more(XLR LINE 1 IN to LINE OUT, Fs44.1kHz, 24dBu input, JEITA) |
| Computer Requirements | |
| Windows | |
| OS | Windows XP, Windows Vista, Windows 7, Windows 8 |
| CPU type/speed | Pentium 300MHz or faster |
| Memory | 128MB or more |
| USB | USB2.0 |
| Macintosh | |
| OS | Mac OS X Jaguar(10.2), Mac OS X Panther(10.3), Mac OS X Tiger(10.4), Mac OS X Leopard(10.5), Mac OS X Snow Leopard(10.6), OS X Lion(10.7), OS X Mountain Lion(10.8) |
| CPU/Clock | Power PC, iMac, G3, G4, G5 266MHz or faster |
| memory | 64MB or more |
| USB | USB2.0 |
