Description

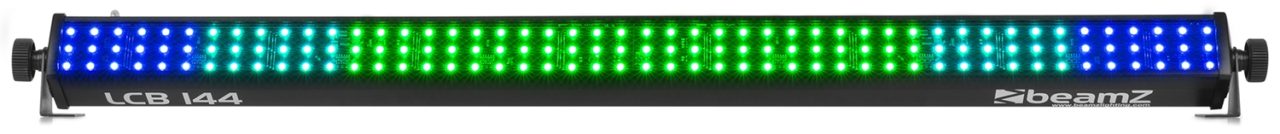

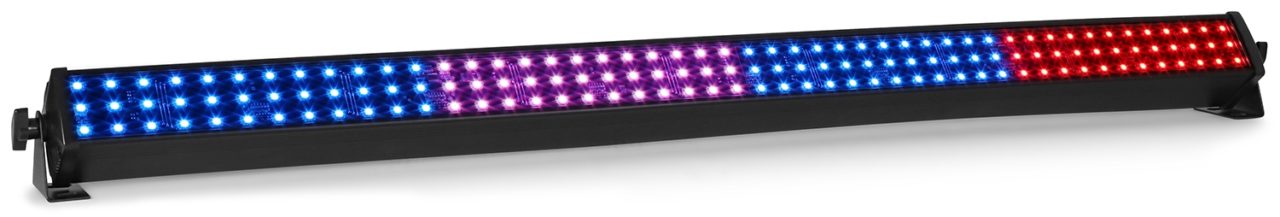

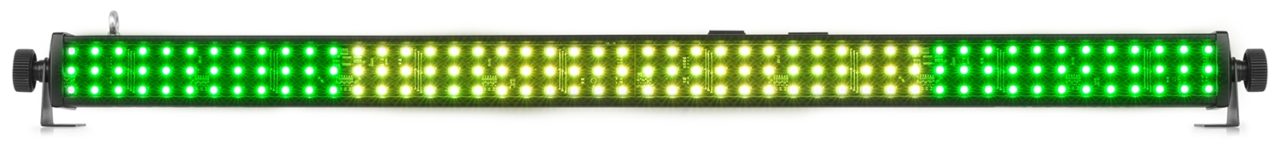

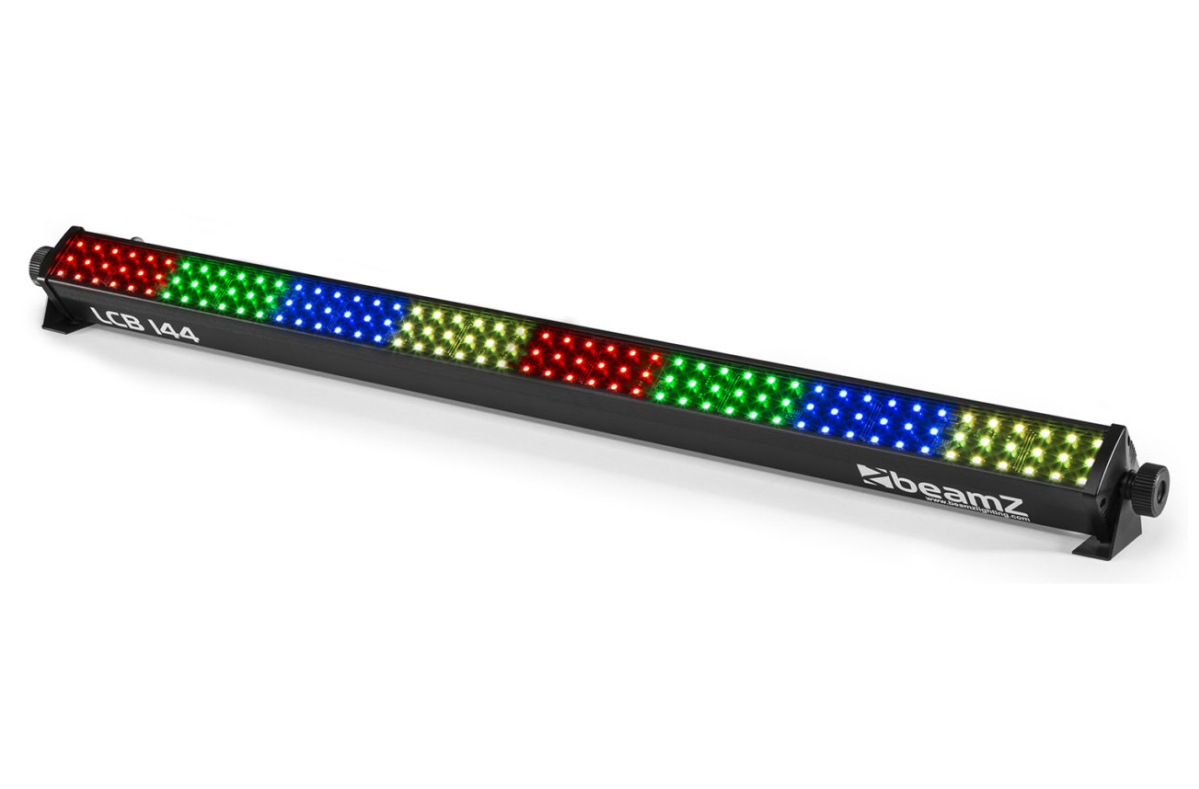

The LCB144 is a LED bar with 144 pieces SMD RGB LEDs. The LEDs are divided in 8 separately controllable sections. With each section having its own RGB colour setting in DMX mode. While using the fixture in stand-alone mode there are 3 pre-programmed shows that you can run automatically or sound activated, pick from the 16 pre-programmed automatic programs or create your own mixture of colours in RGB mode. The extra IEC output enables you to simply link the power of multiple units together into a single socket.
Features
- 144x SMD RGB LEDs
- 3, 5, 6, 12, 24 or 48 DMX channels
- 8 Sections controllable
- DMX and Stand-alone mode
- Master/slave function
- Sound activated with adjustable sensitivity
- Auto mode with adjustable speed

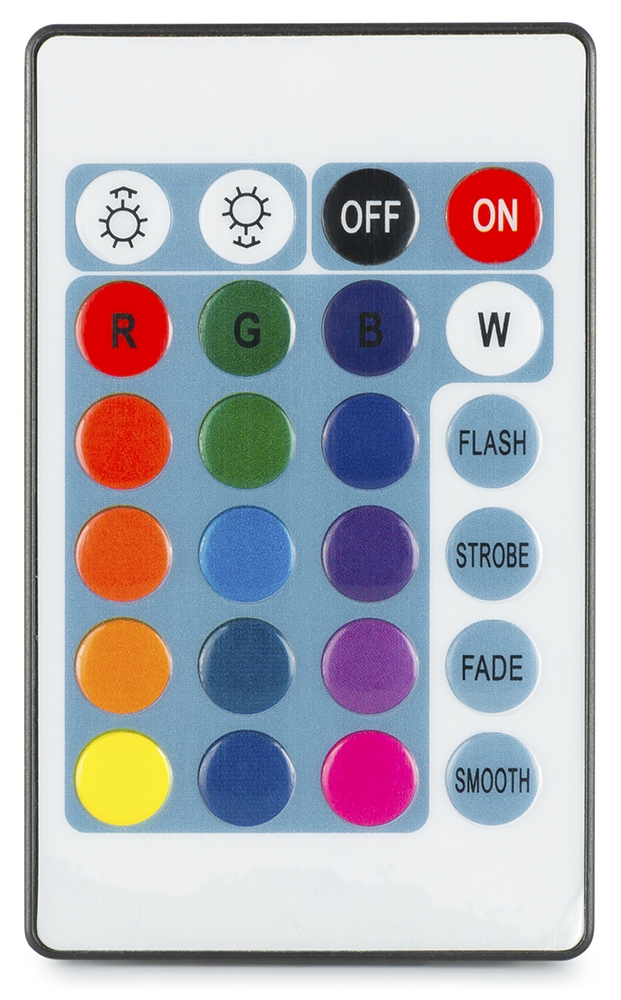

- IR remote control

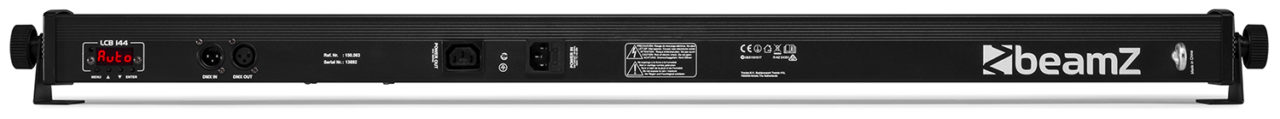

- DMX in/output via 3-pin XLR
- IEC-connector input/output
- Control panel with LED display
Specs
Supplied features | Master/Slave mode |
Light source | 3-in-1 LED |
LED colours | Red, Green, Blue |
Quantity of LEDs | 144 |
Flash rate per second | 0 – 20Hz |
DMX channels | 3, 5, 6, 12, 24, 48 |
DMX connector | 3-pin XLR |
Modes | Automatic programs, DMX |
Daisy chain | Yes (max. 6 bars) |
Power plug | IEC |
Power consumption | 25W |
Power supply | 100-240VAC 50/60Hz |
Dimensions (L x W x H) | 102 x 70 x 65mm |
Weight | 1.8500 |
