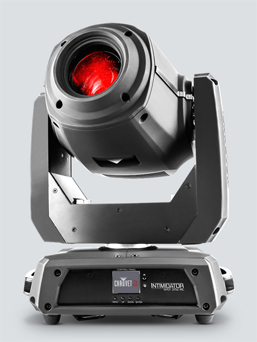

Intimidator Spot 375Z IRC is an exceptionally bright, 150 W LED moving head spot designed for large events. It features motorized zoom for short-throw or long-throw applications and dual rotating prisms split the beam for great effects and to cover a larger area. The motorized focus ensures crisp projections at almost any distance and the built-in Totem mode keeps the beams exactly where you want them. Intimidator Spot 375Z IRC includes built-in, automated and sound-activated programs or it can be controlled in DMX or Master/Slave mode. The powerCON ®-compatible power input/output connections for power linking are also onboard.
Highlights
- Exceptionally bright, 150 W LED moving head spot designed for large events
- Motorized zoom for short-throw or long-throw applications
- Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
- Dual rotating prisms splits the beam for great effects and to cover a larger area
- Beams always remain on the dance floor using the built-in, innovative Totem mode
- Emit crisp projections at almost any distance using the motorized focus
- Works with the IRC-6 for wireless control and triggering
- Activate built-in, automated and sound-activated programs, or control in DMX or Master/Slave mode

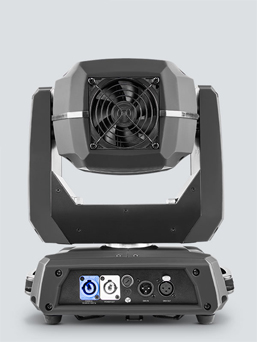

- powerCON ®-compatible power input/output connections for power linking
- Fits best in the INTIMROADCASES35X flight case
Specifications
- DMX Channels: 9 or 15
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 540 °/270 °
- Pan and Tilt Ranges: 540 °, 360 °, 180 ° pan/270 °, 180 °, 90 ° tilt
- Colors: 7 white, split colors, continuous scroll at variable speeds
- Gobos: 7 open (6 aluminum 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Light Source: 1 LED (white) 150 W, (12.3 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- PWM Frequency: 1.8 kHz
- Illuminance: (10 °): 38,000 lux @ 2 m
(23 °): 19,850 lux @ 2 m - Power Linking: 3 units @ 120 V; 5 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 277 W, 2.5 A @ 120 V, 60 Hz
268 W, 1.3 A @ 230 V, 50 Hz
(10 °) 4,180 lux @ 8 m (23 °) 2,523 lux @ 5 m - Gobo Size: 24 mm outside, 20 mm image, 1 mm max thickness
- Zoom Angle: (motorized): 10 ° to 23 °
- Weight: 27.2 lb (12.4 kg)
- Size: 8.6 x 12.7 x 18.3 in (220 x 322 x 466 mm)
- Approvals: CE, MET
- Optional Controllers: IRC – 6
- Prism: (1): 6-facet round, bidirectional rotation at variable speeds
- Prism: (2): 5-facet linear, bidirectional rotation at variable speeds
WHAT’S INCLUDED
- Intimidator Spot 375Z IRC
- Power cord
- Hanging bracket with mounting hardware
- Warranty card
- Quick Reference Guide
