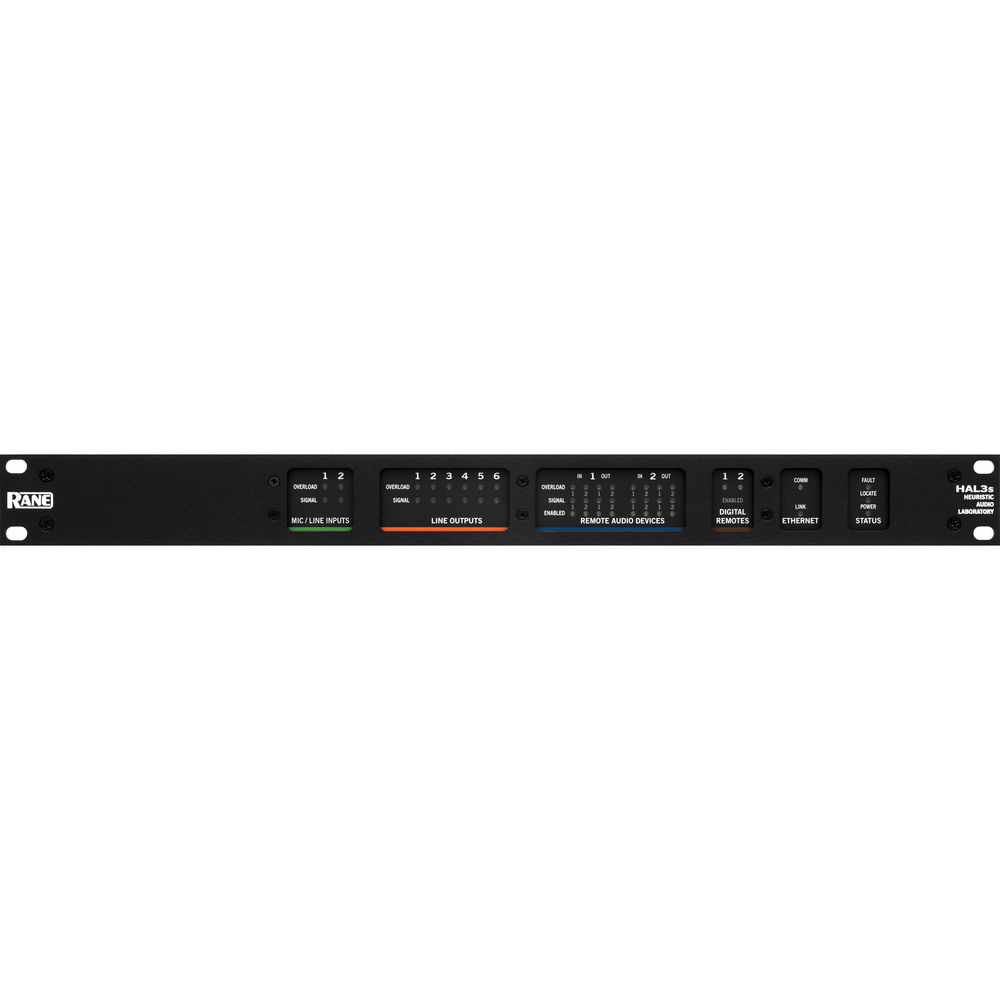

Rane Commercial HAL3s Audio Digital Multiprocessor

Features

Package Contents

Technical Specifications

Parameter	Specification	Limit	Conditions/Comments
Analog I/O	2 x 6		2 Mic/Line/Line-plus Inputs, 6 Line Outputs
Connectors	Euroblock		4 x 6-pin, 5mm pitch, Green = Inputs, Orange = Outputs
CODEC	24-bit, 48kHz
All Inputs			Common specifications
Input Impedance	2.9kΩ	1%	Each leg to ground
Inter-channel isolation	>100dB	typ	20Hz–20kHz, unity gain, channel-to-channel
CMRR	55dB	min	1kHz
Inputs: Dynamic Mic Mode	Active Balanced		Microphone input mode without phantom power
Gain	30dB to 50dB	typ	30db (analog gain), 1dB steps to 50dB (digital gain)
THD N	< 0.005%	typ	20Hz–20kHz, 4dBu out, 0dB digital gain
Equivalent Input Noise	-120dBu	typ	20Hz–20kHz, 150Ω source, 30dB gain
Maximum Input	-18dBV (125mVrms)	typ	1kHz, < 0.01% THD N
Frequency Response	20Hz–20kHz, 0.0/-0.3dB		4dBu out, 100kΩ load, Mic Input to Output
Inputs: Condenser Mic Mode	Active Balanced		Microphone input mode with 48V phantom power
Gain	18dB to 38dB	typ	18dB (analog gain), 1dB steps to 38dB (digital gain)
Phantom Power	48VDC		10mA max per input
THD N	< 0.005%	typ	20Hz–20kHz, 4dBu out, 0dB digital gain
Equivalent Input Noise	-110dBu	typ	20Hz–20kHz, 150Ω source, 18dB gain
Maximum Input	-6dBV (500mVrms)	typ	1kHz, < 0.01% THD N
Frequency Response	20Hz–20kHz, 0.0/-0.3dB		4dBu out, 100kΩ load, Mic Input to Output
Inputs: Line Mode	Active Summer		Left (” “) and Right (“-“) signals summed to mono
Gain	0dB to 20dB	typ	0dB (analog gain), 1dB steps to 20dB (digital gain)
THD N	< 0.007 %	typ	20Hz–20kHz, 4dBu out, 0dB digital gain
Maximum Input	14dBu	typ	1kHz, < 0.01% THD N, each leg
Frequency Response	20Hz–20kHz, 0.0/-0.3dB		4dBu out, 100kΩ load, Line-plus Input to Output
Dynamic Range (in to out)	108dB	max	re 20dBu, 20kHz BW, A weighted, Rs = 50Ω
Inputs: Line Mode	Active Balanced		Balanced line level input
Gain	0dB	typ	0dB (analog gain), 1dB steps to 20dB (digital gain)
THD N	< 0.005%	typ	20Hz–20kHz, 4dBu out, 0dB digital gain
Maximum Input	14dBu	typ	1kHz, < 0.01% THD N
Frequency Response	20Hz–20kHz, 0.0/-0.3dB		4dBu out, 100kΩ load, Line Input to Output
Dynamic Range (in to out)	108dB	max	re 20dBu, 20kHz BW, A weighted, Rs = 50Ω
Outputs	Active Balanced
Impedance	200Ω	1%	Each leg
Maximum Output	20.0/ 15.5dBu	typ	1kHz, 100kΩ/600Ω load
Indicators
Signal	-50dBFS	typ	Green LED, peak-reading
Overload	-0.5dBFS	typ	Red LED, peak-reading
Propagation Delays
RAD In to RAD Out	1.71ms	typ	Tested with RAD23
RAD In to Analog Out	1.85ms	typ
Analog In to RAD Out	2.25ms	typ
Analog In to Analog Out	2.39ms	typ
DSP
Processing Power	2400MIPS	max	1DSP @ 300MHz with up to 8 instructions/cycle
Word Length	32/64-bit Floating Point
Delay Memory	20 seconds	max
Computer Interface
Type	Ethernet 1000 Base-T		Zeroconf service discovery protocol for easy set up
Cable	Shielded CAT 5e or better		RJ-45 connector
Length	100 meters/300 feet	max	Standard Ethernet cable length limit
RAD Port	2		RJ-45 connectors
Audio Channels	2 in x 2 out		Each port 2 in x 2 out, control channel, 24-bit, 48kHz
Power	24VDC @ 100mA	max	Each port
Length	152 meters / 500 feet	max	Shielded CAT 5e cable or better
DR Ports	4		RJ-45 connectors
Power	24VDC @ 50mA	max	Each port
Length	300 meters / 1000 feet	max	Shielded CAT 5e cable or better
Logic Inputs	4
Connector	Mini Euroblock		6-pin, 3.81mm pitch, Black
Internal Pull-up	51.1kΩ, 5.0V		Protected to 24V, reverse polarity protected
Vin High	> 2.2V	min	Normal state
Vin Low	< 0.7V	max	External circuit sinks > 22µA to assert
Wiring	Class 2		All rear panel terminals
Power Requirement	100 to 240VAC		50/60Hz, 20W max
Ambient Room Temp.	40°C	max	Maximum external loading
Unit: Conformity	CE, FCC, cCSAus
Unit: Size	1.73″H x 19″W x 8.25″D		(4.4cm x 48.3cm x 20.9cm)
Weight	4.75 lb.		(2.2 kg)
Shipping: Size	4.25″ x 20.3″ x 13.75″		(11cm x 52cm x 35cm)
Weight	9 lb.		(3.8 kg)

Compatible Products

DRZH Remote Level Control with Source Selector

The DRZH is a wall-mounted digital remote (DR) for use with all Rane multiprocessors, including the new Zonetech audio processor. The DRZH features source selection and level control through the use of a single knob. It has a sleek black glass design, and the OLED display is easy to read in any environment. Connect the DRZH to RANE DSP with a Cat5e (or better) cable for a local run up to 1000 ft (300m) away from the equipment rack.

Each DRZH may be installed onto a standard U.S. 1-gang electrical box.

Zone Pager Tabletop Paging Station

The RANE Zone Pager is a paging station that allows users to page up to (6) zones separately, to (2) groups of zones, and to all zones at the same time. Lights will indicate if the zone is READY or BUSY (already being paged by a higher-priority paging station) and when the chime has completed (if enabled).

Zone Pager is perfect for use in bar/lounge restaurants, meeting rooms, schools, house of worship, and smaller venues where multiple paging zones are needed.

RAD22 Universal Wall RAD

The RAD22 adds flexible I/O capability to RANE DSP systems. It provides two mic and two line inputs via XLR/TRS combination jacks and an 1/8” (3.5mm) stereo line output for monitoring, recording or amplification. Smart muting allows for the disconnecting of XLR and 1/4” cables to prevent disruption to sound systems for hot-swapping of microphones – even with 24V phantom power applied. Connect the RAD22 to RANE DSP with a Cat5e (or better) cable for a local run up to 500 feet (150m) away from the equipment rack.

Each RAD22 may be installed onto a standard U.S. two-gang electrical box, or flush-mounted to a wall surface.

RAD26 One-Room RAD Remote

The RAD26 provides any room with end user control via the color LCD display and rotary encoders. It also features a dual universal audio I/O interface, line-level input jacks for local needs, a headphone output, and a dual 4-watt amp all using using one shielded cat5e (or better) cable drop. Three logic closure inputs and three active-low outputs add to the control capabilities. The built-in amplifier powers a small stereo pair of room speakers, or it can be switched in software to power a single 8-watt speaker. The RAD26 provides enough I/O and control to support one room in a HAL audio system which may require…

*RPI required for compatibility with the HAL3s

DR6 Digital Touchscreen Remote

The DR6 is a fully customizable touchscreen remote for the HAL family. It supports multiple pages or tabs, and any set of levels, toggles, selectors and/or commands. Drag, drop, and resize controls as desired. Ability to use custom background images and logos in full-color on the 7-inch LCD display.

*RPI required for compatibility with the HAL3s

RAD16z Halogen Interface with Dual Inputs / Dual Outputs / Dual Logic I/O

The RAD16z is an alternative to standard switch boxes for impractical areas such as in stage floor pockets or above ceilings. Its form factor is a rugged metal box with flexible surface mounting options. The RAD16z is plenum-rated UL 2043. It contains two balanced Mic / Line / Line-Plus inputs and two balanced line outputs on Euroblock connectors.

RPI Remote Power Injector for DR6 and RAD26

The RPI is a remote powering device for the DR6 Touchscreen Digital Remote and the RAD26 One-Room Remote Audio Device. This power supply is needed when using the DR6 or RAD26 with rackmount HAL units (HAL3s and legacy units). The RPI is connected between the HAL and the peripheral controller using shielded Cat 5e cable (or better), and can be located at any point between the HAL units and the peripherals within a 325ft (100m) maximum distance. It requires 100-240 VAC and utilizes an included standard IEC cable. Its form factor is a rugged metal box, and can be mounted to any flat surface.

AM2 Automixer

The Rane AM2 is both an 8 channel, gain-sharing automatic mic mixer and simultaneously a Rane RAD. Use it as a standalone mic-only mixer, add more gain-shared mics using up to seven additional AM2 Automixers, and/or use the RAD Port to transport the mic mix to Rane’s HAL system.

Each of the eight XLR Mic Inputs offers front panel input Level controls feeding a gain-sharing automatic mixer. Rear panel, 3-position selectors support dynamic mics (no phantom power), condenser mics (48 V), or line input optimized for wireless receiver outputs ( 10 dBu max). All Level controls come with front panel signal and overload indicators.
