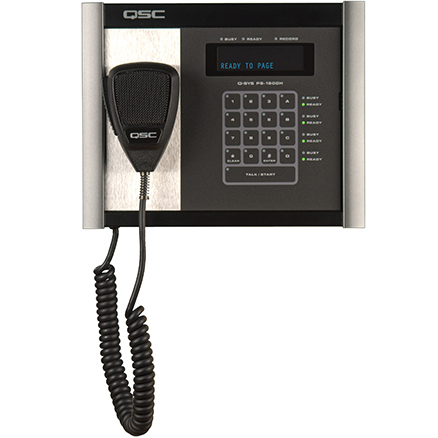

QSC PS-1600H Page Station

QSC PS-1600H Page Station

Call For Price

Found this product at a lower price?
  Check Stock & Price

Rugged, handheld PTT (Push To Talk) microphone with convenient magnetic mount included

SKU: PS1600-H Categories: ,
Description

Features

  • Capacitive touch, programmable keypad and 240 x 64 graphics LCD for flexible customization
  • Fully compatible with all Q-SYS systems. Simply connect to a Q-SYS system (with version 2.0 software or later) and all paging functions are available without the need for additional hardware boxes
  • Second microphone input and GPIO allow one Page Station to serve two locations
  • Dual Ethernet connections support network redundancy
  • May use Power over Ethernet (PoE) or local power supply
  • Rugged, handheld PTT (Push To Talk) microphone with convenient magnetic mount included
  • Q-SYS technical support is available 24/7 – worldwide

Page Station Models

Model Microphone Type* Assignable Buttons PS-1650H PTT Handheld 16 PS-1600H PTT Handheld 4 PS-1650G Gooseneck 16 PS-1600G Gooseneck 4
SPECIFICATIONS Page Station Audio Channel Capacity 2 line inputs, 1 line output Front Panel Controls Paging Keypad: Capacitive touch keypad
Microphone: PTT momentary switch Front Panel Indicators Talk, Ready, Busy: Bi-color LEDs (red/green)
Keypad button activity: Green LEDs
LCD: 240 x 64 monochrome graphics display Front Panel Connectors RJ45 microphone connector Rear Panel Connectors Q-SYS Network LAN A: RJ45 1000 Mbps only
Q-SYS Network LAN B: RJ45 1000 Mbps only
DC power 24V inlet: 2-pin Euro receptacle
Line input: 3-pin Euro receptacle
Line output: 3-pin Euro receptacle
GPIO: 6-pin Euro receptacle Line Voltage Requirements IEEE 802.3af power over Ethernet (POE) or 24V DC Dimensions (HWD) inches 10.37 x 8.3 x 1.5 Dimensions (HWD) mm 264 x 211 x 38 Accessories Included Hardware user manual, connector ship kit,
warranty card and PTT handheld microphone Line Input Dynamic Range
   Unweighted
   A-weighted > 115 dB
> 118 dB Distortion
(20 Hz – 20 kHz, all sensitivities)
    4 dBu (max)
   2 dB below clip

< 0.009% THD N
< 0.009% THD N Crosstalk (20 Hz – 20 kHz)
   Inter-channel (max)
   Inter-channel (typical)
   Intra-channel (max)
   Intra-channel (typical) > 75 dB
> 90 dB
> 85 dB
> 100 dB Frequency Response
   20 Hz – 20 kHz (max)
   20 Hz – 20 kHz (typical) ± 0.5 dB
± 0.2 dB Input Impedance
   Balanced (nominal)
   Unbalanced (nominal) 10k ohms
10k ohms Common Mode Rejection
   20 Hz – 20 kHz (max)
   20 Hz – 20 kHz (typical) > 54 dB
> 60 dB Input Sensitivities Vrms: 1.5, 3, 9, 18
dBu: 5.7, 11.8, 21.3, 27.3
dBv: 3.5, 9.5, 19.1, 25.1 Line Output Dynamic Range
   Unweighted
   A-weighted > 112 dB
> 115 dB Crosstalk (20 Hz – 20 kHz)
   Inter-channel (max)
   Inter-channel (typical)
   Intra-channel (max)
   Intra-channel (typical) > 75 dB
> 90 dB
> 85 dB
> 100 dB Mute Infinite attenuation

Additional information
Weight 5 g
Dimensions 15 × 15 × 20 mm
