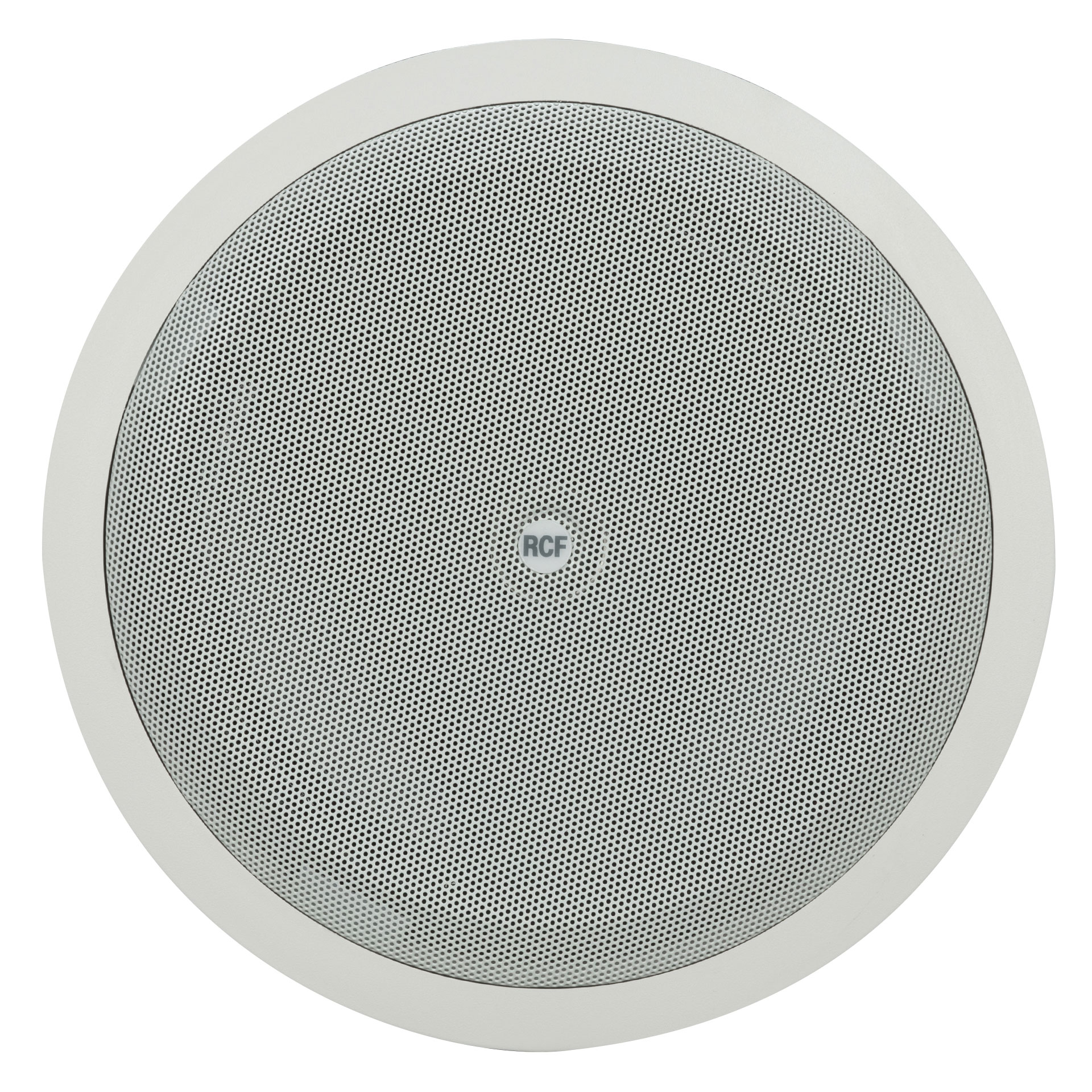

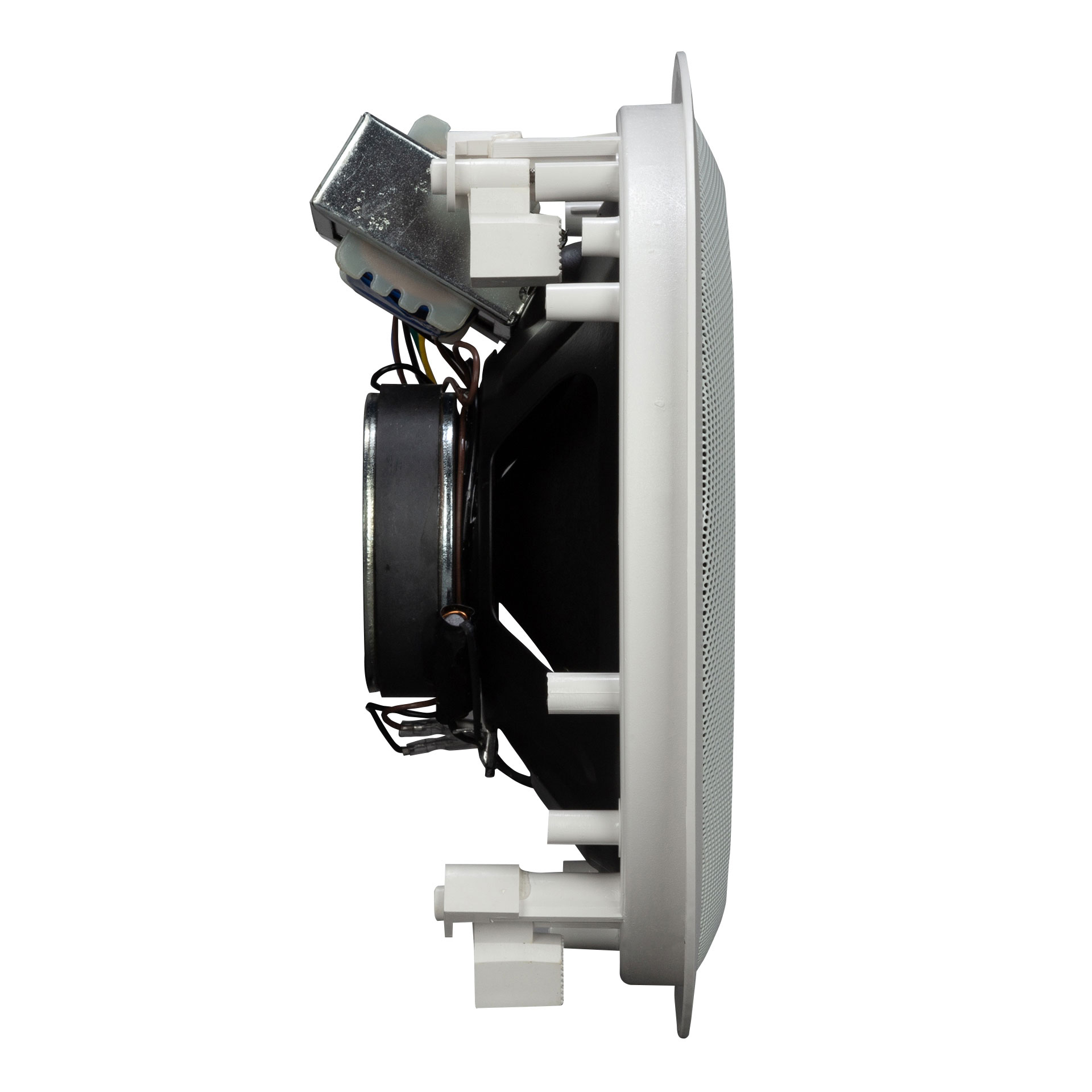

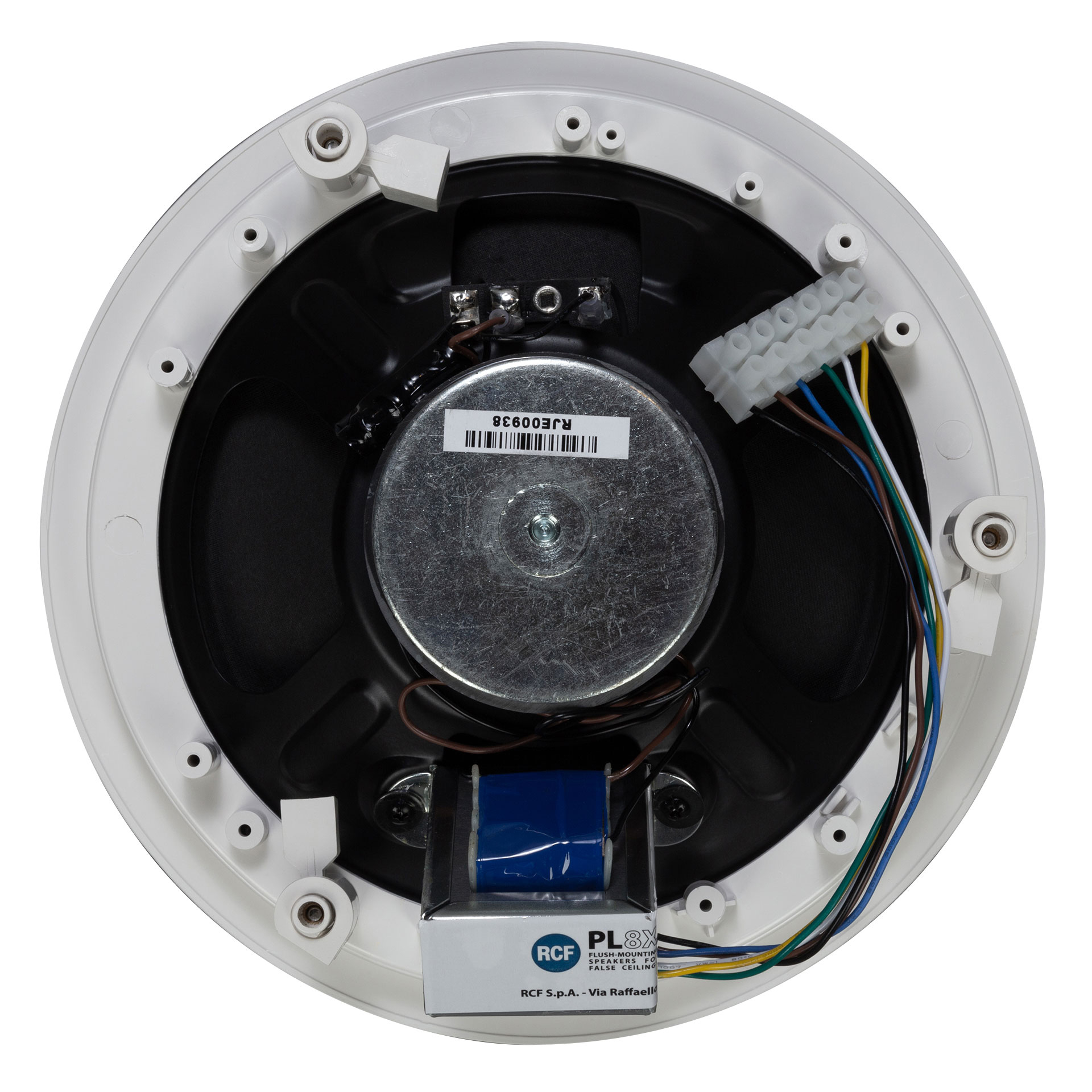

RCF PL 8X 6″ Coaxial Ceiling Speaker

R1,488.50 (incl. VAT)

Found this product at a lower price?

6″ Coaxial Ceiling Speaker

Description

PL 8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 8” coaxial woofer with a 1” tweeter placed on a bridge support. PL 8X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Features

Woofer da 6″ con tweeter da 1″
Power selectable (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
93 dB sensitivity
Colour white RAL 9003 and black RAL 9005
Plastic frame UL 94 V0, steel grille

Specs

Acoustical specifications

FREQUENCY RESPONSE (-10DB): 60 Hz ÷ 20000 Hz
MAX SPL @ 1M: 109 dB
COVERAGE ANGLE: 80°
SYSTEM SENSITIVITY: 93 dB

Power section

POWER HANDLING: 20 W RMS
PEAK POWER HANDLING: 80 W PEAK
RECOMMENDED AMPLIFIER: 40 W

Transducers

DOME TWEETER: 1.0”
WOOFER: 8”

Input/Output section

INPUT CONNECTORS: Screw Terminals
OUTPUT CONNECTORS: Screw Terminals
CONSTANT VOLTAGE TRANSFORMER: 70/100 V
POWER SELECTION 1 (100 V): 20 W – 500 ohm
POWER SELECTION 2 (100 V): 10 W – 1000 ohm
POWER SELECTION 3 (100 V): 5 W – 2000 ohm
POWER SELECTION 4 (100 V): 2.5 W – 4000 ohm

Standard compliance

IP PROTECTION GRADE: IP 44
CE MARKING: Yes

Physical specifications

COLOR: Black – RAL 9005
HARDWARE: Plastic Material
GRILLE: Steel
CABINET/CASE MATERIAL: Plastic

Size

DEPTH: 88 mm / 3.46 inches
RECESSED DEPTH: 80 mm / 3.15 inches
DIAMETER: 247 mm / 9.72 inches
WEIGHT: 1.23 kg / 2.71 lbs
CUT OUT DIAMETER: 224 mm / 8.82 inches

Shipping Information

PACKAGE WEIGHT: 2.09 kg / 4.61 lbs
PACKAGE DEPTH: 130 mm / 5.12 inches
PACKAGE WIDTH: 280 mm / 11.02 inches
PACKAGE HEIGHT: 280 mm / 11.02 inches

Additional information

Weight	2 g
Dimensions	28 × 28 × 13 mm
Brand	RCF
