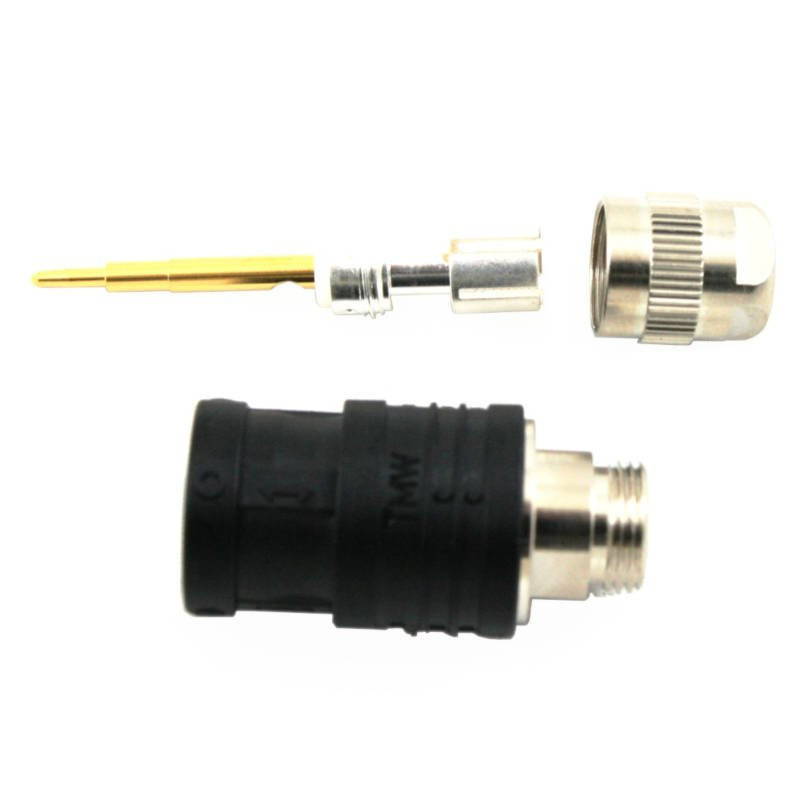

MOGAMI BNC-3200 50 Ohm BNC Plug

MOGAMI BNC-3200 50 Ohm BNC Plug

Call For Price

Found this product at a lower price?
  Check Stock & Price

BNC Plug

SKU: BNC-3200 Category:
Description

Description

CONSTRUCTION

Part No.
BNC-3200 BNC-3200C BNC-2964-  BNC-2964C- 
Type SOLDER TYPE CRIMP TYPE SOLDER TYPE CRIMP TYPE
Coupling Ring Nylon W/ Glass Fiber Nylon W/ Glass Fiber
Rotary Shell Nickel Plated Phosphor Bronze Nickel Plated Phosphor Bronze
Shell Nickel Plated Brass Nickel Plated Brass
Clamp Shell Silver Plated Brass – Silver Plated Brass –
Center Terminal Gold Plated Brass Gold Plated Brass
Insulation PTFE PTFE
Ferule – Tin Plated Copper – Tin Plated Copper
Spacer – Silver Plated Brass –
Nut Nickel Plated Brass – Nickel Plated Brass –
Sleeve – Chloroprene –

CHARACTERISTICS

Part No.
BNC-3200 BNC-3200C BNC-2964-€ BNC-2964C-€
Type SOLDER TYPE CRIMP TYPE SOLDER TYPE CRIMP TYPE
Voltage Rating AC 500Vrms AC 500Vrms
Dielectric Withstanding Voltage AC 1,500Vrms at sea level AC 1,500Vrms at sea level
Insulation Resistance 1,000 MΩ Min. at DC 500V 1,000 MΩ Min. at DC 500V
Contact Resistance 5mΩ Max. at DC 1A 5mΩ Max. at DC 1A
Characteristic Impedance 50Ω 75Ω
V.S.W.R. 1.2 Max. DC -1GHz 1.2 Max. DC -1GHz
Minimum Acceptable Radius of Curvature of Used Cable 10mm (0.4″) 10mm (0.4″)
Cable Retention 196 N (44 lbf) Min. 117 N (26 lbf) Min. 147 N (33 lbf) Min. 98 N (22 lbf) Min.
Withstanding Vibration 98m/S² (10G), 10 – 500Hz (JIS C5402 6.1) 98m/S² (10G), 10 – 500Hz (JIS C5402 6.1)
Connector Durability 1,000 times Min. 1,000 times Min.
Applicable Temperature -40°C – 85°C (85%RH Max.) -40°C – 85°C (85%RH Max.)
Standard IEC 169-8/ MIL-C-39012 IEC 169-8/ MIL-C-39012



Additional information
Weight 1 g
Dimensions 10 × 10 × 2 mm
