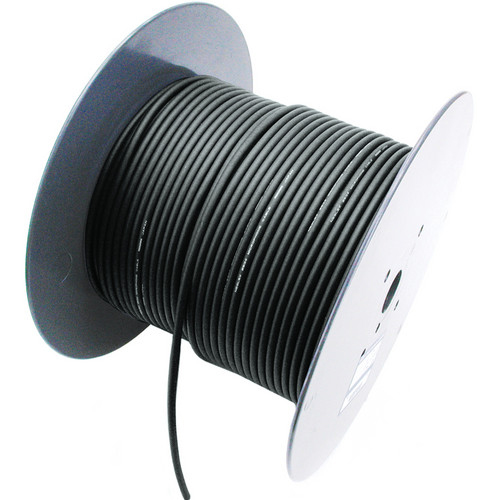

MOGAMI W3163 AES/EBU Digital Audio Multicore Cable

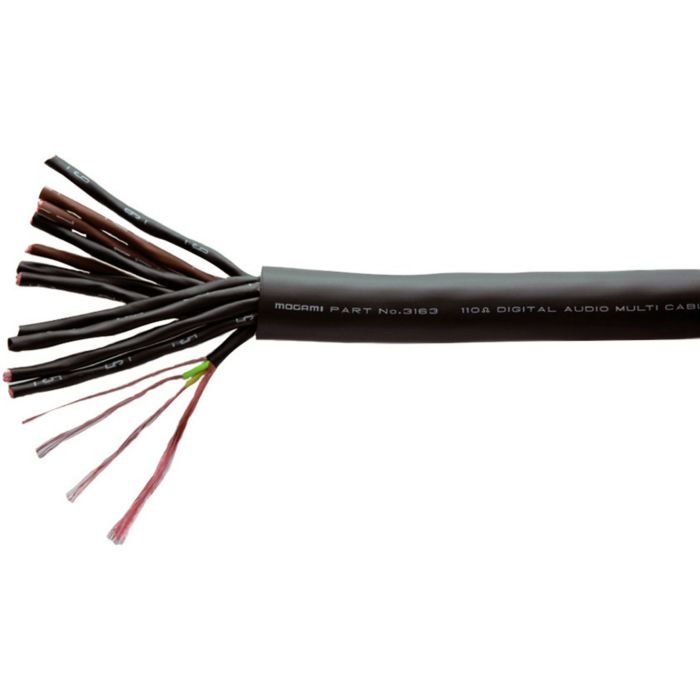

MOGAMI W3163 AES/EBU Digital Audio Multicore Cable - Image 2

MOGAMI W3163 AES/EBU Digital Audio Multicore Cable

Call For Price

Found this product at a lower price?
  Check Stock & Price

AES/EBU Digital Audio Multicore Cable

SKU: W3163 Category:
Description

Description

The Mogami W3163 AES/EBU Digital Audio Multicore Cable (328’/Black) is flexible and its compact design makes this multicore 110 Ω AES/EBU digital audio snake cable easy for wiring, installation, and handling. Because of employed cellular PP (polypropylene) insulation material, regardless of its compact overall diameter, a larger conductor size is used, which results in lower attenuation.

Features

  • Easy wiring assisted by the same conductor size drain wire
  • Length 328′ (100 m) No. of Cores 12 Overall Diameter 0.669″ (17.0 mm) Nominal Jacket Thickness Approximately 0.063″ (1.6 mm) Conductor 7/0.20 A (0.22 mm²) #24 AWG (7× #32 AWG) Insulation Ø0.053″ (Ø1.35 mm) CPP (Cellular polypropylene) Drain Wire 7/0.20 A Shield Approximately 79/0.10 A served (spiral) shield Jacket Ø0.126″ (Ø3.2 mm) flexible PVC DC Resistance At 20°C: Inner Pair Conductor: 0.0247 Ω/ft (0.081 Ω/m)
    Shield: 0.0073 Ω/ft (0.024 Ω/m) Capacitance At 1 kHz, 68°F (20°C) (partial capacitance value): 14 pF/ft (46 pF/m) Inductance 0.24 µH/ft (0.8 µH/m) Impedance 110 Ω ±10% Attenuation 0.020 dB/ft (0.065 dB/m) Phase 0.17 rad/m Noise Electrostatic: 5.0 mV maximum
    Electromagnetic: At 10 kHz: 2.0 mV maximum Microphonics 60 mV Voltage Breakdown Must withstand at 500 VDC / 15 seconds Insulation Resistance At 125 VDC, 20°C: 100,000 MΩ / × m Minimum Tensile Strength 303 N of one pair (26°C, 65% RH) Emigration Non-emigrant to ABS resin Temperature -4 to 158°F (-20 to 70°C ) Standard AES3-100X(ANSI S.4.40-199X)
    EBU Rech. 3250-E
    CEI/IEC 958/CCIR Rec. 647
    UL13 CL2X 60°C / UL20002 AWM 30V 60°C VW-1 Weight 66.13 lb (30 kg) per 328′ (100 m)
Additional information
Weight 30 g
Dimensions 90 × 90 × 38 mm
Hybrid Condensers
Brand

MOGAMI
