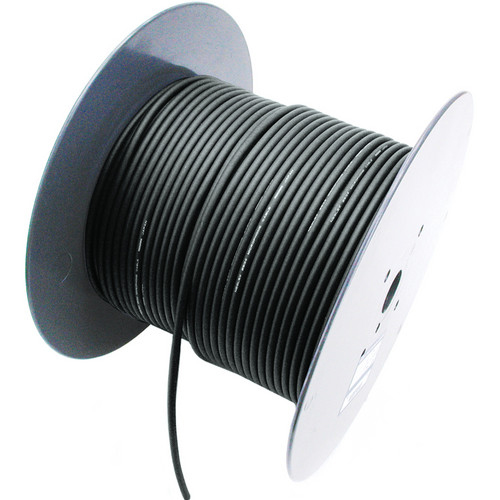

MOGAMI W3162 AES/EBU Digital Audio Multicore Cable

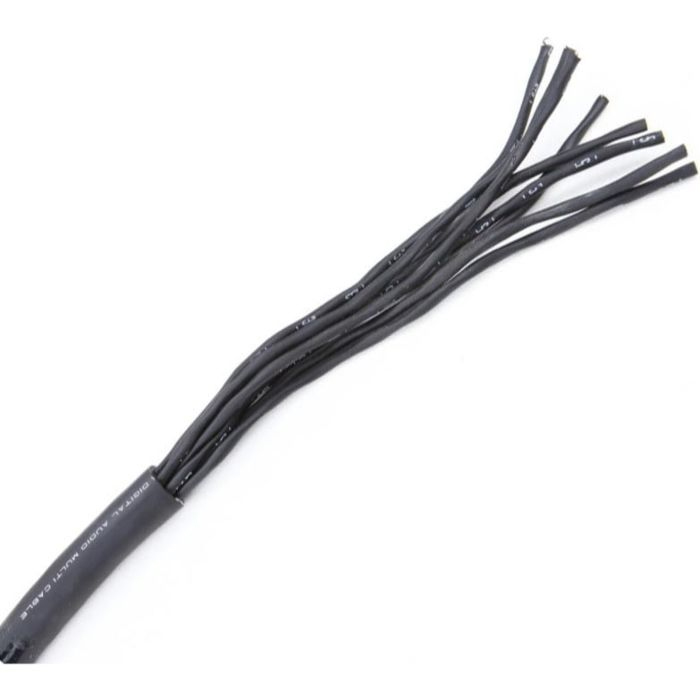

MOGAMI W3162 AES/EBU Digital Audio Multicore Cable - Image 2

MOGAMI W3162 AES/EBU Digital Audio Multicore Cable

Call For Price

Found this product at a lower price?
  Check Stock & Price

AES/EBU Digital Audio Multicore Cable

SKU: W3162 Category:
Description

Description

The Mogami W3162 AES/EBU Digital Audio Multicore Cable (328’/Black) is flexible and its compact design makes this multicore 110 Ω AES/EBU digital audio snake cable easy for wiring, installation, and handling. Because of employed cellular PP (polypropylene) insulation material, regardless of its compact overall diameter, a larger conductor size is used, which results in lower attenuation.

Features

  • Easy cable core identification system, such as numbered cable core
  • Easy wiring assisted by the same conductor size drain wire
  • Flexible and good low temperature characteristic

Specs

Length 328′ (100 m)
No. of Cores 8
Overall Diameter 0.543″ (13.8 mm)
Nominal Jacket Thickness Approximately 0.055″ (1.4 mm)
Conductor 7/0.20 A (0.22 mm²) #24 AWG (7× #32 AWG)
Insulation Ø0.053″ (Ø1.35 mm) CPP (Cellular polypropylene)
Drain Wire 7/0.20 A
Shield Approximately 79/0.10 A served (spiral) shield
Jacket Ø0.126″ (Ø3.2 mm) flexible PVC
DC Resistance At 20°C: Inner Pair Conductor: 0.0247 Ω/ft (0.081 Ω/m)
Shield: 0.0073 Ω/ft (0.024 Ω/m)
Capacitance At 1 kHz, 68°F (20°C) (partial capacitance value): 14 pF/ft (46 pF/m)
Inductance 0.24 µH/ft (0.8 µH/m)
Impedance 110 Ω ±10%
Attenuation 0.020 dB/ft (0.065 dB/m)
Phase 0.17 rad/m
Noise Electrostatic: 5.0 mV maximum
Electromagnetic: At 10 kHz: 2.0 mV maximum
Microphonics 60 mV
Voltage Breakdown Must withstand at 500 VDC / 15 seconds
Insulation Resistance At 125 VDC, 20°C: 100,000 MΩ / × m Minimum
Tensile Strength 303 N of one pair (26°C, 65% RH)
Emigration Non-emigrant to ABS resin
Temperature -4 to 158°F (-20 to 70°C )
Standard AES3-100X(ANSI S.4.40-199X)
EBU Rech. 3250-E
CEI/IEC 958/CCIR Rec. 647
UL13 CL2X 60°C / UL20002 AWM 30V 60°C VW-1
Weight 50.70 lb (23 kg) per 328′ (100 m)
Additional information
Weight 23 g
Dimensions 70 × 70 × 40 mm
Hybrid Condensers
Brand

MOGAMI
