Lamp-Free and Eco-Friendly
The DU6693Z features a WUXGA resolution, an amazing 7,000 ANSI Lumens brightness and 10,000:1 contrast ratio for a clear and bright projection. The projector is equipped with a laser light source which offers up to 20,000 hours of operation which makes it the perfect solution for large venues that need power, flexibility and a durable solution.
Key features
- DLP ® technology for vibrant and rich picture quality
- 7,000 ANSI lumens of brightness, WUXGA resolution, and 10,000:1 contrast ratio for clear, crisp and bright projection
- Long lasting laser light source for constant brightness level and color performance for up to 20,000 hours operations
- Silent large venue projector at only 32dB thanks to its outstanding thermal management
- Airtight sealed optical engine and optimized system layout ensure the high-efficiency cooling performance
- Installation flexibility is ensured with 8 optional lenses from 0.38:1 to 8.26:1 throw ratio range
- Motorized and wide lens shift range allows easy placement of the projector without distorting the image.
- Lens Position Memory to facilitate set up
- Image adjustment is made easy with 4 corner correction and keystone correction
- HDBaseT interface ensure robust long signal transmission up to 100 meters
- Designed for heavy-duty 24/7 operations with 360 ° installation angle flexibility
- Easy projector monitor and control over network
SPECS
| Native Resolution | WUXGA (1920 x 1200) |
| Brightness | 7000 ANSI Lumens |
| Contrast Ratio | 10,000:1 |
| Max. Supported Resolution | WUXGA (1920 x 1200) @60Hz |
| Native Aspect Ratio | 16:10 |
| Lamp Life and Type | Lamp free design. Laser light source last up to 20,000 hours |
| Display Type | Single chip DLP ® Technology by Texas Instruments |
| Chip Size | 0.67" DMD |
| Throw Ratio | 8 optional lenses from 0.38:1 to 5.31-8.26:1 throw ratio range |
| Image Size (Diagonal) | depending on lens selection |
| Projection Distance | depending on lens selection |
| Zoom Ratio | Motorized Zoom & Focus |
| Lens Shift Range | Vertical: 64%, -33%; Horizontal: 24%, -14% |
| Offset | Motorized Lens Shift |
| Keystone Correction | Vertical: /-40 °; Horizontal: /-60 ° |
| Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) |

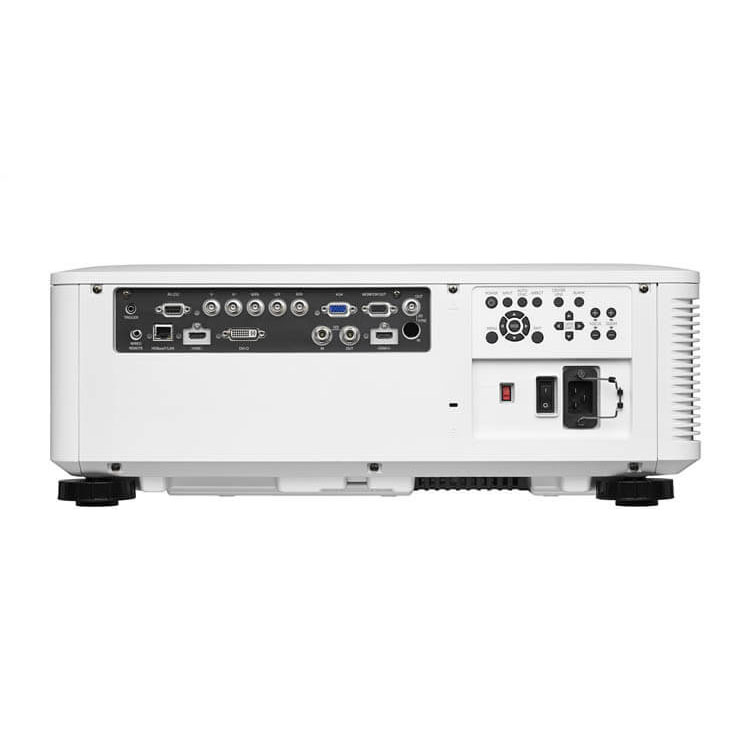

| I/O Connection Ports | VGA-In (15pin D-Sub), HDMI Number of Ports , Display Port, DVI-D, Component (5 BNC) (RGBHV) , VGA-Out (15pin D-Sub), RJ45 (1: HDBaseT/LAN), 12v Trigger (x2), RS-232, 3D-Sync (x2: In and Out), USB B (Service), Remote Jack(wire remote) |
| Dimensions (W x D x H) | 500 x 580 x 205 mm |
| Weight | 27 kg |
| Noise Level | 32dB (Normal Mode) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 675W (Eco. Mode), 850W (Normal Mode), <0.5W (Standby) |
| 3D Ready(DLP link, PC Video) | Yes |
| Remote Control P/N | 5041848301 |
| Standard Accessories | VGA Cable, User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
| Optional Accessories | Remote Control P/N: 5041848301 |
| Warranty | Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first) |
| UPC Code | DU6693Z-BK: 813097023490 |
