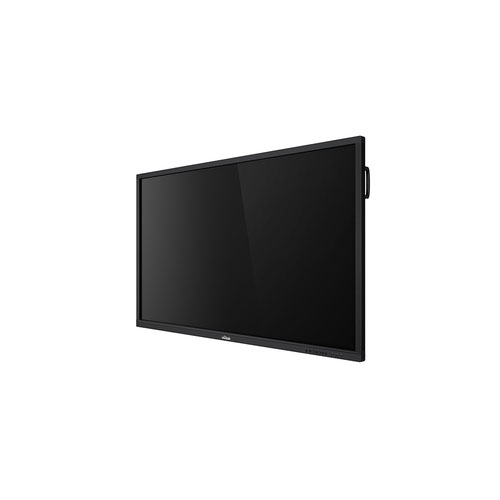

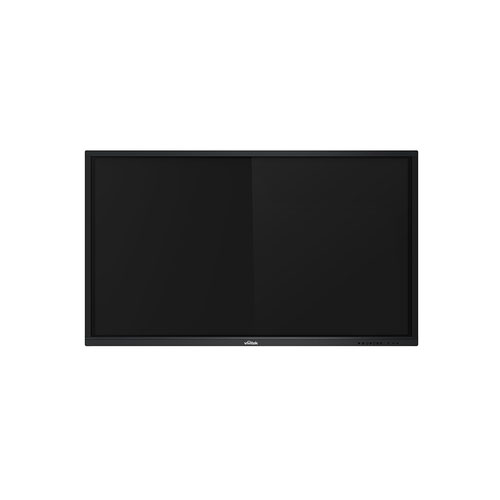

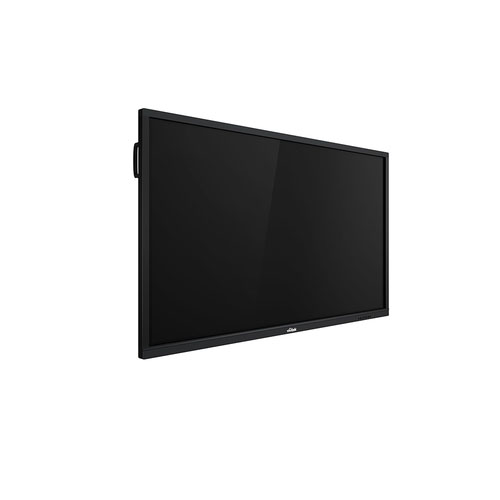

NOVO TOUCH
Transform your conference roominto a true collaborative space
NovoTouch is a powerful team collaboration solution that’s ideal for conference rooms, meeting areas and corporate lobbies. Equipped with Vivitek’s NovoPro, a BYOD collaboration system, NovoTouch offers an advanced approach to group work in an all-in-one display. Featuring digital annotation and wireless capabilities, NovoTouch seamlessly connects users to one display, using technology that allows ideas to flow naturally.
FEATURES
Interactive & Dynamic Presentations
- Native UHD 4K (3,840 x 2,160) resolution
- Available in 98", 86" and 75" display sizes
- Manipulate the content with up to 20-points touch
- LED backlight technology provides a longer life of 30,000 hours, and lower energy costs
- Anti-glare surface brings impressive screen visibility and readability
- Built-in rich connectivity design supports multi digital sources
Collaborative NovoConnect Solution
- Connect up to 64 users simultaneously, and allow 4 people to present on one display to facilitate large group work
- Cross platform mirroring from any device to bring a cable free work space for discussion and sharing
- Dual-network with ultra-secured networks support for separate or parallel wired and wireless connection
- Moderation and On-screen annotation function keeps you in control of the meeting and collaborate in real time
| Display | Panel Size | 75" | 86" | 98" | |
| Contrast Ratio (Typical) | 1,200:1 | 1,200:1 | 1,300:1 | ||
| Viewing Angle (H/V) | 178o/178o | 178o/178o | 178o/178o | ||
| Response Time (MS) | 8ms (Typ) | 8ms (Typ) | 5ms (Typ) | ||
| Refresh Rate (Hz) | 60Hz | 60Hz | 120Hz | ||
| Viewable Area (WxH) | 1,649.66mm x 927.93mm | 1,895.04mm x 1,065.96mm | 2,158.848mm x 1,214.352mm | ||
| Display Color (Bit) | 1.06 billion (10-bit) | 1.06 billion (10-bit) | 1.06 billion (10-bit) | ||
| Interactivity | Touch Points | Writing | 10 Points | 10 Points | 5 Points |
| Touch | 20 Points | 20 Points | 10 Points | ||
| Response Time | <15ms | <20ms | <20ms | ||
| Surface Protection | 4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness) | 4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness) | 4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness) | ||
| H/W Solution | Yes | Yes | Yes | ||
| Gestures Supported | Yes (Use palm?hand back to erase/ Slide up from bottom to call out Touch Menu//Two fingers to call out floating toolbar. /Under PC:20 point touch, 10 point writing. ? Under Android, 10 point touch. 5 point writing) | Yes (Use palm?hand back to erase/ Slide up from bottom to call out Touch Menu//Two fingers to call out floating toolbar. /Under PC:20 point touch, 10 point writing. ? Under Android, 10 point touch. 5 point writing) | Yes (Use palm?hand back to erase/ Slide up from bottom to call out Touch Menu//Two fingers to call out floating toolbar. /Under PC:10 point touch, 5 point writing. ? Under Android, 10 point touch. 5 point writing) | ||
| Operating System | CPU | RK3399, Dual-Core ARM ® Cortex ® A72 and Quad Core ARM ® Cortex ® A53 | RK3399, Dual-Core ARM ® Cortex ® A72 and Quad Core ARM ® Cortex ® A53 | ARM ® Cortex ® A9 Dual Core CPU | |
| RAM | 4GB DDR3 | 4GB DDR3 | 1.5G RAM | ||

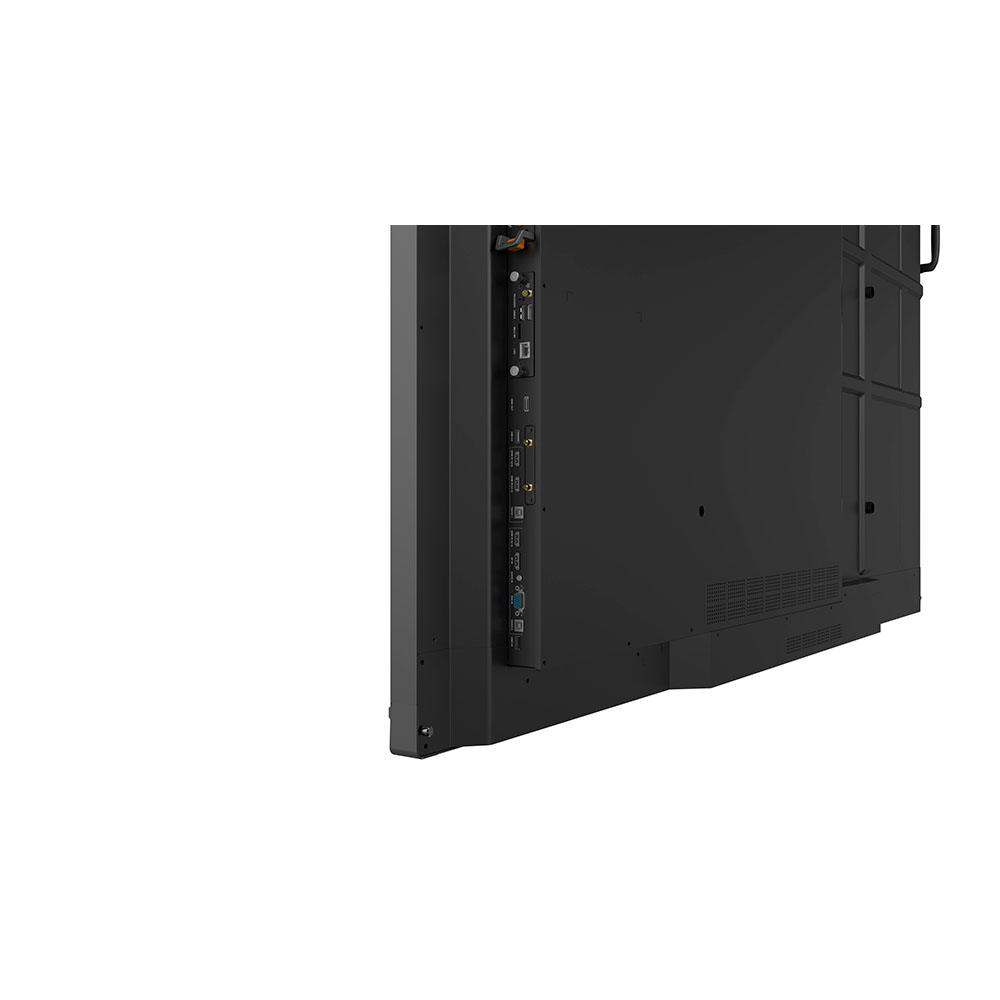

| Connectivity | Out | Display | HDMI-Out (1080P) (x1) | HDMI-Out (1080P) (x1) | VGA-Out (x1) |
| Audio | Audio-Out (3.5mm) (x1), Coaxial-Out (RCA) (x1) | Audio-Out (3.5mm) (x1), Coaxial-Out (RCA) (x1) | Audio-Out (3.5mm) (x1), Coaxial-Out (RCA) (x1) | ||
| Control | RS232 (x1) | RS232 (x1) | RS232 (x1) | ||
| Expansion Modules (OPS) | Windows PC Module (Slot 2) | Optional (120pin) | Optional (120pin) | Optional (48pin) | |
| Audio | Power | Consumption | 400W | 500W | 650W (with PC module) |
| Plug Type | US/ EU/ UK/ AU Optional | US/ EU/ UK/ AU Optional | US/ EU/ UK/ AU Optional | ||
| Operating | Temperature | 0 °C – 40 °C (32 °F – 104 °F) | 0 °C – 40 °C (32 °F – 104 °F) | 0 °C – 40 °C (32 °F – 104 °F) | |
| Humidity | 10% – 90% | 10% – 90% | 10% – 90% | ||
| Altitude | Below 5,000m (16,400ft) | Below 5,000m (16,400ft) | Below 5,000m (16,400ft) | ||
| Dimensions (L x H x D) (Estimated) |
Product | 1,762 x 1,034 x 100mm (69.4 ” x 40.7 ” x 3.9 “) | 1,988 x 1,178 x 99.6mm (78.3" x 46.4 ” x 3.9 “) | 2,257 x 1,335 x 118mm (88.8" x 52.6 ” x 4.6 “) | |
| Package | 1,913 x 1,225 x 280mm (75.3" x 48.2 “x11 “) | 2,211 x 1,370 x 280mm (87" x 53.9 ” x 11 “) | 2,450 x 1,555 x 385mm (96.4" x 61.2 ” x 15.1 “) | ||
| VESA Mounting (FPMPMI) | 4 – M8 × 25mm, 800 x 400mm (31.5 ” x 15.7 “) | 4 – M8 × 25mm, 800 x 600mm (31.5 ” x 23.6 “) | 4 – M8 × 25mm, 800 x 600mm (31.5 x 23.6 “) | ||
| Available Color | Black | Black | Black | ||
| Standard | AC Power Cord, VGA Cable, USB Cable, Audio Cable, Stylus (x3), Wall Mount Kit, Remote Control, Documentation Kit | AC Power Cord, VGA Cable, USB Cable, Audio Cable, Stylus (x3), Remote Control, Wall Mount Kit, Documentation Kit | AC Power Cord, VGA Cable, USB Cable, Audio Cable, Stylus (x3), Remote Control, Wall Mount Kit, Documentation Kit |
“
