Description
- Step Up To 32-Bit Float
With 32-bit float and dual AD converters the H6essential captures huge dynamic range. This gives creators the ability to record perfect audio, clip-free every time. - Six Perfect Tracks
The 4 XLR/TRS combo inputs feature ultra-clean Zoom preamps, and the included X/Y microphones can capture up to a booming 135 dB SPL, equivalent to a jet taking off. - Next Generation 3.0 Capsule System
The H6essential’s 3.0 capsule system has been updated to support 32-bit float and gives creators more options to use the right mic for their recording. - Remove The Mics
When the X/Y mic is not needed, detach the capsule and use the included cap for a low profile setup. - Record And Stream
Use the USB-C port to connect to PC, Mac, iOS, and Android device to use the H6essential as a 32-bit float interface while simultaneously recording all 6 tracks to an SD card. - Waveform Display

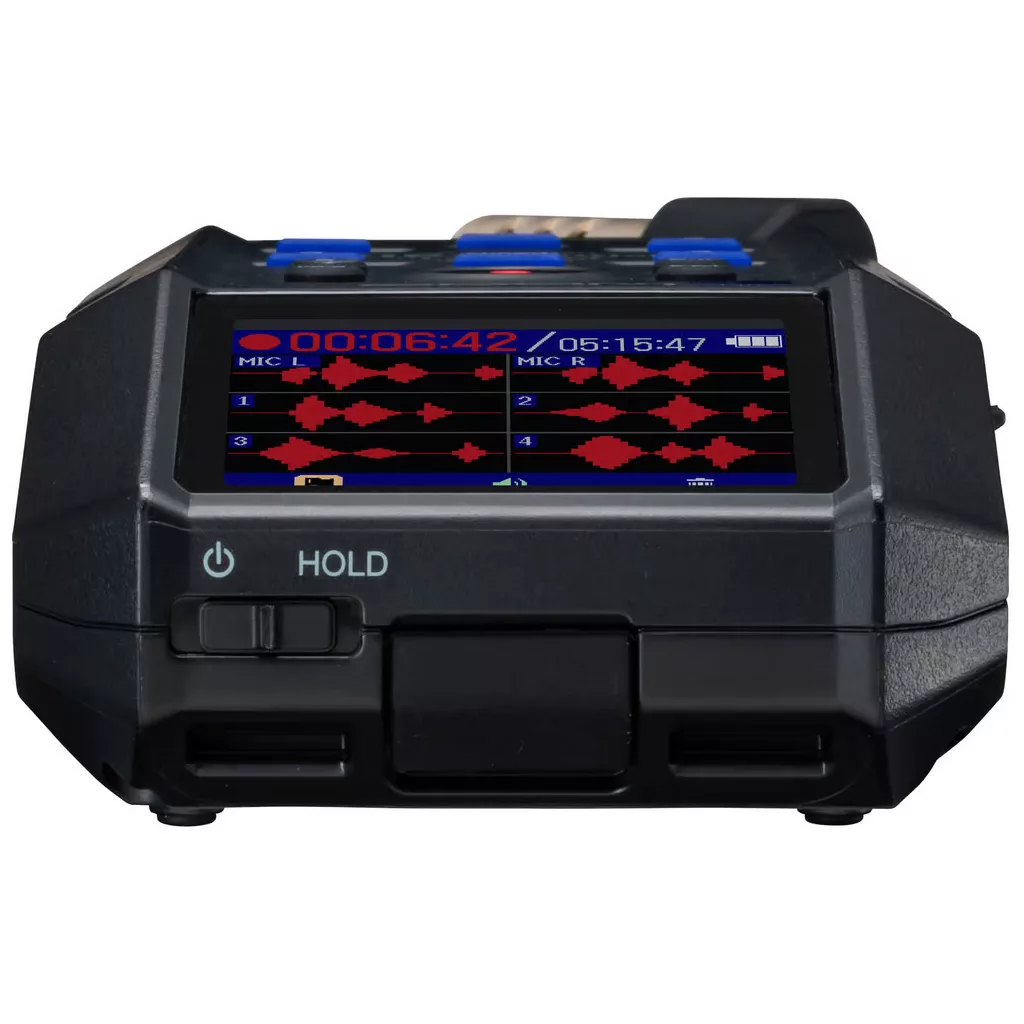

The H6essential has a waveform display so you can see your audio as it records. - Built-In Mixer
For full control of your mix, hit the ‘Mixer’ button and quickly adjust your levels. - Pair With Your iOS Device
Use the BTA-1* Bluetooth Adapter to pair with your iOS device to remotely hit record, adjust your mix, view your waveforms, and change settings.
Specifications
INPUT AND OUTPUT CHANNELS
| Inputs | Mic capsule | 1 |
|---|---|---|
| MIC/LINE (mono) | 4 | |
| Outputs | LINE OUT | 1 |
| Headphones | 1 | |
| Built-in speaker (mono) | 1 | |
INPUTS
| XY mic: XYH-6e | 90º XY stereo format | |
|---|---|---|
| Directionality | Unidirectional | |
| Sensitivity | −42dB/1Pa at 1kHz | |
| Maximum sound pressure input | 135 dB SPL | |
| MIC/LINE (mono) | Connectors | 4 XLR/TRS combo jacks |
| (XLR:2 HOT TRS:TIP HOT) | ||
| Input gain | Adjustment unnecessary (dual A/D converter circuits used) | |
| Input impedance | MIC: 3.8 kΩ or more | |
| LINE: 39 kΩ or more | ||
| Maximum input level | MIC: +4 dBu | |
| LINE: +24 dBu | ||
| Phantom power | +48 V | |
| Channel total 32 mA or less | ||
| Equivalent input noise | MIC: -120 dBu or less(IHF-A) @150 Ω input | |
| LINE: -95 dBu or less(IHF-A) @600 Ω input | ||
OUTPUTS
| LINE OUT | Connector | Stereo mini jack |
|---|---|---|
| Maximum output level | +1 dBu | |
| Output impedance | 110 Ω or less | |
| Headphones | Connector | Stereo mini jack |
| Maximum output level | 20 mW + 20 mW(when 32 Ω load) | |
| Output impedance | 10 Ω or less | |
| Built-in speaker | Type | 20 mm x 30mm elliptical dynamic speaker |
| Effective maximum output | 250mW | |
RECORDER
| Maximum simultaneous recording tracks | 8 |
|---|---|
| Maximum simultaneous playback tracks | 6 |
| Recording formats | WAV |
| 44.1/48/96 kHz, | |
| 32-bit float mono/stereo | |
| BWF and iXML formats supported | |
| Recording media | 4-32GB cards compatible with the microSDHC specification |
